Article No. 49883
RECYFIX NC 300, class D 400
Type 010 with ductile iron cover SW 2 x 142/18 mm, KTL-coated, 8-fold bolted, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

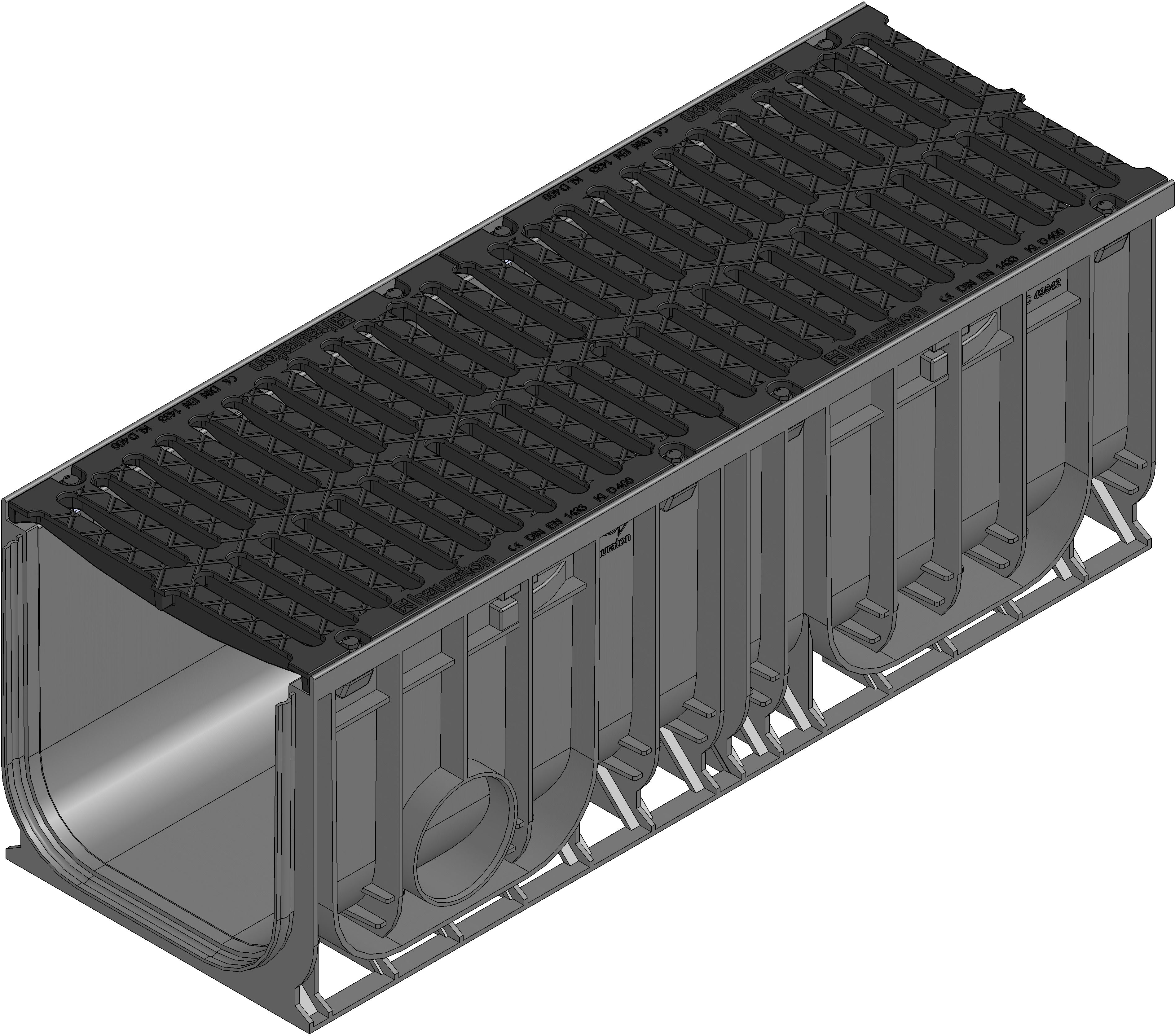

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
49883
Length
1000 mm
Width
362 mm
Height
360 mm
Einlegetiefe
20 mm
Weight
34.65 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
1293.0 cm²/m
Nominal size
300
Internal channel cross-section
873 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX NC 300 Channel type 010 with ductile iron cover 2x SW 142/18 mm, KTL-coated, cl. D 400, 1 m
Product description
RECYFIX NC 300 type 010 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 160/200, with ductile iron cover 2x SW 142/18 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection, with 8-fold bolting, load class A 15 - D 400 according to EN 1433, LxWxH 1000x362x360 mm, item no. 49883
Packaging unit
9
Declaration of Performance
Tender Texts
Installation example
Concrete class D 400 - E 600,
Asphalt class D 400 - E 600,
Pavement class D 400,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Concrete class C 250 - D 400, as double strand
Asphalt class C 250 - D 400, as double strand
Concrete class E 600,
Installation instructions
