Article No. 12187
RECYFIX NC X 200, class F 900
Type 010 with ductile iron cover 2x SW 94/14 mm, KTL-coated, 8-fold bolting, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

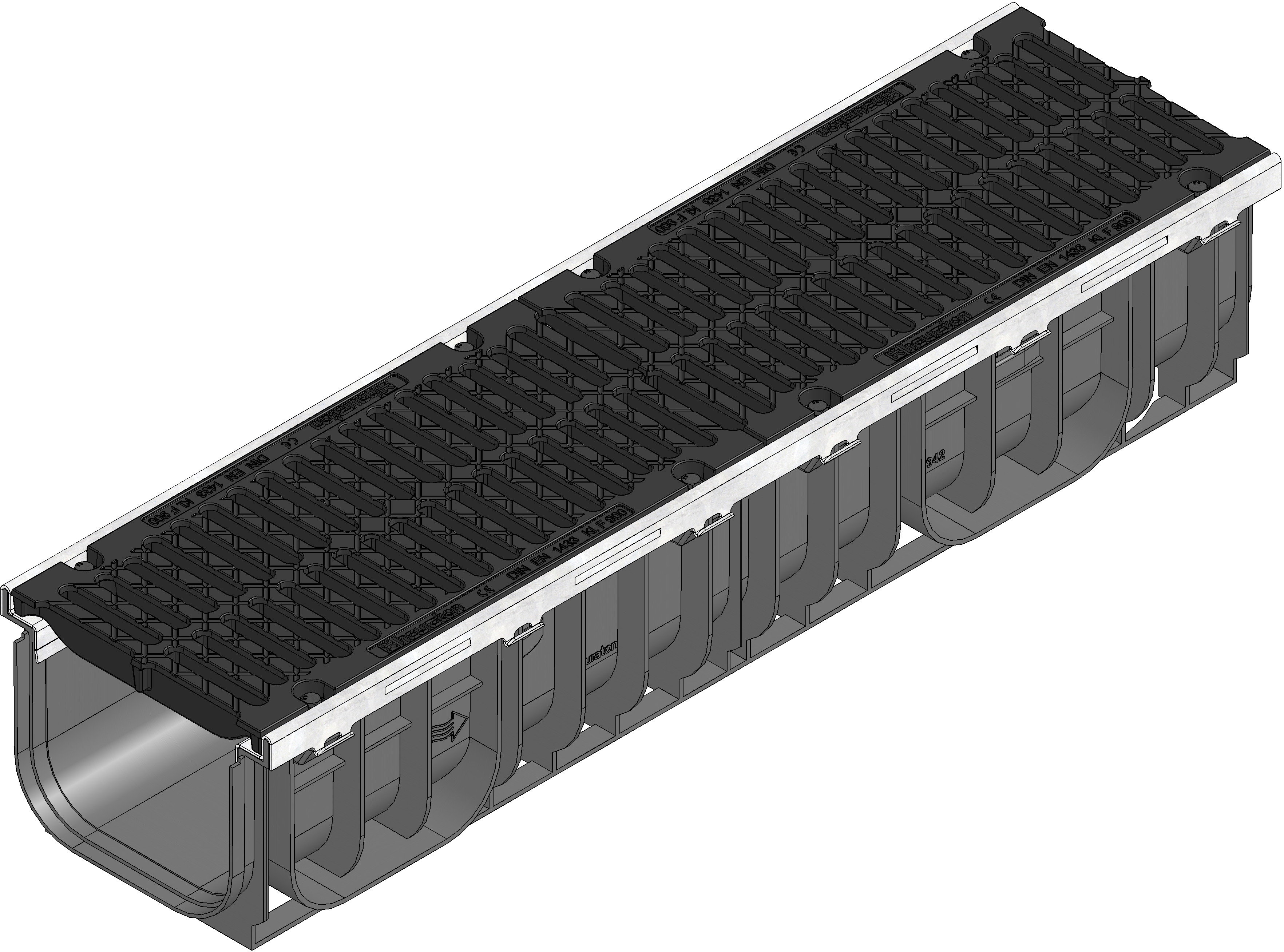

Product image

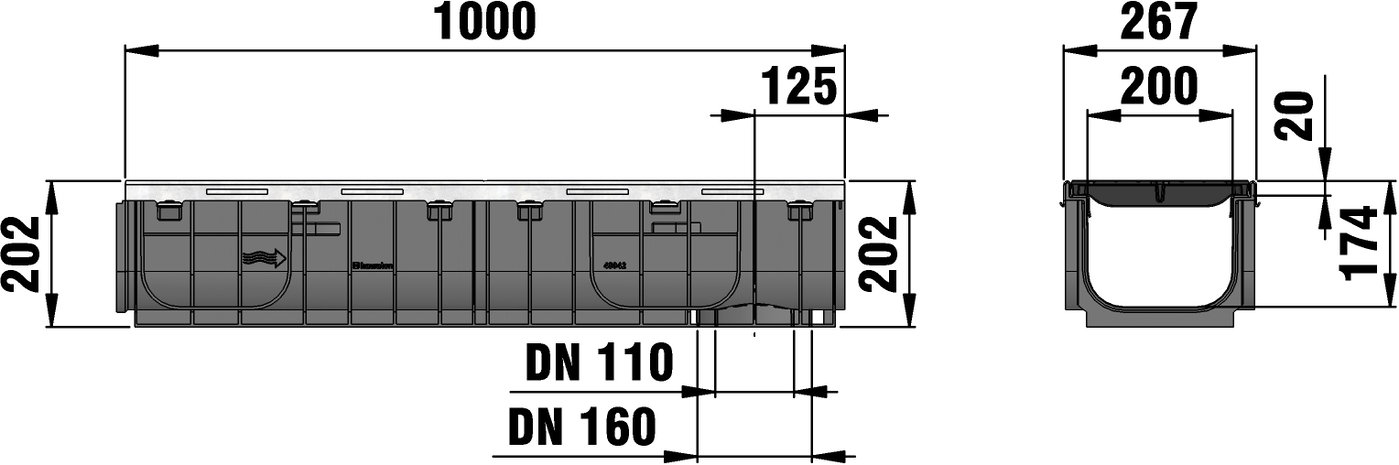

Technical drawing
Drawing (CAD)

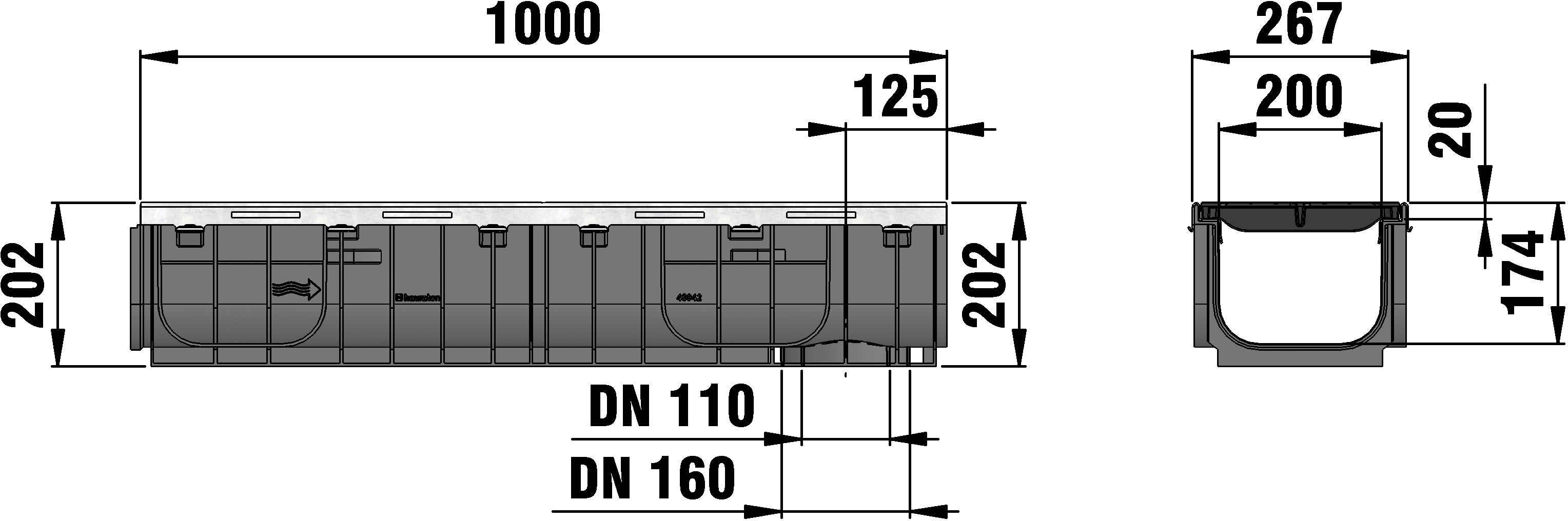

Drawing

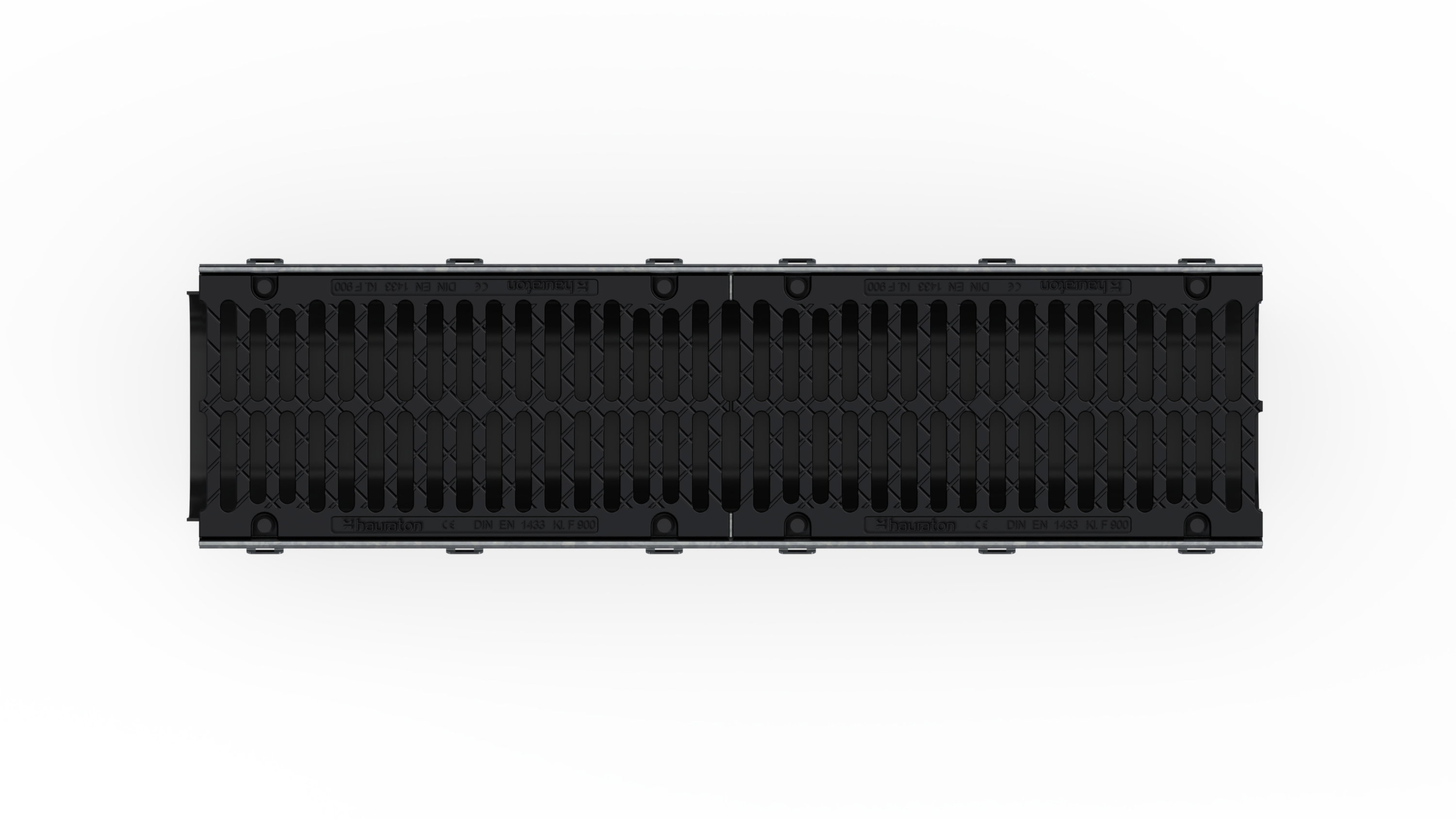

Top view
Data Sheet
Technical information and metrics
Article No.
12187
Length
1000 mm
Width
267 mm
Height
202 mm
Einlegetiefe
21 mm
Weight
27.26 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
897.0 cm²/m
Nominal size
200
Internal channel cross-section
298 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material of angle housing
strip galvanized steel
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX NC X 200 Channel type 010 with edge frames made of galvanised steel and ductile iron cover SW 2x 94/14 mm, KTL-coated, cl. F 900, 8-fold bolting, 1 m
Product description
RECYFIX NC X 200 type 010 - Channel body made of recycled polypropylene, with edge frames made of galvanised steel, with vertical connection possibility DN /OD 110/160, with ductile iron cover 2x SW 94/14 mm, of spheroidal ductile iron EN-GJS-500-7, KTL-coated , with longitudinal slide protection, with 8-fold bolting, load class A 15 - F 900 according to EN 1433, LxWxH 1000x267x202 mm, item no. 12187
Packaging unit
16
Declaration of Performance
Tender Texts
Installation instructions
Installation example
Asphalt class F 900,
Concrete class F 900,
