Article No. 40332

RECYFIX PLUS 100, trafficable

Type 60 with slotted cover SW 80/9 mm, galvanised, locked, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

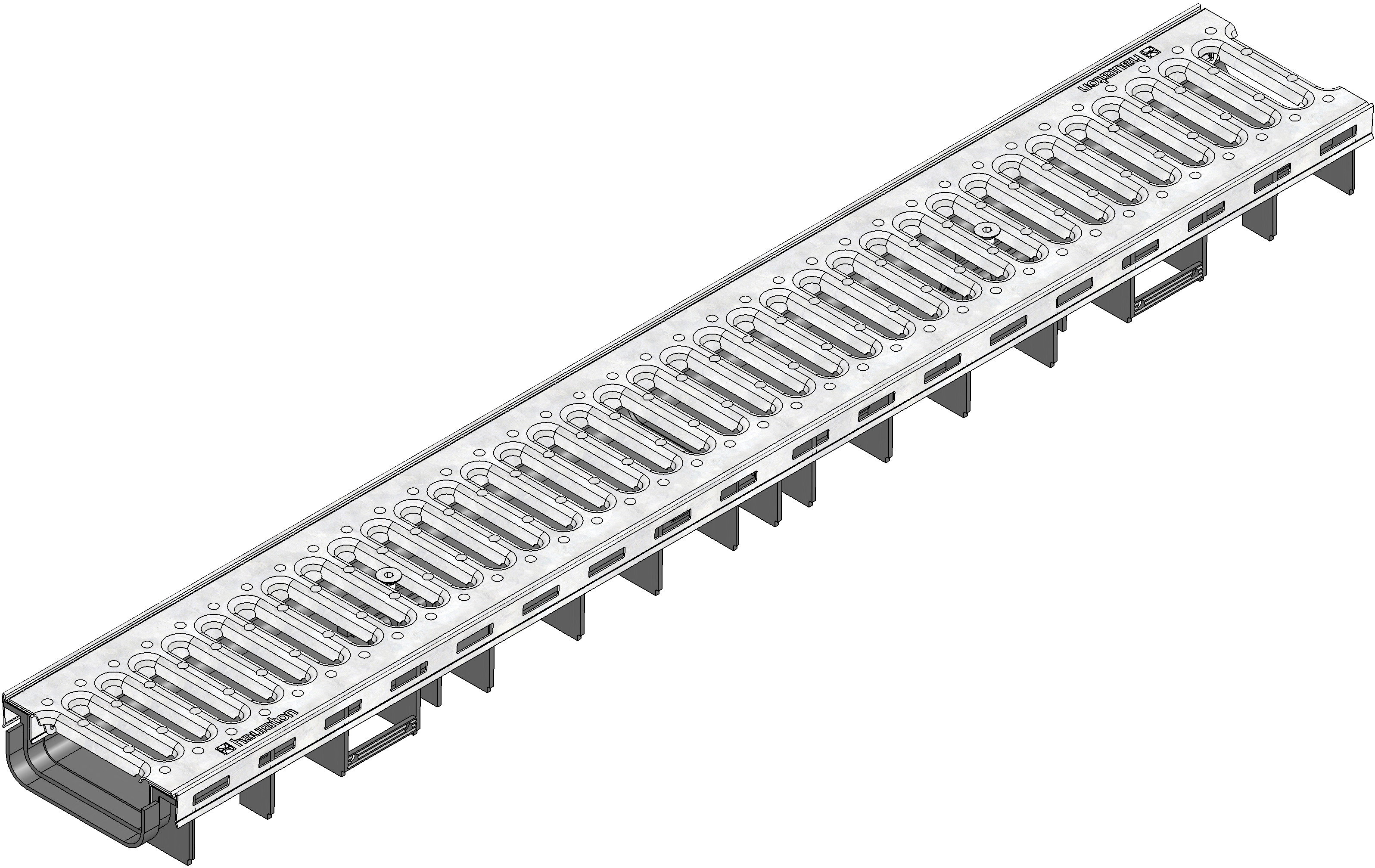

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Top view

Data Sheet

Technical information and metrics
Article No.
40332
Length
1000 mm
Width
147 mm
Height
60 mm
Einlegetiefe
3 mm
Weight
4.00 kg
Material
Galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA), strip galvanized steel
Intake cross-section
266.0 cm²/m
Nominal size
100
Internal channel cross-section
35 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
strip galvanized steel
Material cover
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 100 Channel type 60 with edge frames made of galvanised steel and slotted cover SW 80/9 mm, galvanised, trafficable, locked, 1 m
Product description
RECYFIX PLUS 100 type 60 - Channel body made of recycled polypropylene, with edge frames made of galvanised steel, according to EN 1433, with vertical connection possibility DN/OD 75, with slotted cover SW 80/9 mm, made of galvanised steel, with locking, trafficable, LxWxH 1000x147x60 mm, item no. 40332
Packaging unit
88

Declaration of Performance
Declaration of Performance
Declaration of Performance

Tender Texts

Installation example

Pavement class A 15 - B 125, Type 60, Type 80

Installation example

Pavement class A 15 - B 125, channel height ≥ 150 mm

Installation example

Asphalt class A 15 - C 250, channel height ≥ 150 mm

Installation example

Cemented floor class A 15 - C 250,

Installation example

Concrete class C 250, channel height ≥ 150 mm

Installation example

Pavement class C 250, Type 60, Type 80

Installation example

Pavement class C 250, channel height ≥ 150 mm

Installation example

Asphalt class A 15 - B 125, channel height ≥ 134 mm

Installation example

Asphalt class C 250, channel height ≥ 134 mm

Installation example

Pavement class A 15 - B 125, channel height ≥ 134 mm

Installation example

Concrete class C 250, channel height ≥ 134 mm

Installation example

Pavement class C 250, channel height ≥ 134 mm

Installation example

Installation instructions
Installation instructions
