Article No. 41036
RECYFIX PLUS 150, class B 125
Type 100 with mesh cover MS 30/10 mm, galvanised, locked, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

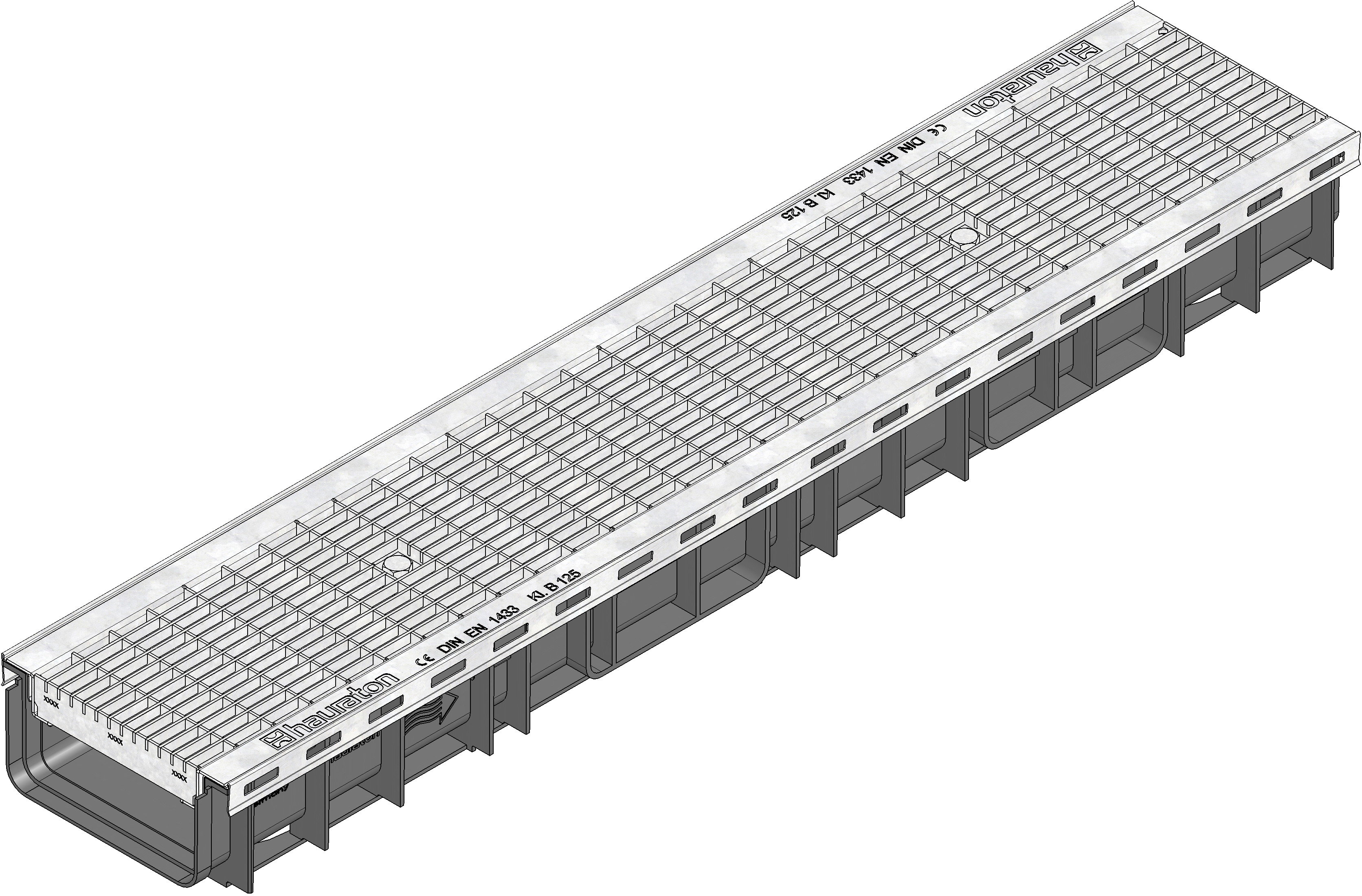

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
41036
Length
1000 mm
Width
202 mm
Height
100 mm
Einlegetiefe
2 mm
Weight
8.90 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled polypropylene, reinforced Polyamide, strip galvanized steel
Intake cross-section
1075.0 cm²/m
Nominal size
150
Internal channel cross-section
117 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material of angle housing
strip galvanized steel
Material cover
hot-dip galvanised steel
Regulations
EN 1433, AS 4586, DIN 19580
Sales text
RECYFIX PLUS 150 Channel type 100 with edge frames made of galvanised steel and mesh cover MS 30/10 mm, galvanised, cl. B 125, locked, 1 m
Product description
RECYFIX PLUS 150 type 100 - Channel body made of recycled polypropylene, with edge frames made of galvanised steel, with vertical connection possibility DN/OD 75/110, with mesh cover MS 30/10 mm, made of galvanised steel, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 1000x202x100 mm, item no. 41036
Packaging unit
50
Declaration of Performance
Tender Texts
Installation example
Pavement class B 125, Type 100
Cemented floor class B 125 - C 250,
Pavement class C 250, Type 100
Asphalt class A 15 - B 125, channel height ≥ 134 mm
Asphalt class C 250, channel height ≥ 134 mm
Pavement class A 15 - B 125, channel height ≥ 134 mm
Concrete class C 250, channel height ≥ 134 mm
Pavement class C 250, channel height ≥ 134 mm
Installation instructions
