Article No. 40785
RECYFIX PLUS 200, class B 125
Type 010 with mesh cover MS 30/10 mm, galvanised, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

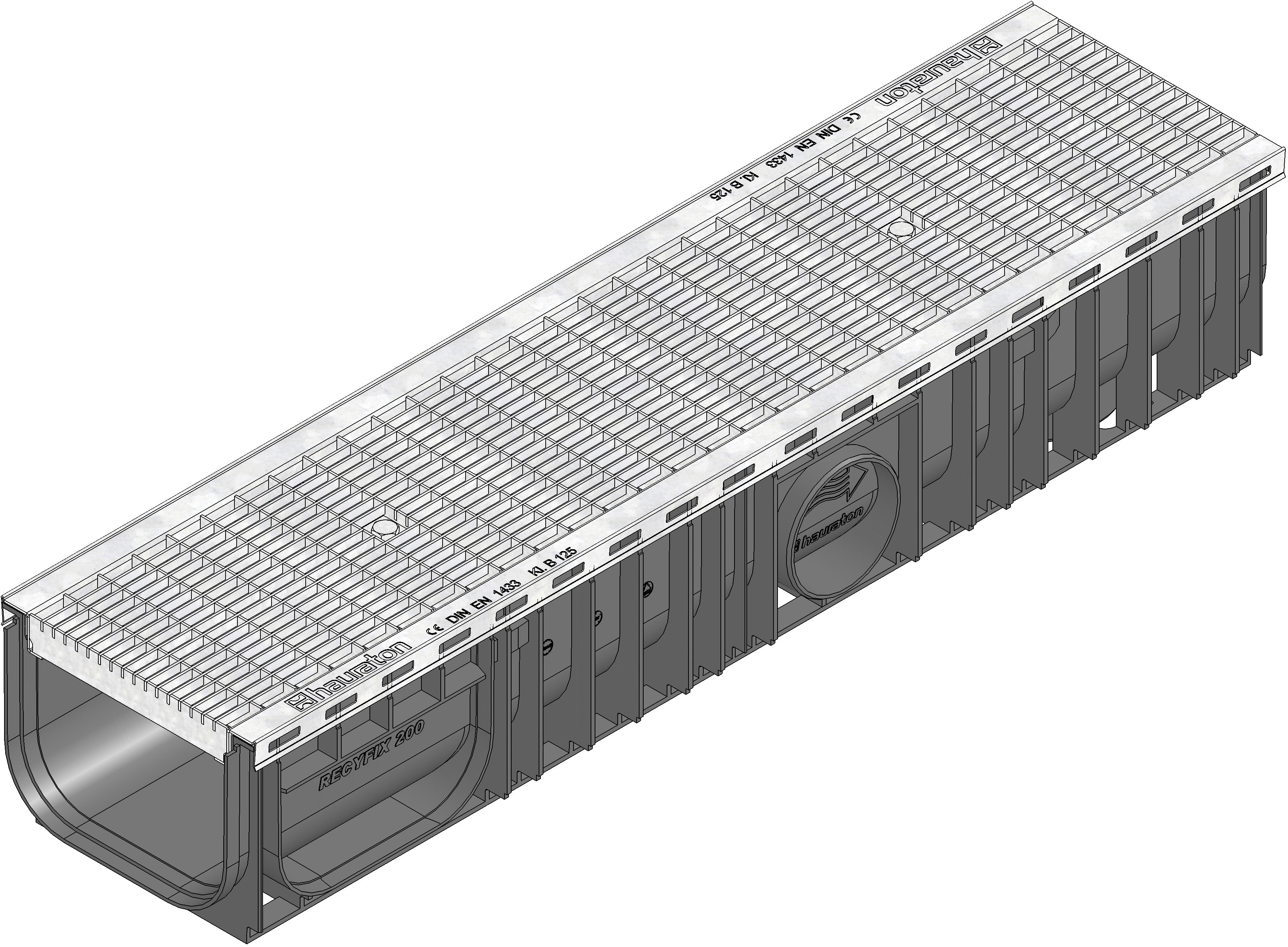

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
40785
Length
1000 mm
Width
247 mm
Height
186 mm
Einlegetiefe
2 mm
Weight
12.20 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene, strip galvanized steel
Intake cross-section
1447.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
strip galvanized steel
Material cover
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 200 Channel type 010 with edge frames made of galvanised steel and mesh cover MS 30/10 mm, galvanised, cl. B 125, locked, 1 m
Product description
RECYFIX PLUS 200 type 010 - Channel body made of recycled polypropylene, with edge frames made of galvanised steel, with lateral (DN /OD 110) and vertical connection possibility (DN/OD 110/160), with mesh cover MS 30/10 mm, made of galvanised steel, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 1000x247x186 mm, item no. 40785
Packaging unit
20
Declaration of Performance
Tender Texts
Installation example
Pavement class B 125, Type 100
Cemented floor class B 125 - C 250,
Pavement class C 250, Type 100
Asphalt class A 15 - B 125, channel height ≥ 134 mm
Asphalt class C 250, channel height ≥ 134 mm
Pavement class A 15 - B 125, channel height ≥ 134 mm
Concrete class C 250, channel height ≥ 134 mm
Pavement class C 250, channel height ≥ 134 mm
Installation instructions
