Article No. 40760
RECYFIX PLUS 200, class C 250
Type 010 with ductile iron cover 2x SW 85/18 mm, black, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

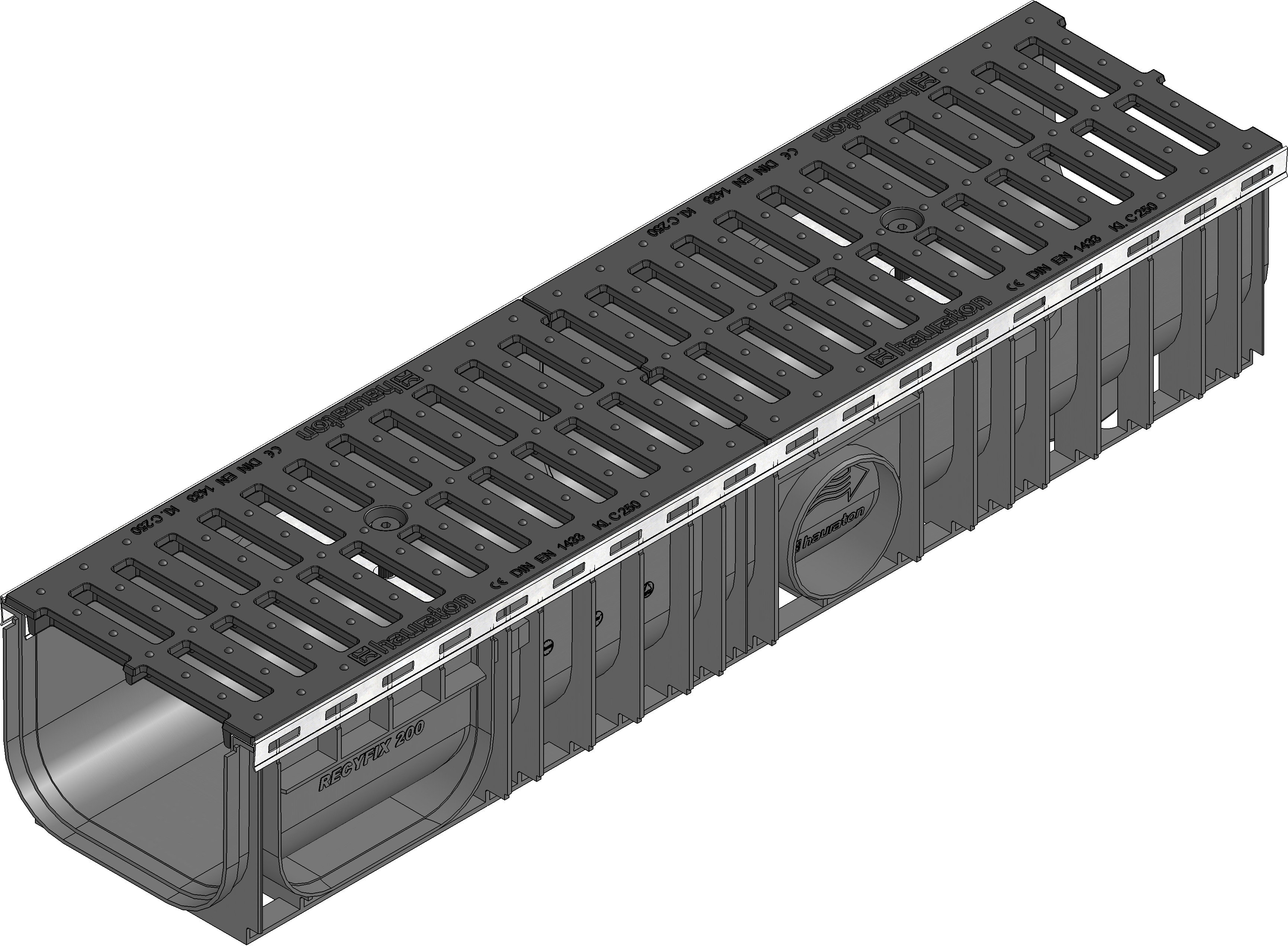

Product image

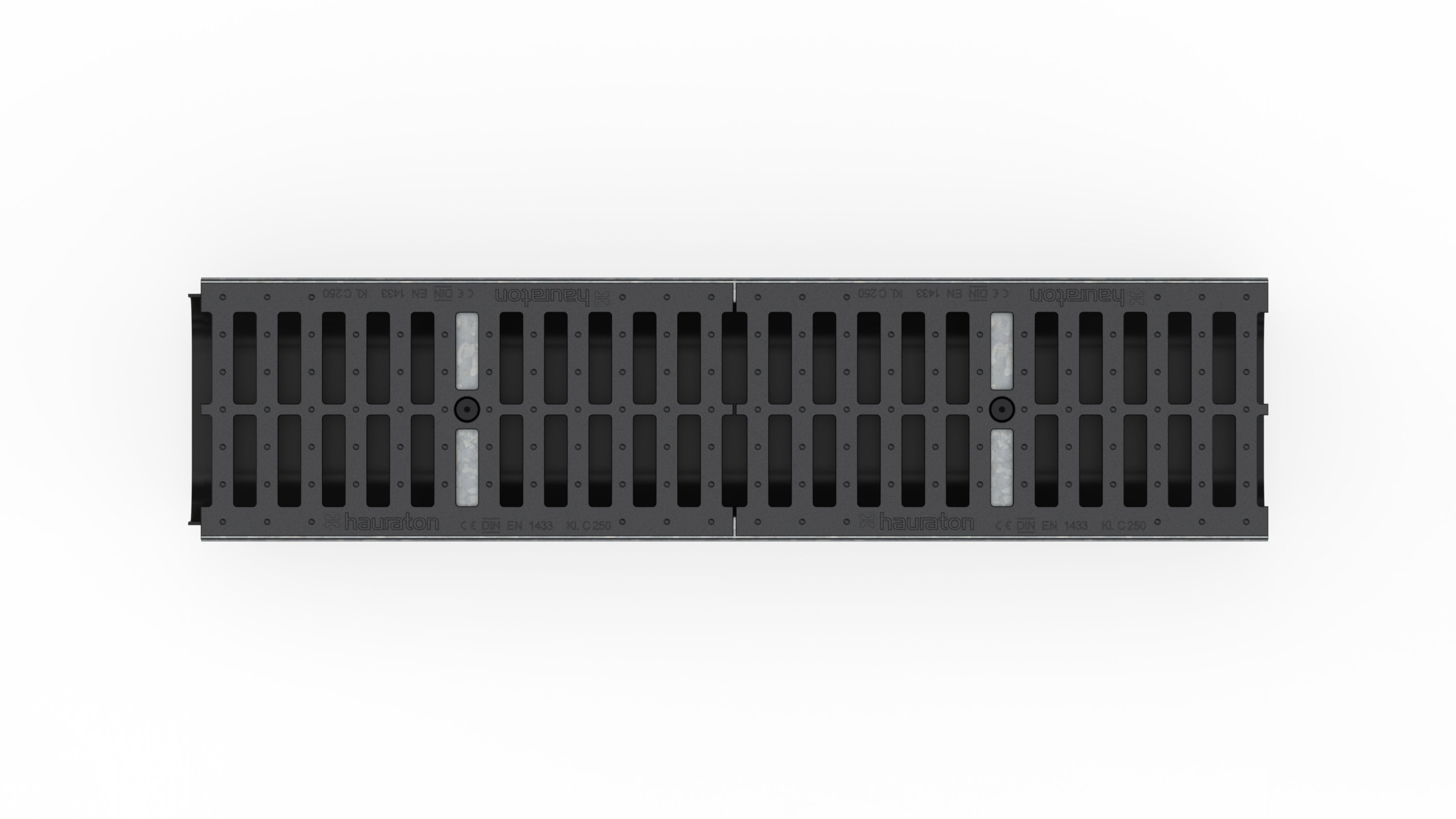

Top view
Technical drawing
Drawing (CAD)

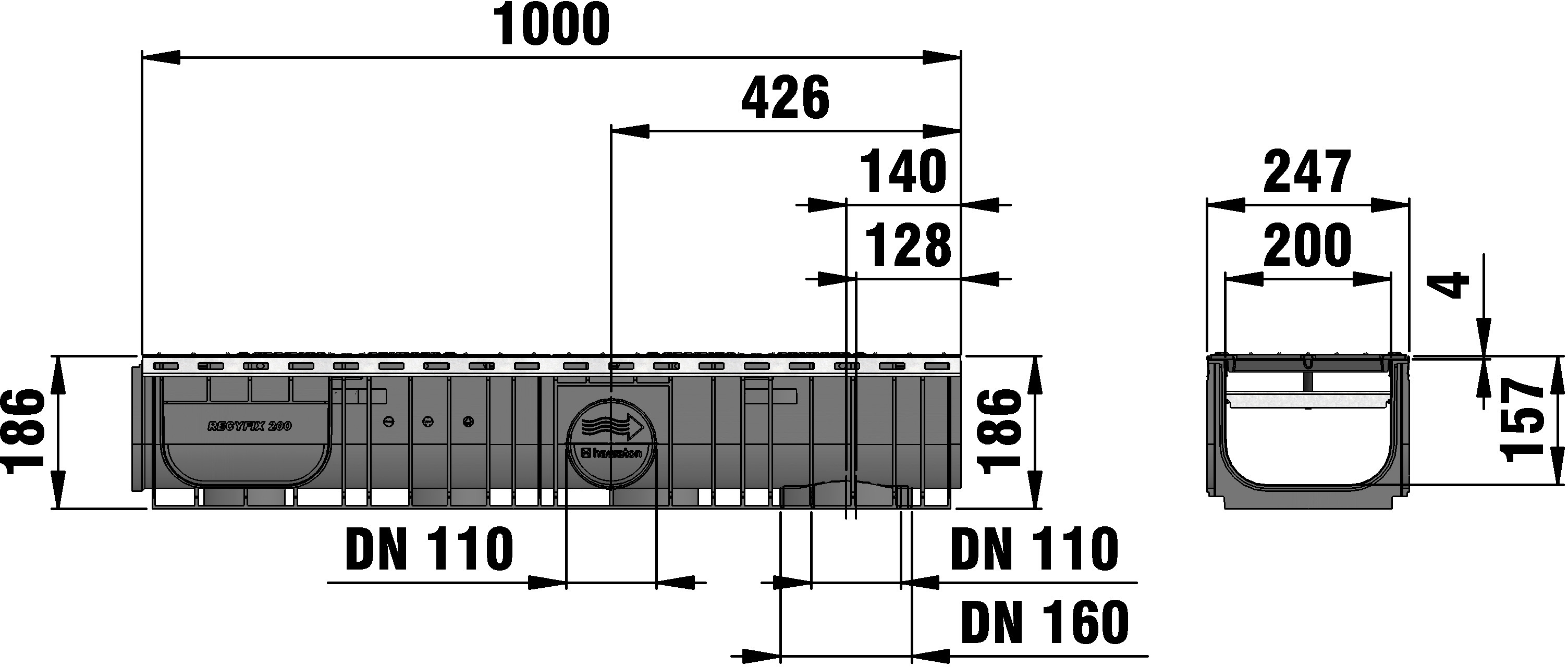

Drawing
Data Sheet
Technical information and metrics
Article No.
40760
Length
1000 mm
Width
247 mm
Height
186 mm
Einlegetiefe
6 mm
Weight
16.20 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled, modified Polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
714.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
strip galvanized steel
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 200 Channel type 010 with edge frames made of galvanised steel and ductile iron cover 2x SW 85/18 mm, black, cl. C 250, locked, 1 m
Product description
RECYFIX PLUS 200 type 010 - Channel body made of recycled polypropylene, with edge frames made of galvanised steel, with lateral (DN /OD 110) and vertical connection possibility (DN/OD 110/160), with ductile iron cover 2x SW 85/18 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 1000x247x186 mm, item no. 40760
Packaging unit
20
Declaration of Performance
Tender Texts

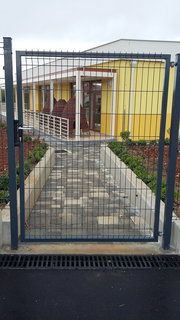

Installation example
Pavement class B 125, Type 100
Cemented floor class B 125 - C 250,
Pavement class C 250, Type 100
Asphalt class A 15 - B 125, channel height ≥ 134 mm
Asphalt class C 250, channel height ≥ 134 mm
Pavement class A 15 - B 125, channel height ≥ 134 mm
Concrete class C 250, channel height ≥ 134 mm
Pavement class C 250, channel height ≥ 134 mm
Installation instructions
