Article No. 42740

RECYFIX PLUS 200, class C 250

Type 100 with ductile iron cover, 2x SW 85/18 mm, black, stainless steel, locked, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

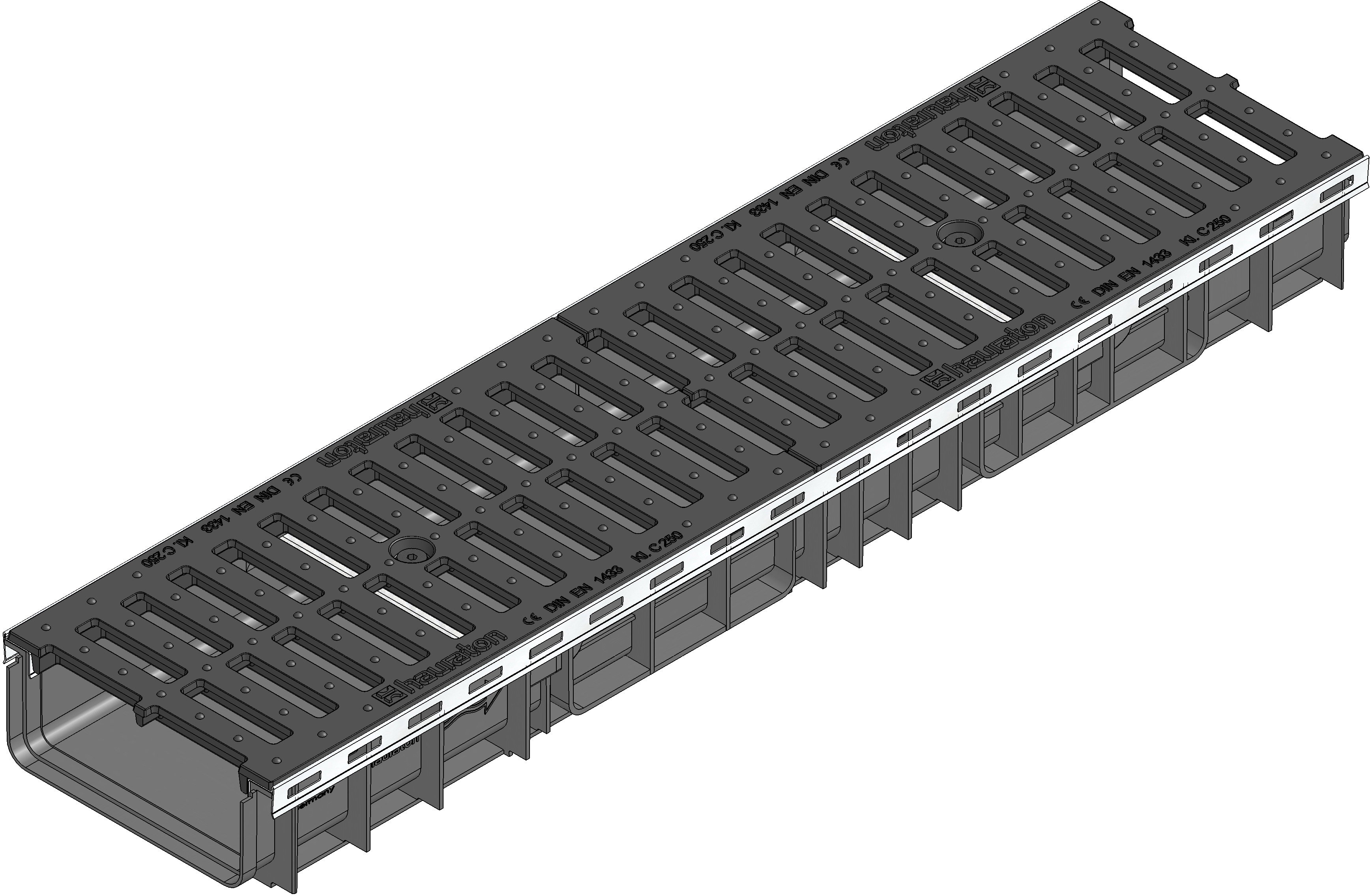

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Top view

Data Sheet

Technical information and metrics
Article No.
42740
Length
1000 mm
Width
244 mm
Height
95 mm
Einlegetiefe
6 mm
Weight
14.89 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled polypropylene, Stainless steel 1.4301, Steel black galvanised
Intake cross-section
714.0 cm²/m
Nominal size
200
Internal channel cross-section
147 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 200 Channel type 100 with edge frames made of stainless steel and ductile iron cover 2x SW 85/18 mm, black, cl. C 250 , locked, 1 m
Product description
RECYFIX PLUS 200 type 100 - Channel body made of recycled polypropylene, with edge frames made of stainless steel CNS 1.4301, with vertical connection possibility DN/OD 75/110, with ductile iron cover 2x SW 85/18 mm, made of spheroidal ductile iron EN-GJS-500-7 , black, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 1000x247x100 mm, item no. 42740
Packaging unit
36
