Article No. 42078
RECYFIX PLUS X 100, class D 400
Type 010 with GUGI-ductile iron mesh cover, MS 15/25 mm, black, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

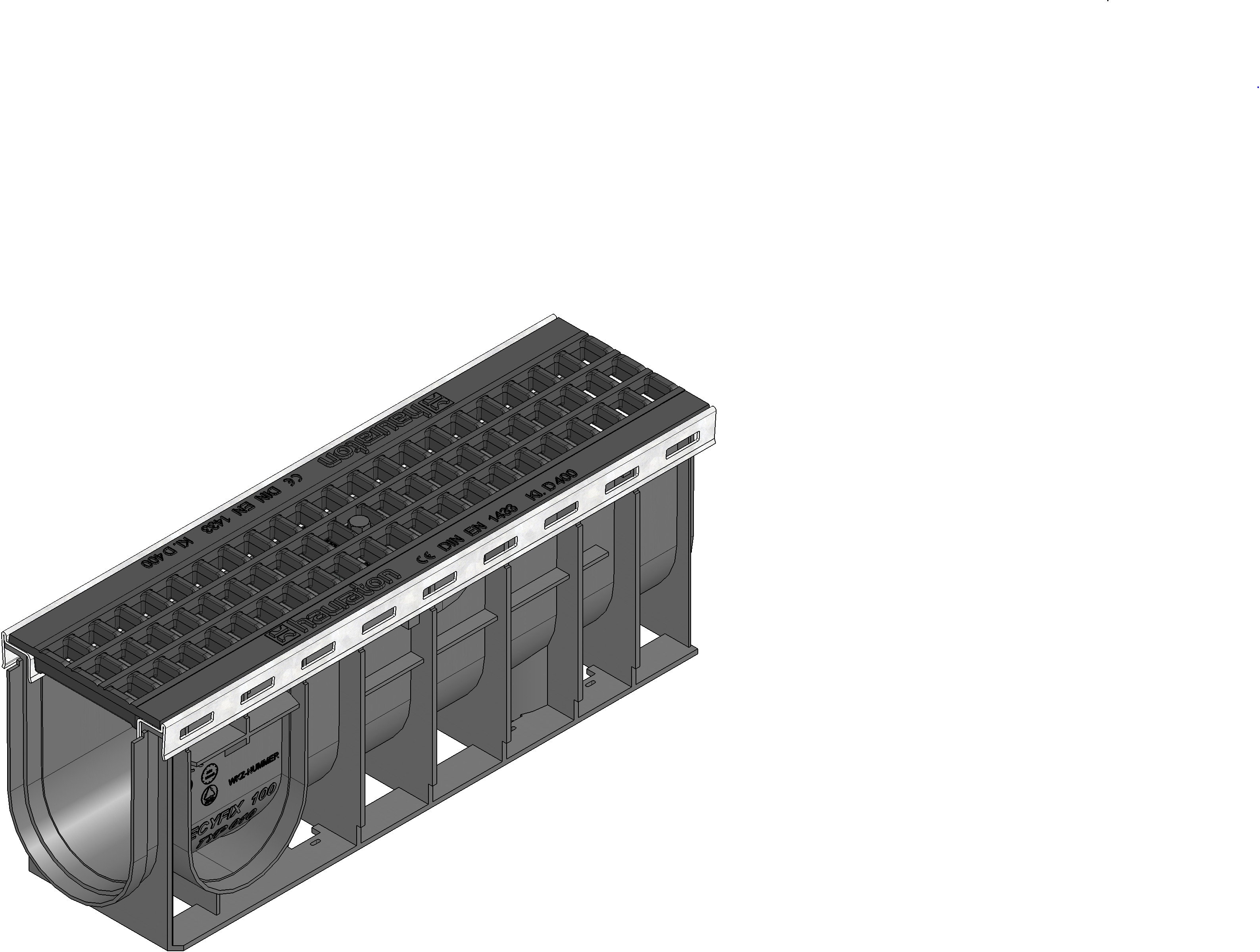

Product image

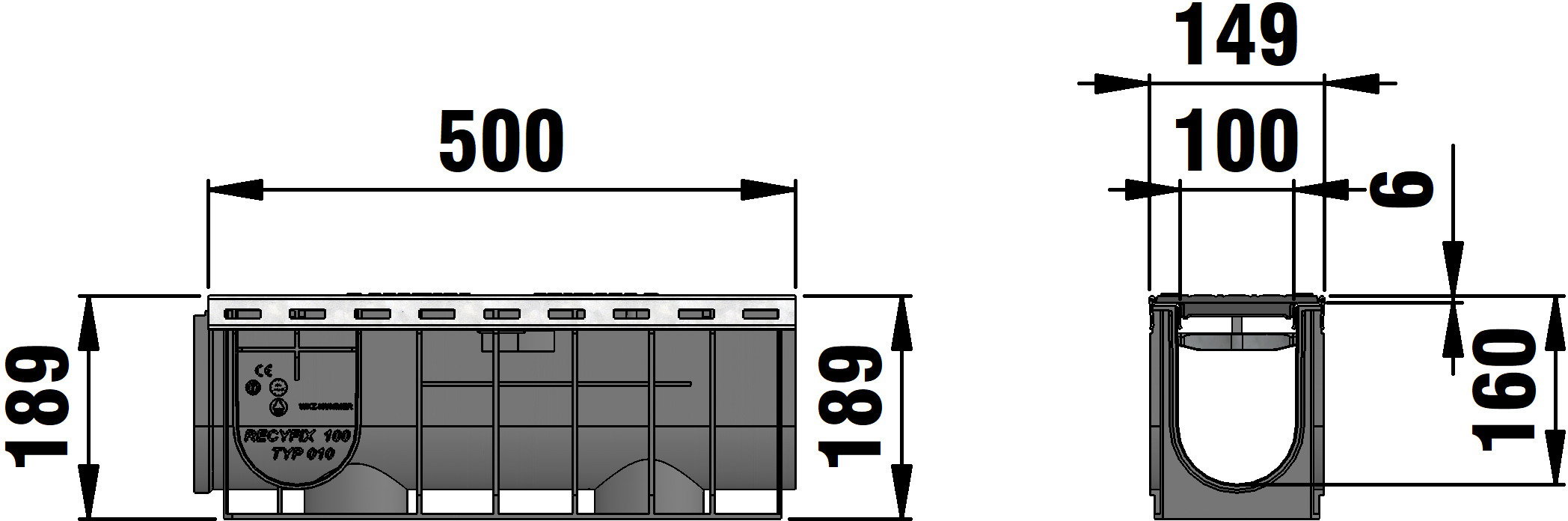

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
42078
Length
500 mm
Width
149 mm
Height
189 mm
Einlegetiefe
6 mm
Weight
5.18 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised, strip galvanized steel
Intake cross-section
440.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
strip galvanized steel
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS X 100 Channel type 010 with edge frames made of galvanised steel and GUGI-ductile iron mesh cover MS 15/25 mm, black, cl. D 400, locked, 0.5 m
Product description
RECYFIX PLUS X 100 type 010 - Channel body made of recycled polypropylene, with edge frames made of galvanised steel, with GUGI-ductile iron cover MS 15/25 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection and locking, load class A 15 - D 400 according to EN 1433, LxWxH 500x149x189 mm, item no. 42078
Packaging unit
84
Declaration of Performance
Tender Texts
Installation example
Asphalt class D 400,
Concrete class D 400,
Pavement class D 400,
Installation instructions
