Article No. 42280
RECYFIX PLUS X 200, class D 400
Type 020 with GUGI-ductile iron mesh cover, MS 15/25 mm, black, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

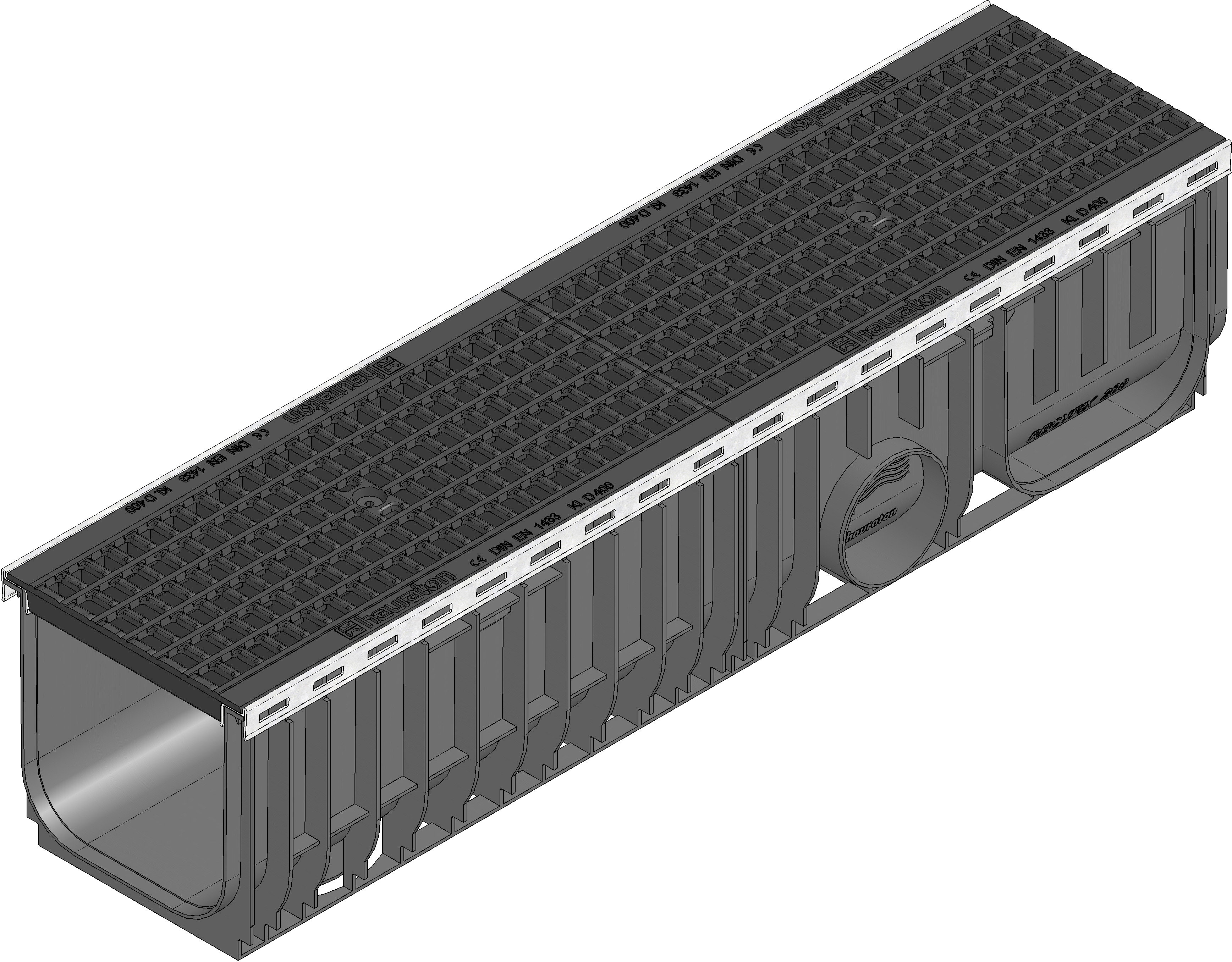

Product image
Technical drawing
Drawing (CAD)
Drawing

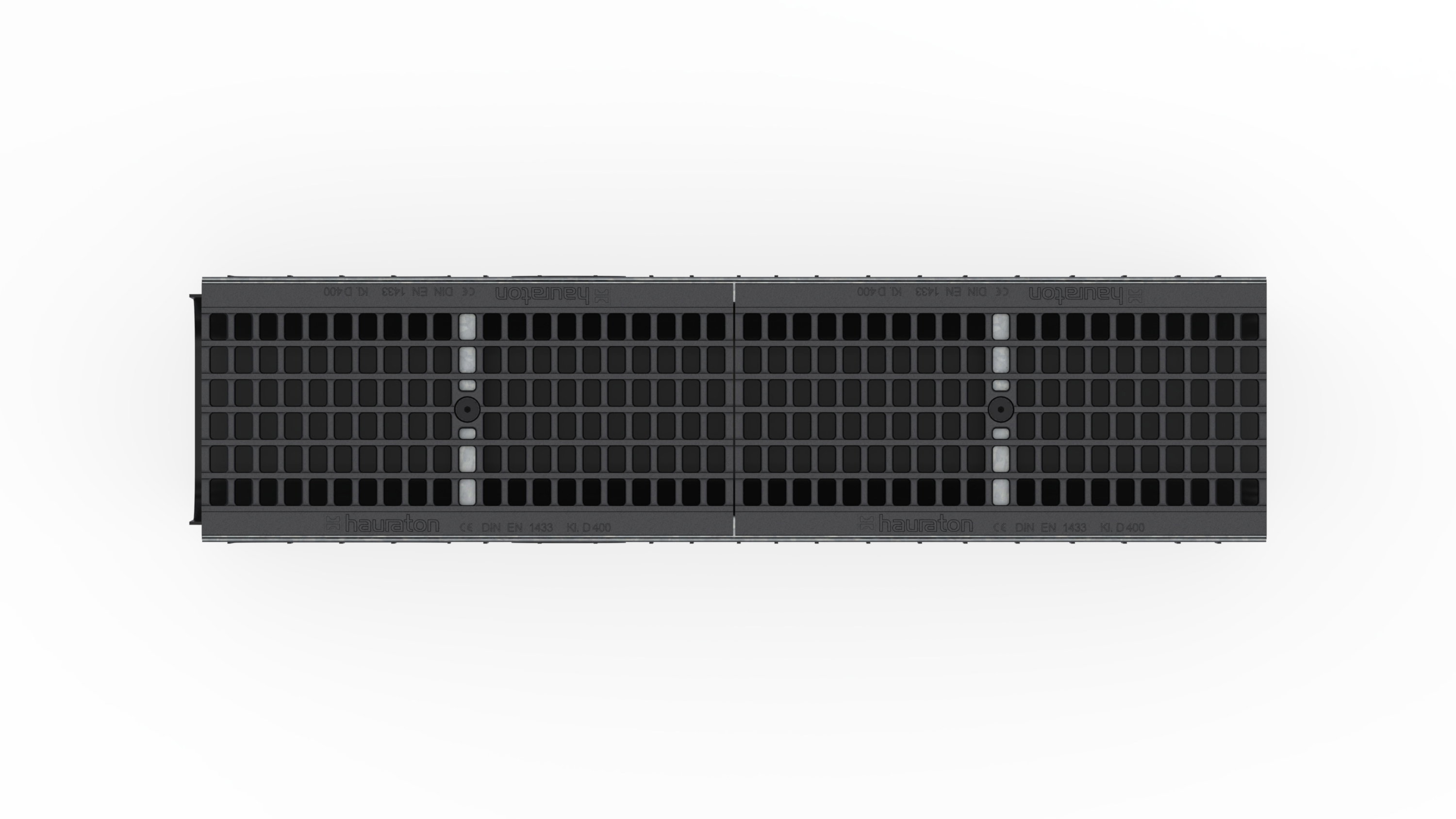

Top view
Data Sheet
Technical information and metrics
Article No.
42280
Length
1000 mm
Width
249 mm
Height
239 mm
Einlegetiefe
6 mm
Weight
21.00 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled, modified Polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
873.0 cm²/m
Nominal size
200
Internal channel cross-section
394 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
strip galvanized steel
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS X 200 Channel type 020 with edge frames made of galvanised steel and GUGI-ductile iron mesh cover MS 15/25 mm, black, cl. D 400, locked, 1 m
Product description
RECYFIX PLUS X 200 type 020 - Channel body made of recycled polypropylene, with edge frames made of galvanised steel, with lateral ( DN/OD 160) and vertical connection possibility (DN/OD 110/160), with GUGI-ductile iron cover MS 15/25 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection and locking, load class A 15 - D 400 according to EN 1433, LxWxH 1000x249x239 mm, item no. 42280
Packaging unit
16
Declaration of Performance
Tender Texts
Installation example
Asphalt class D 400,
Concrete class D 400,
Pavement class D 400,
Installation instructions
