Article No. 42377
RECYFIX PLUS X 300, class D 400
Type 01 with ductile iron cover, SW 18 mm, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

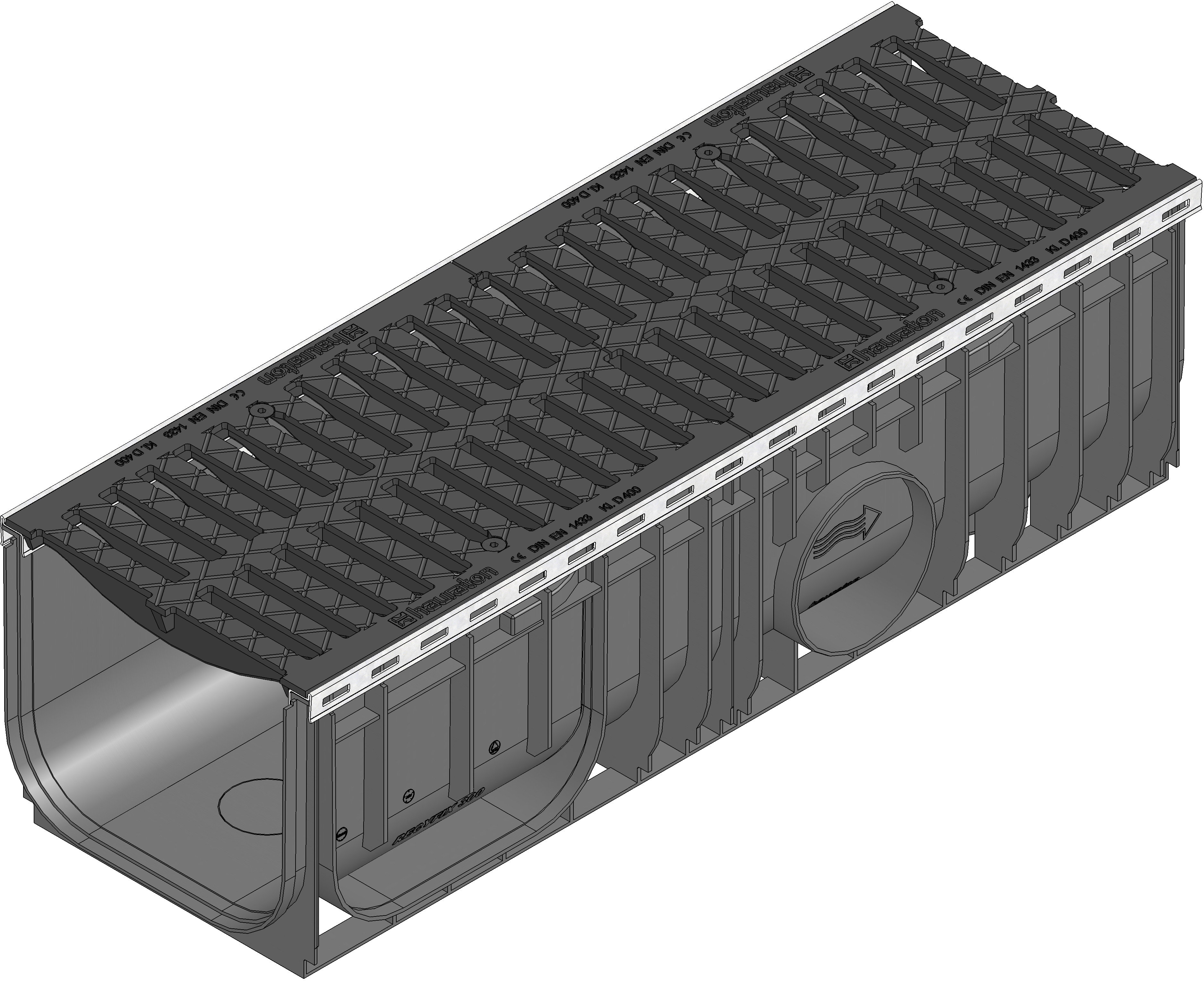

Product image

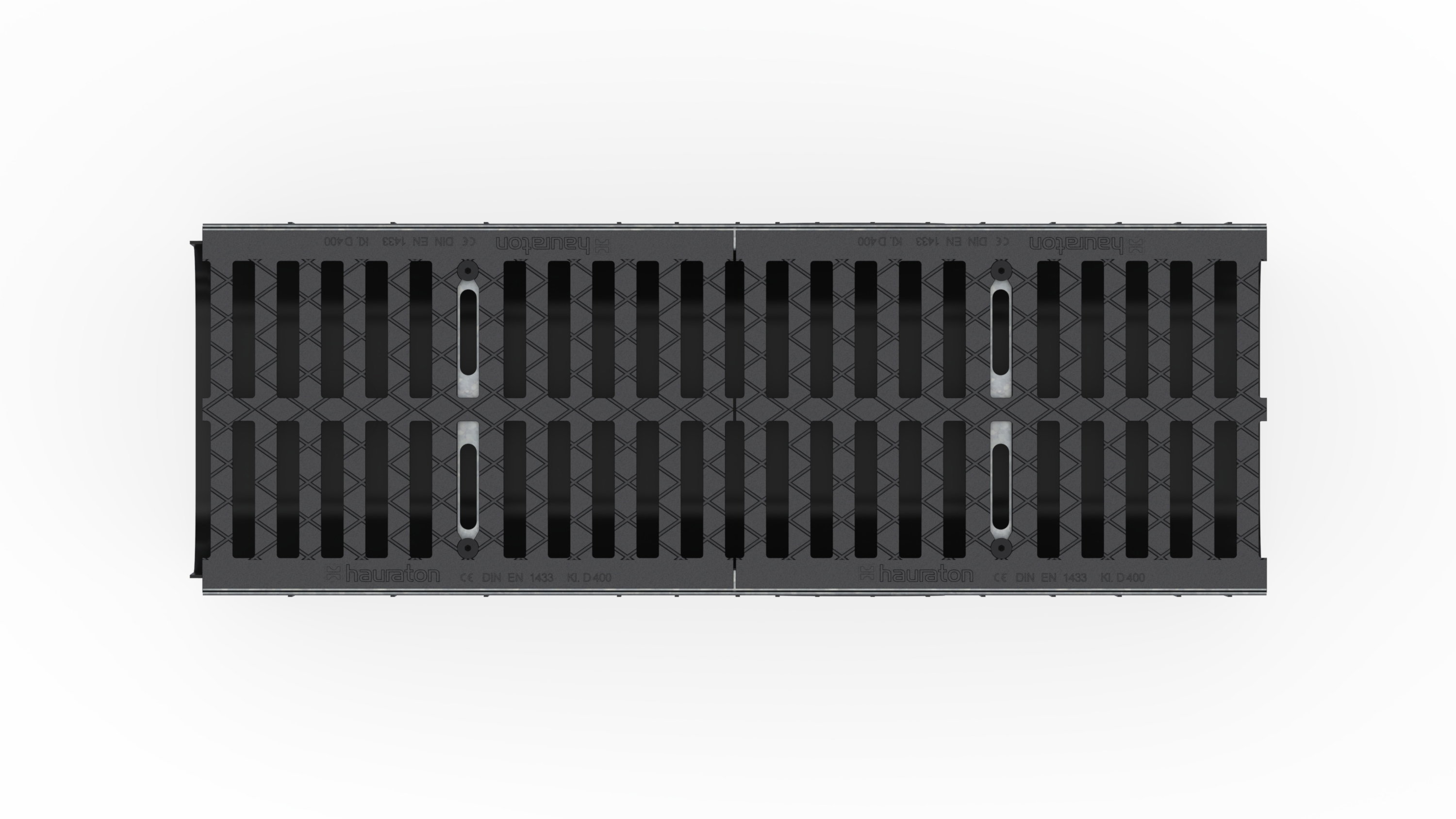

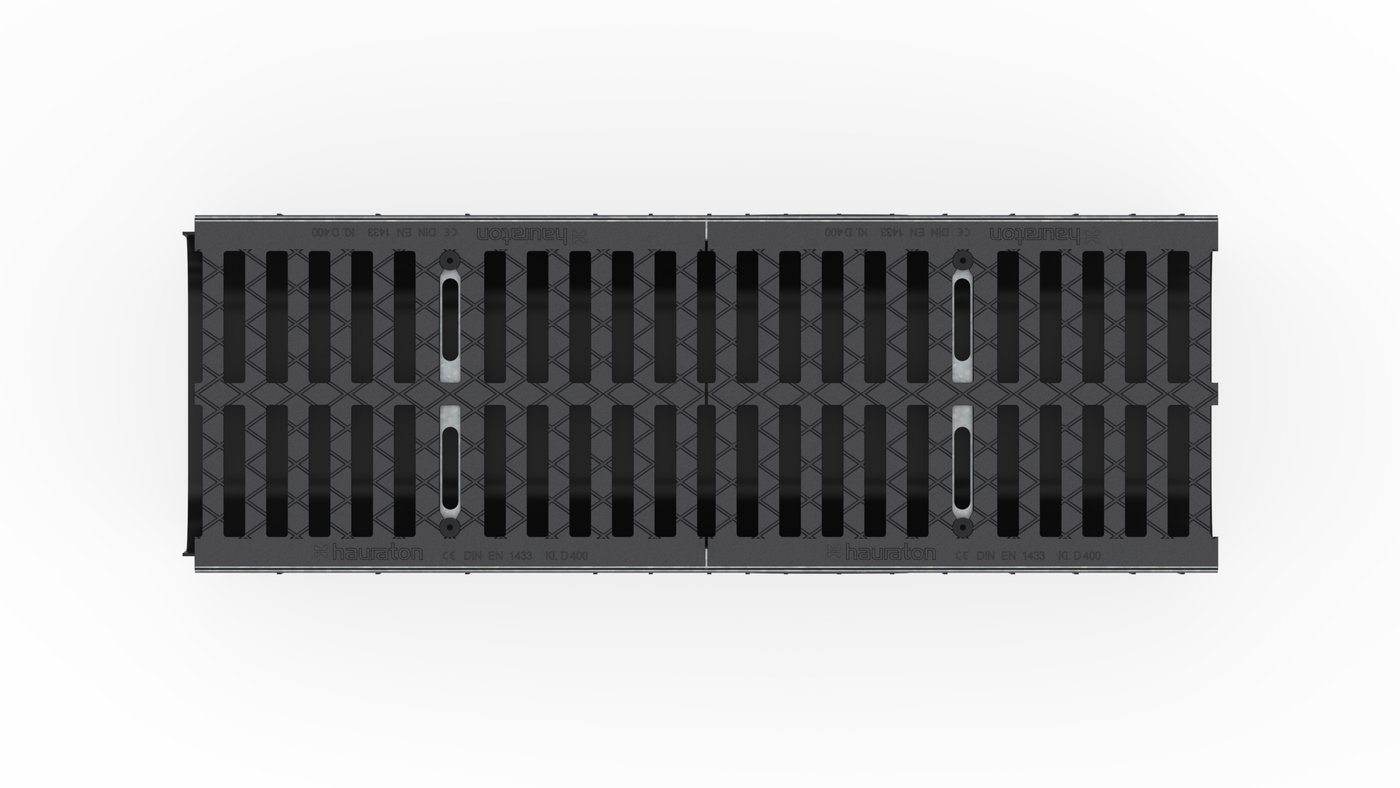

Top view

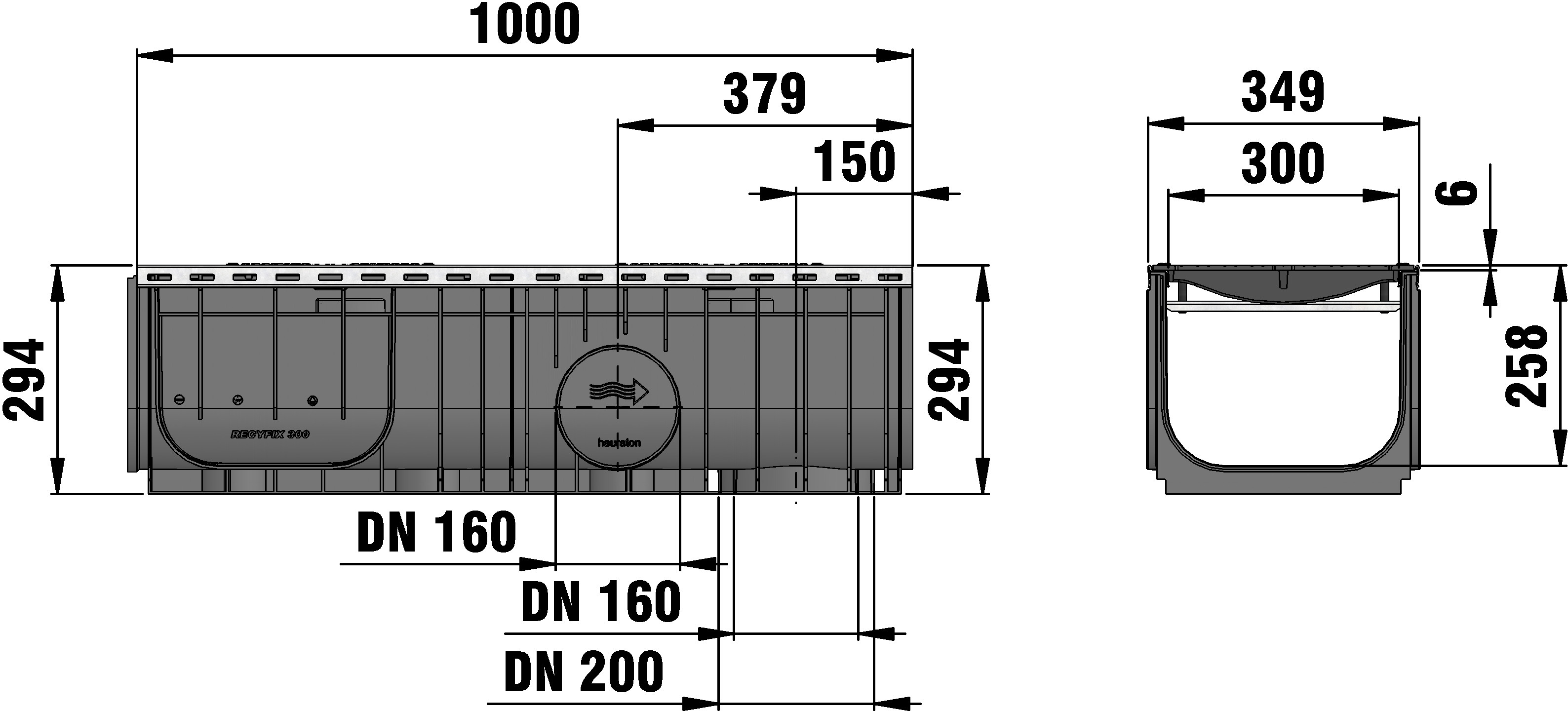

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
42377
Length
1000 mm
Width
349 mm
Height
294 mm
Einlegetiefe
6 mm
Weight
33.64 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
1096.0 cm²/m
Nominal size
300
Internal channel cross-section
730 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
strip galvanized steel
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS X 300 Channel type 01 with edge frames made of galvanised steel and ductile iron cover 2x SW 128/18 mm, PMR, black, cl. D 400, locked, 1 m
Product description
RECYFIX PLUS X 300 type 01 - Channel body made of recycled polypropylene, with edge frames made of galvanised steel, with lateral ( DN/OD 160) and vertical connection possibility (DN/OD 160/200), with ductile iron cover 2x SW 128/18 mm, PMR, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection and locking, load class A 15 - D 400 according to EN 1433, LxWxH 1000x349x294 mm, item no. 42377
Packaging unit
9
Declaration of Performance
Tender Texts
Installation example
Asphalt class D 400,
Concrete class D 400,
Pavement class D 400,
Installation instructions
