Article No. 10327
RECYFIX POINT 30/30, Point drainage, class A 15
Installation height 300 mm, with mesh cover MW 30/10 mm, galvanised
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

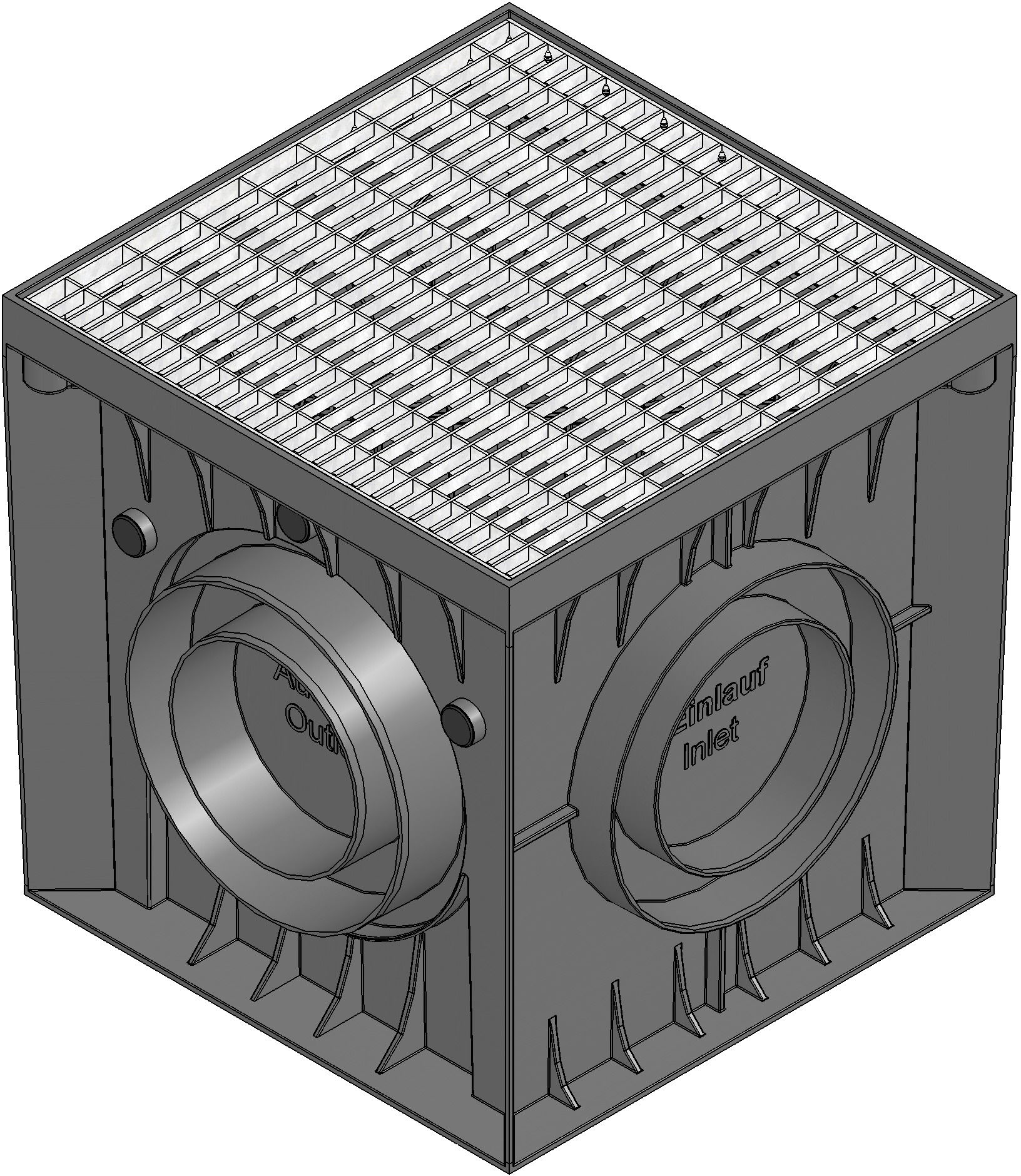

Product image

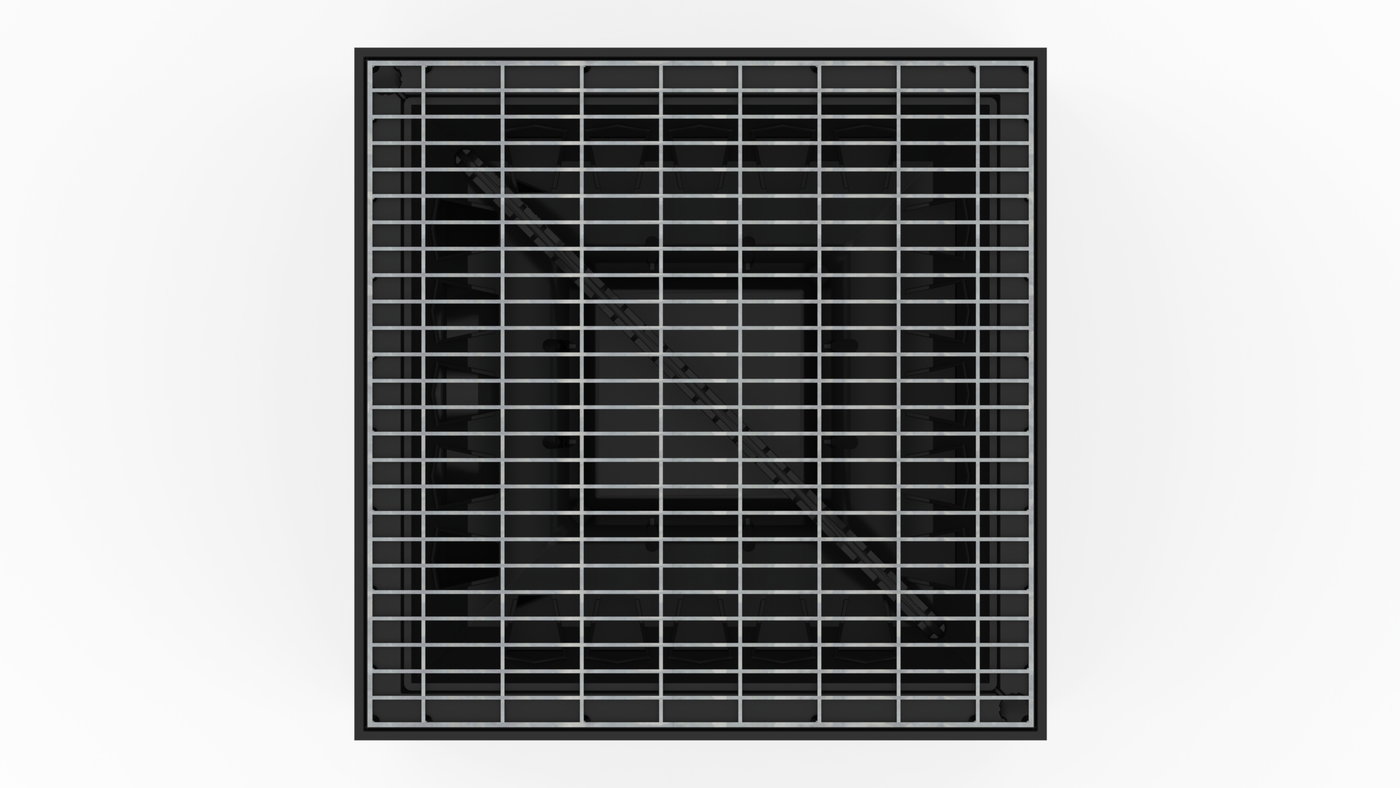

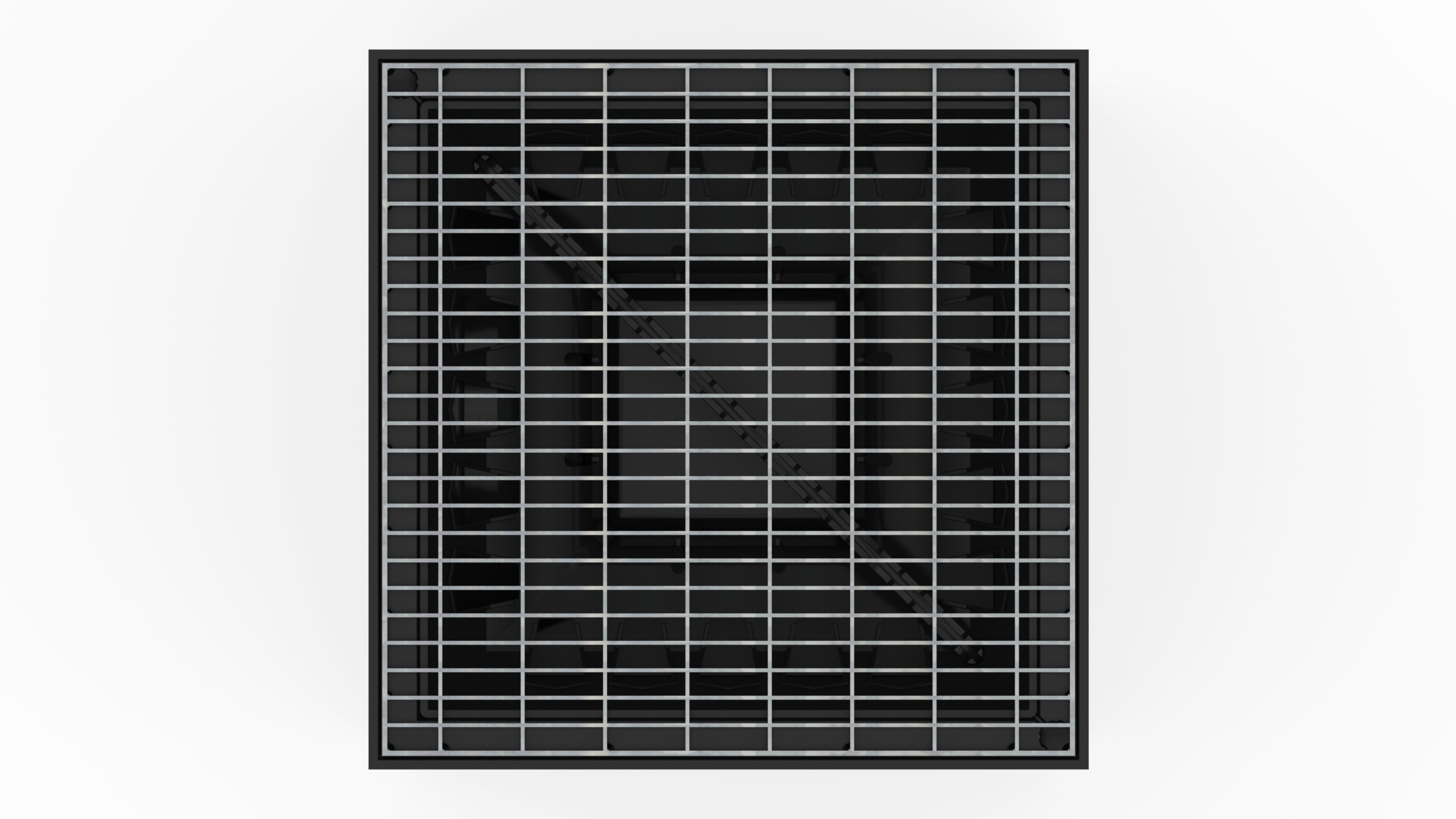

Top view

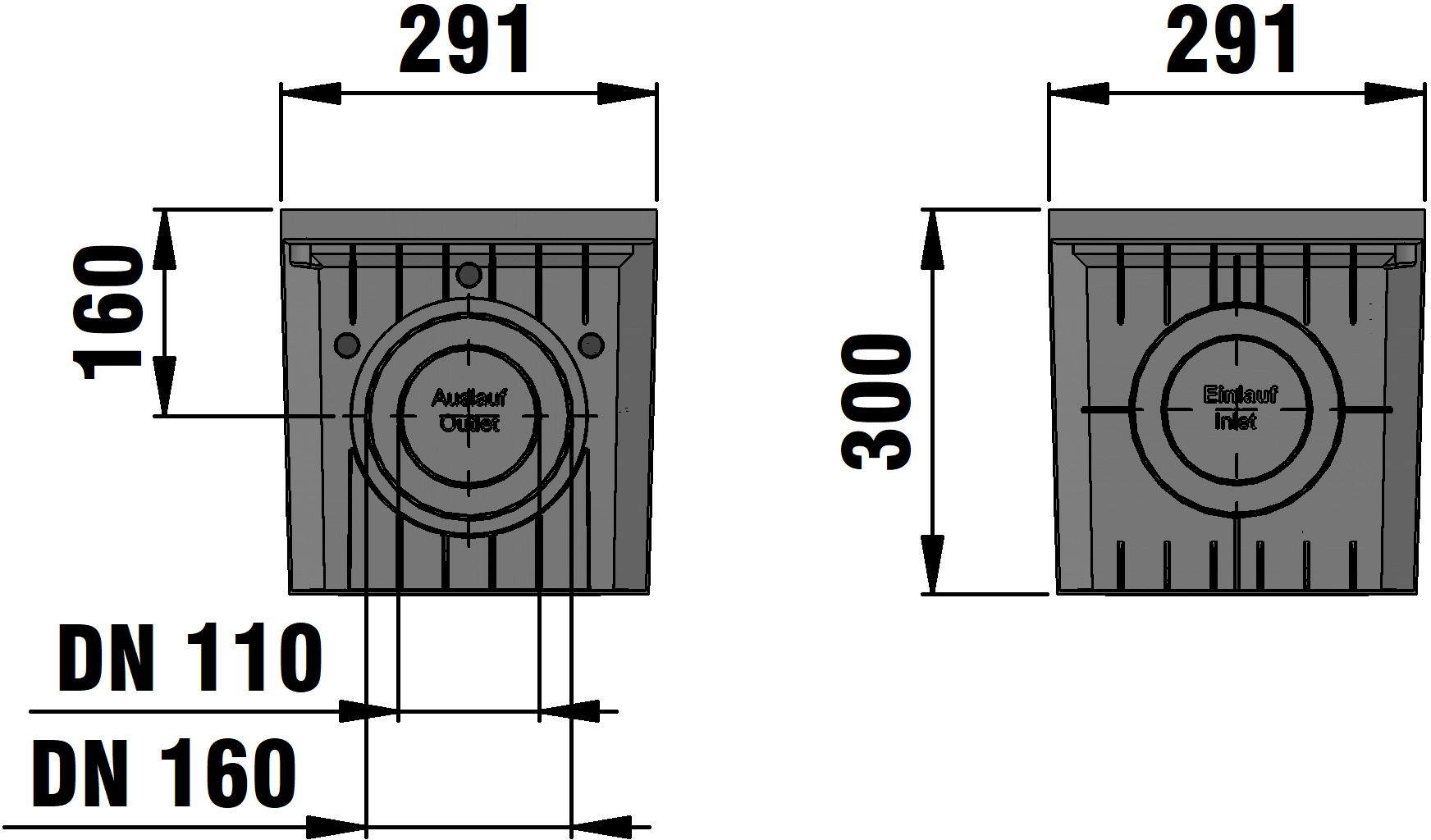

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10327
Length
291 mm
Width
291 mm
Height
300 mm
Weight
3.40 kg
Material
hot-dip galvanised steel, recycled, modified Polypropylene
Inlet opening
10
Material cover
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX POINT 30/30 - Gully, installation height 300 mm, with mesh cover MS 30/10 mm, galvanised, cl. A 15, with silt bucket and foul air trap
Product description
RECYFIX POINT 30/30 - Gully, installation height 300 mm, made of recycled polypropylene, with mesh cover MS 30/10 mm, galvanised, with silt bucket made of composite and foul air trap, with lateral connection possibility DN/OD 110/160, load class A 15 according to EN 1433, CE compliant, LxWxH 291x291x300 mm, item no. 10327
Packaging unit
36
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15,
Pavement class A 15,
water-bound road surfaces class A 15,
Pavement class A 15 - B 125,
Pavement class A 15 - B 125,
Asphalt class A 15 - C 250,
Concrete class B 125 - C 250,
Pavement class A 15 - C 250,
water-bound road surfaces class A 15 - C 250,
Pavement class C 250,
Pavement class A 15 - C 250,
Asphalt class A 15 - C 250,
Concrete class B 125 - C 250,
Pavement class C 250,
Installation instructions
