Article No. 33381
RECYFIX POINT 30/30, Point drainage, class B 125
Installation height 450 mm, with FIBRETEC design slotted cover SW 99/8 mm, black
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

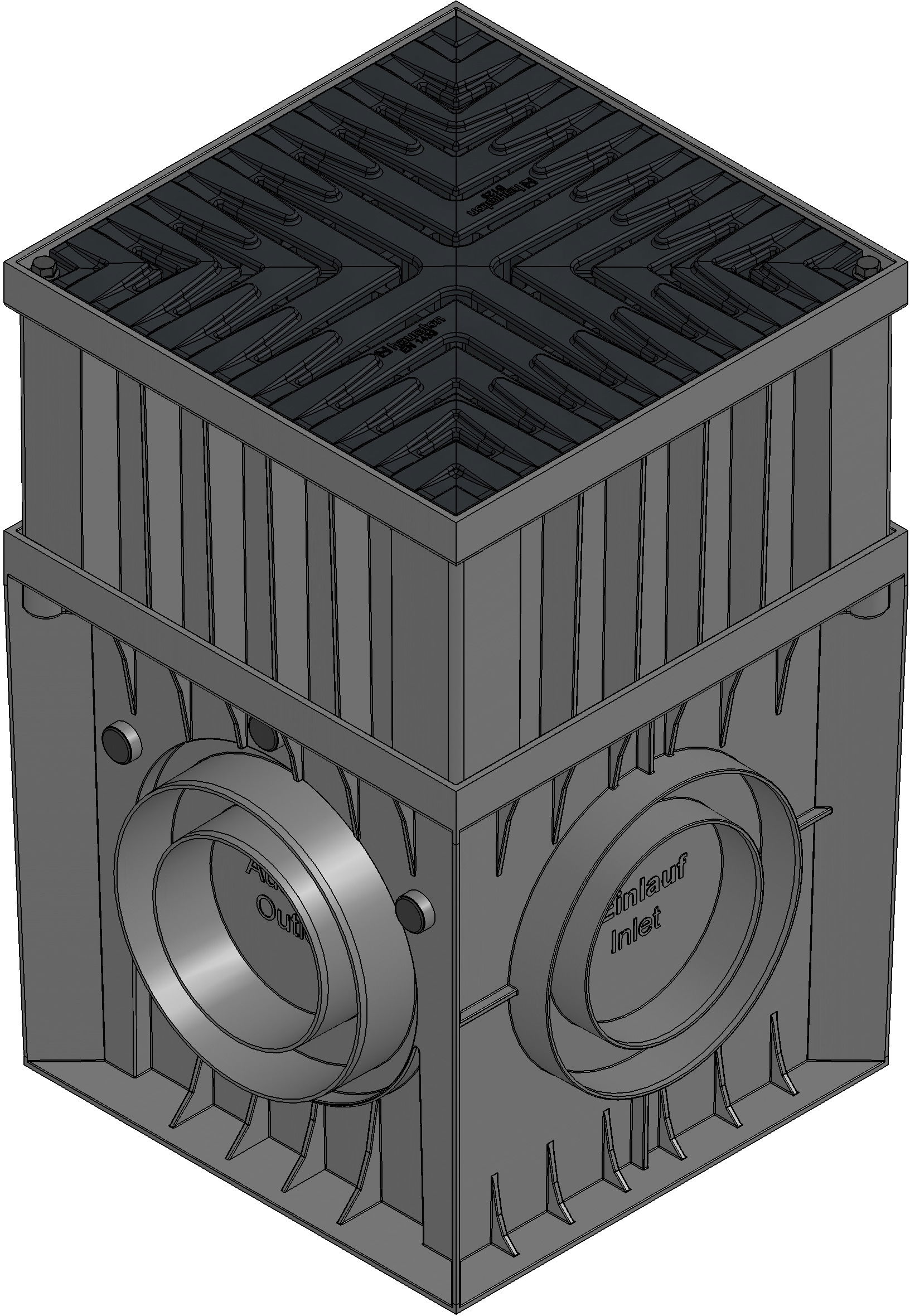

Product image
Technical drawing
Drawing (CAD)

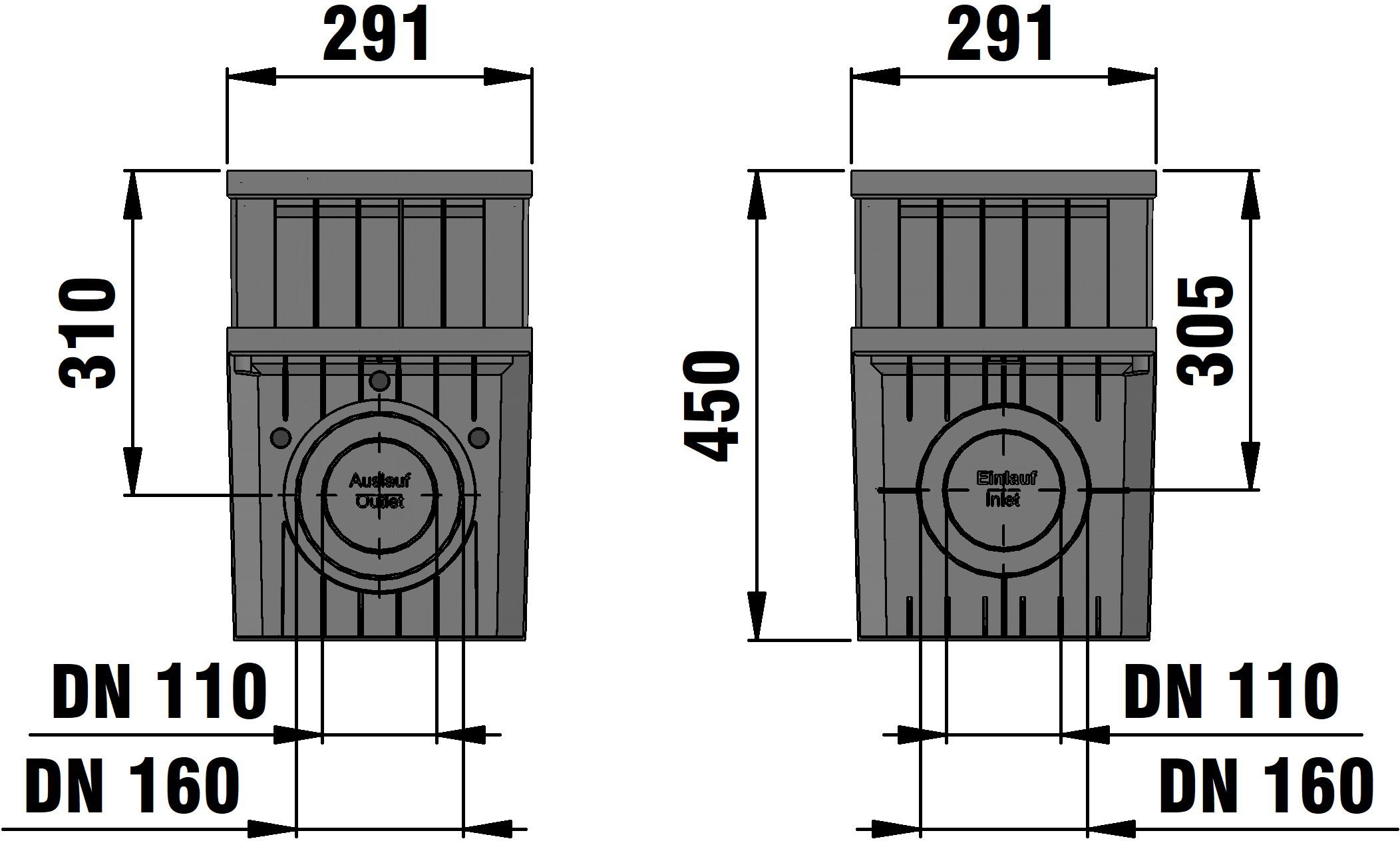

Drawing

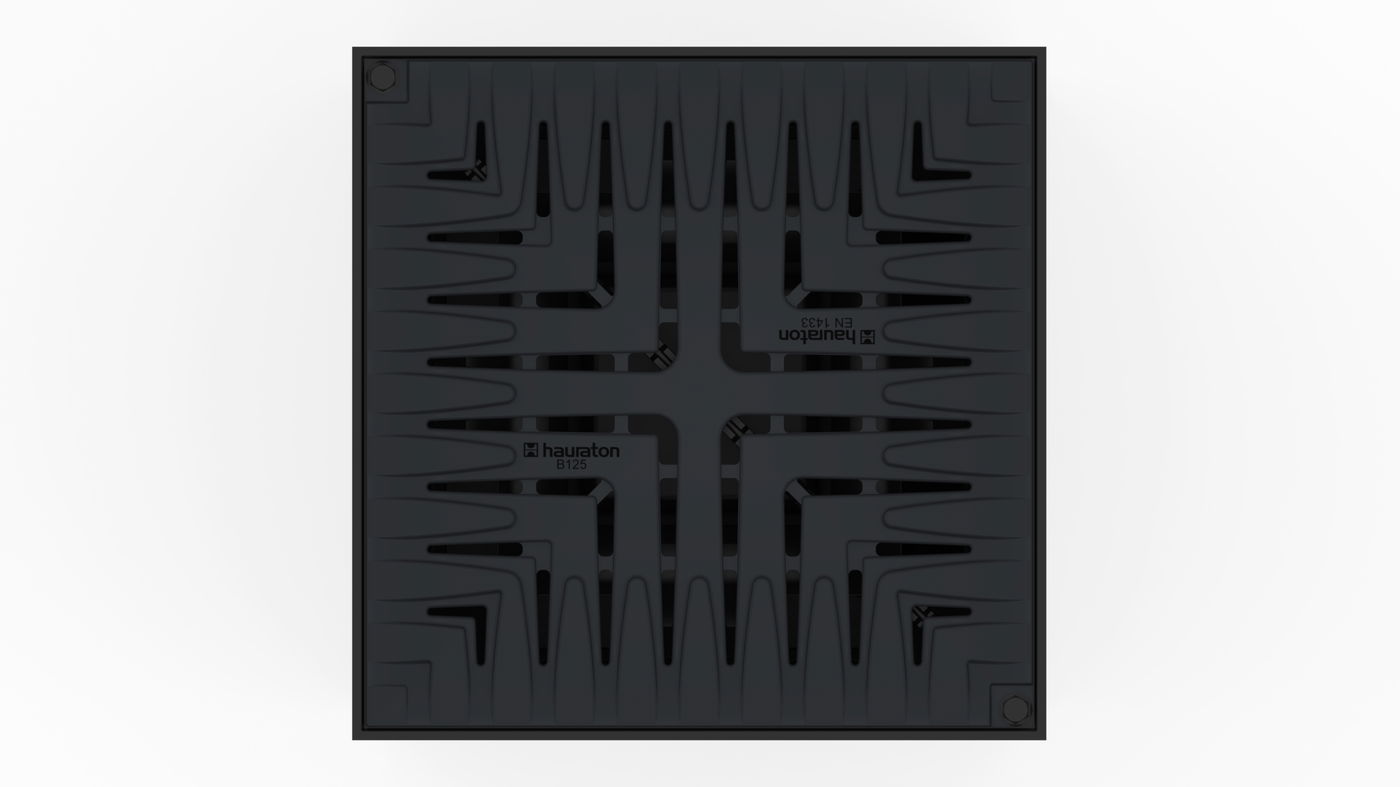

Top view
Data Sheet
Technical information and metrics
Article No.
33381
Length
291 mm
Width
291 mm
Height
450 mm
Weight
3.50 kg
Material
Brass, reinforced Polyamide, rubber, Steel 8.8 zinc-laminated black
Inlet opening
8
Material cover
reinforced Polyamide
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX POINT 30/30 Gully, installation height 450 mm, with FIBRETEC design slotted cover SW 99/8 mm, black, cl. B 125, anti-slip resistance class R11, screwed, and with silt bucket made of composite and foul air trap
Product description
RECYFIX POINT 30/30 Gully, installation height 450 mm, made of recycled polypropylen, with FIBRETEC design slotted cover SW 99/8 mm, black, anti-slip resistance class R11, made of fibre-reinforced polyamide, screwed, with silt bucket made of composite and foul air trap, with lateral connection possibility DN/OD 110/160, load class A 15 - B 125 according to DIN 19580/EN 1433, LxWxH 291x291x450 mm, item no. 33381
Packaging unit
36
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15,
Pavement class A 15,
water-bound road surfaces class A 15,
Pavement class A 15 - B 125,
Pavement class A 15 - B 125,
Asphalt class A 15 - C 250,
Concrete class B 125 - C 250,
Pavement class A 15 - C 250,
water-bound road surfaces class A 15 - C 250,
Pavement class C 250,
Pavement class A 15 - C 250,
Asphalt class A 15 - C 250,
Concrete class B 125 - C 250,
Pavement class C 250,
Installation instructions
