Article No. 32612
RECYFIX POINT 30/30, Point drainage, class C 250, with foul air trap, mud bucket and KG-pipe connection DN/OD 110, DN/OD 160
Construction height 300 mm with longitudinal ductile iron cover, bar distance 8 mm, screwed, black, KTL-coated
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

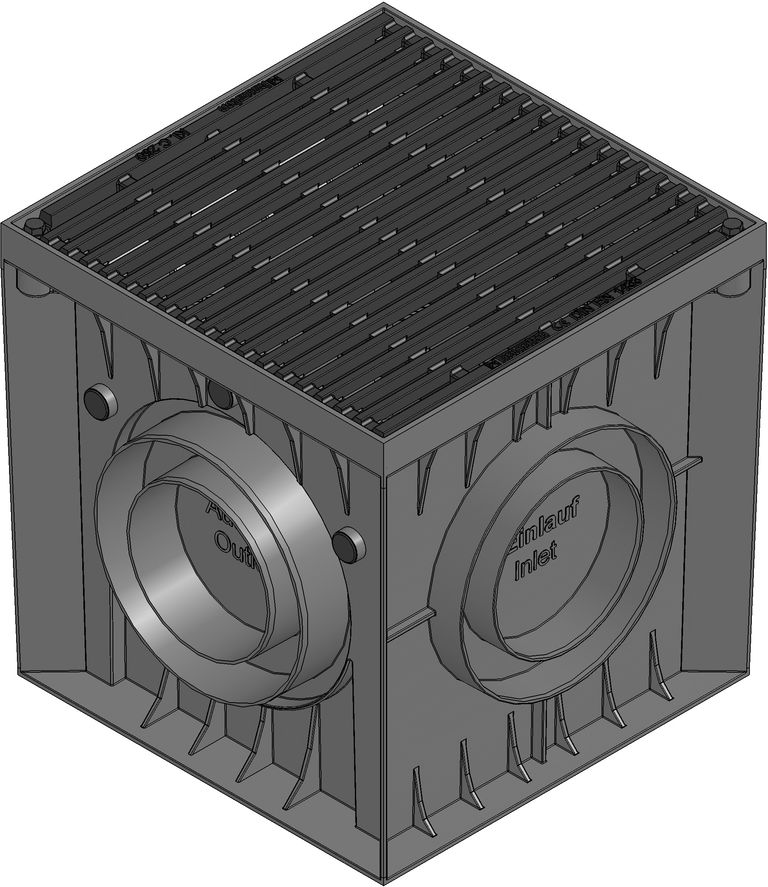

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32612
Length
291 mm
Width
291 mm
Height
300 mm
Weight
6.89 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled, modified Polypropylene
Inlet opening
0
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regelwerke
EN 1433
Vertriebstext
RECYFIX POINT 30/30, installation height 300 mm, longitudinal ductile iron cover, bar distance 8 mm, KTL-coated, cl. C 250, screwed, with sludge trap bucket and foul air trap
Produktbeschreibung
RECYFIX POINT 30/30 - point drainage, installation height 300 mm, made of modified PP, with longitudinal ductile iron cover bar distance 8 mm, KTL-coated, loading capacity from A 15 - C 250, locked, with silt bucket and foul air trap, with lateral connection possibility DN/OD 110/160, L/W/H 291x291x300 mm, item no. 32612
Verpackungseinheit
36 Unit / Pallet
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15
Pavement class A 15
water-bound road surfaces class A 15
Pavement class A 15 - B 125
Pavement class A 15 - B 125
Asphalt class A 15 - C 250
Concrete class B 125 - C 250
Pavement class A 15 - C 250
water-bound road surfaces class A 15 - C 250
Pavement class C 250
Pavement class A 15 - C 250
Asphalt class A 15 - C 250
Concrete class B 125 - C 250
Pavement class C 250
Installation instructions
