Article No. 48623
RECYFIX PRO 100, class B 125
Type 020 with GUGI-Cover MS 15/25 mm, black, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

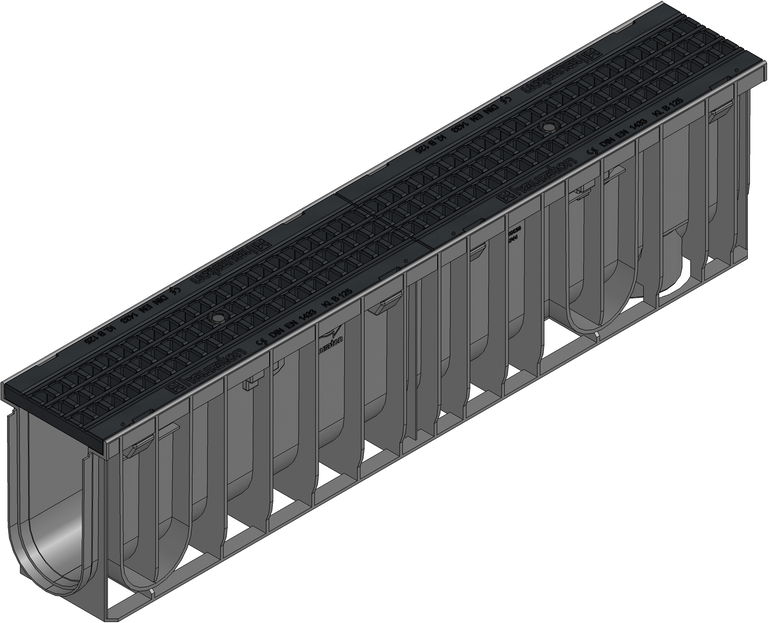

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
48623
Length
1000 mm
Width
160 mm
Height
250 mm
Einlegetiefe
20 mm
Weight
5.50 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
444.0 cm²/m
Nominal size
100
Internal channel cross-section
192 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
reinforced Polyamide
Regulations
EN 1433, DIN 51130, DIN 19580, EN 16165
Sales text
RECYFIX PRO 100 Channel type 020 with integrated edge frames, with GUGI-mesh cover made of composite MS 15/25 mm, black, cl. B 125 , locked, 1 m
Product description
RECYFIX PRO 100 type 020 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 110, with GUGI-mesh cover MS 15/25 mm, made of fibre-reinforced polyamide, black, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 1000x160x250 mm, item no. 48623
Packaging unit
28
Declaration of Performance
Tender Texts
Installation example
Asphalt class A 15 - B 125,
Pavement class A 15 - B 125,
water-bound road surfaces class A 15 - B 125,
Pavement class A 15 - B 125,
Cemented floor class A 15 - C 250,
Pavement class C 250,
Concrete class C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
Installation instructions
