Article No. 47096
RECYFIX PRO 100, class B 125
Type 95 with mesh cover MS 30/10 mm, stainless steel, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

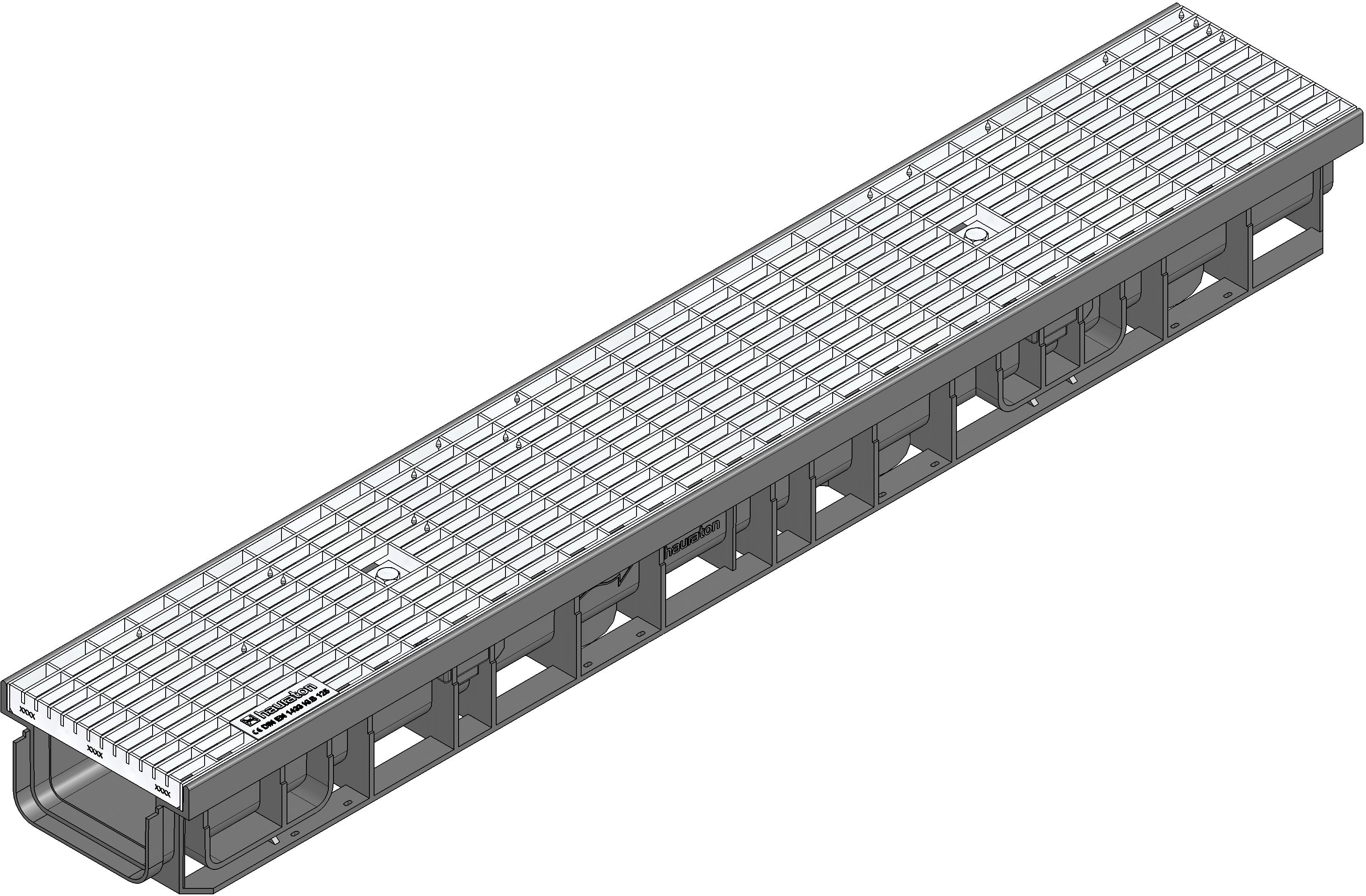

Product image
Technical drawing
Drawing (CAD)
Drawing

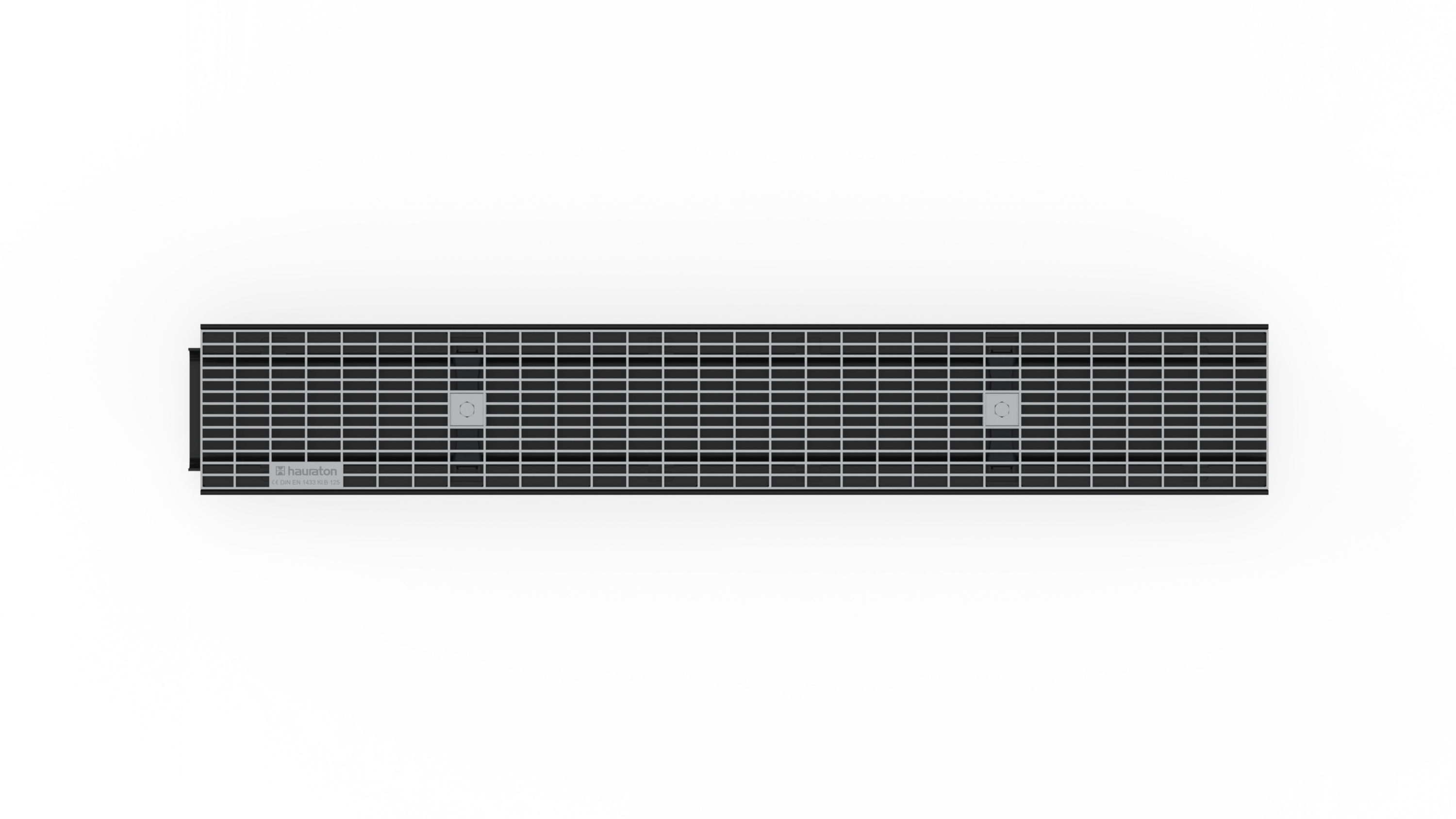

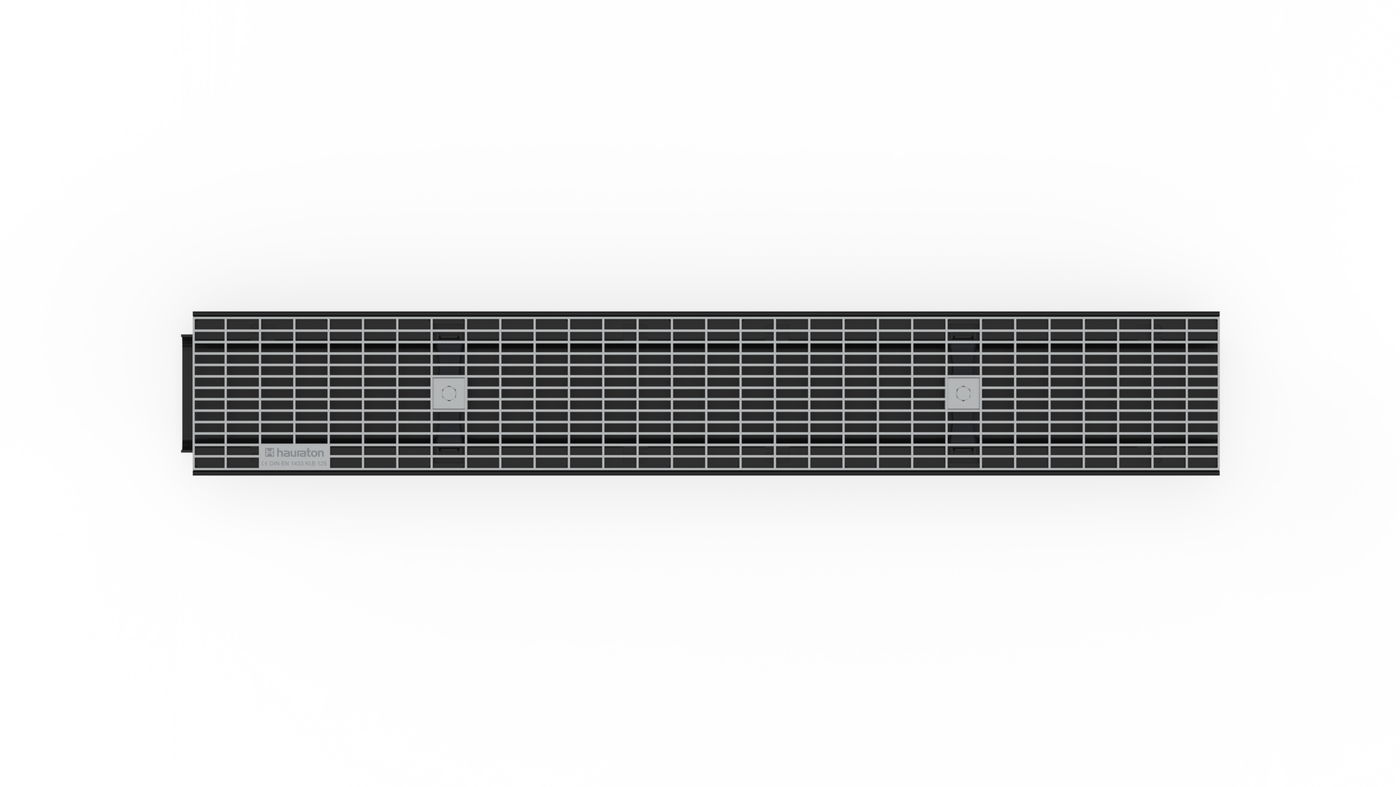

Top view
Data Sheet
Technical information and metrics
Article No.
47096
Length
1000 mm
Width
160 mm
Height
95 mm
Einlegetiefe
20 mm
Weight
5.25 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
1099.0 cm²/m
Nominal size
100
Internal channel cross-section
55 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Channel type 95 with integrated edge frames, with mesh cover MS 30/10 mm, stainless steel, cl. B 125, locked, 1 m
Product description
RECYFIX PRO 100 type 95 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 75, with mesh cover MS 30/10 mm, stainless steel CNS 1.4301, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 1000x160x95 mm, item no. 47096
Packaging unit
77
Declaration of Performance
Tender Texts
Installation example
Asphalt class A 15 - B 125,
Pavement class A 15 - B 125,
water-bound road surfaces class A 15 - B 125,
Pavement class A 15 - B 125,
Cemented floor class A 15 - C 250,
Pavement class C 250,
Concrete class C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
Installation instructions
