Article No. 48636

RECYFIX PRO 100, class C 250

Type 01 with longitudinal ductile iron cover SW 9 mm, galvanised, locked, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

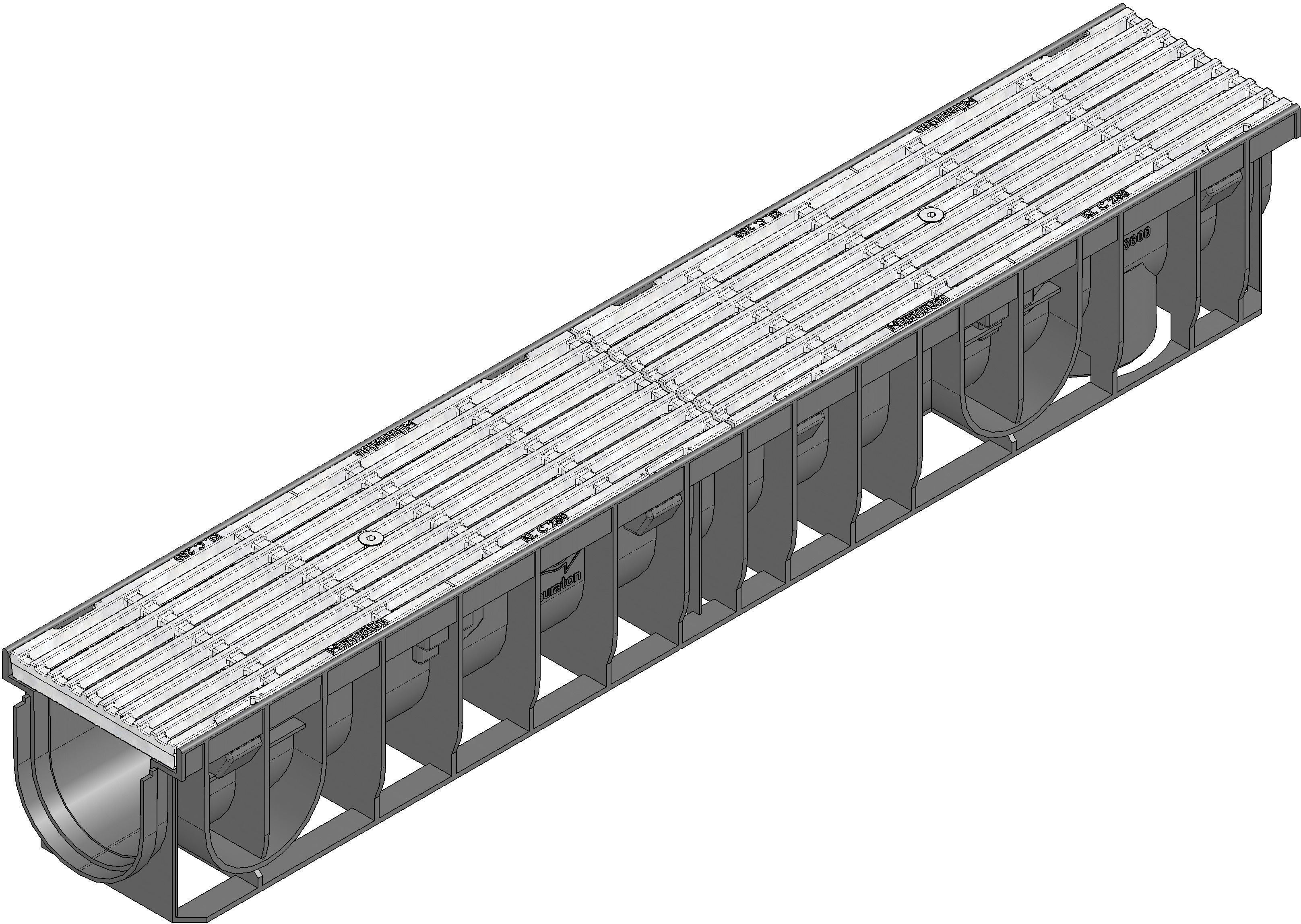

Product image

Top view

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
48636
Length
1000 mm
Width
160 mm
Height
150 mm
Einlegetiefe
20 mm
Weight
9.56 kg
Material
Ductile iron GJS 500-7 galvanised, Galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA)
Intake cross-section
577.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7 galvanised
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Channel type 01 with integrated edge frames, with longitudinal ductile iron cover bar distance 9 mm, galvanised, cl. C 250, locked, 1 m
Product description
RECYFIX PRO 100 type 01 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 110, with longitudinal ductile iron cover bar distance 9 mm, made of spheroidal ductile iron EN-GJS-500-7, galvanised, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 1000x160x150 mm, item no. 48636
Packaging unit
49

Declaration of Performance
Declaration of Performance
Declaration of Performance

Tender Texts

Installation example

Concrete class A 15 - C 250, Flat channel

Installation example

Asphalt class A 15 - B 125,

Installation example

Pavement class A 15 - B 125,

Installation example

water-bound road surfaces class A 15 - B 125,

Installation example

Pavement class A 15 - B 125,

Installation example

Cemented floor class A 15 - C 250,

Installation example

Pavement class C 250,

Installation example

Concrete class C 250,

Installation example

Asphalt class C 250,

Installation example

Pavement class C 250,

Installation example

Asphalt class A 15 - B 125, as double strand

Installation example

Pavement class A 15 - C 250, as double strand

Installation example

Asphalt class C 250, as double strand

Installation example

Concrete class C 250, as double strand

Installation example

Installation instructions
Installation instructions
