Article No. 47467

RECYFIX PRO 100, class C 250

Type 020, with FIBRETEC design slotted cover SW 110/9 mm, in the colour Slate, locked, 0.5 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

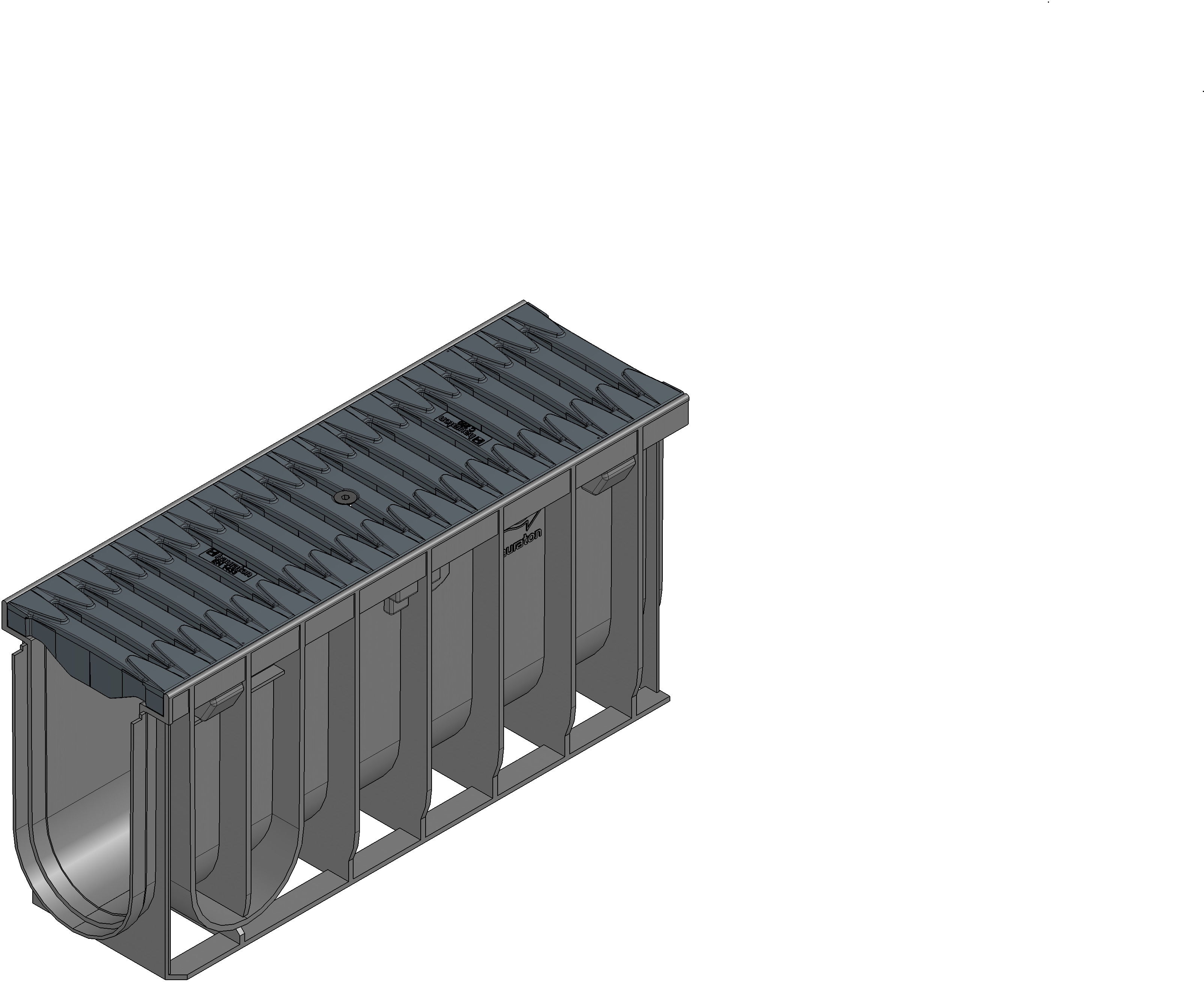

Product image

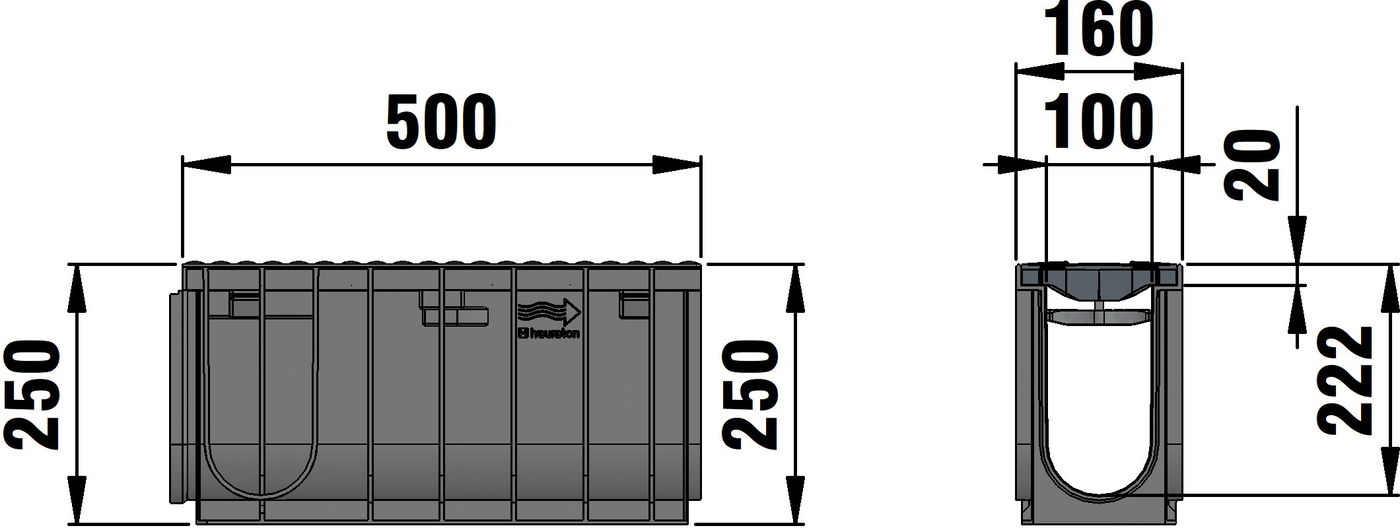

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
47467
Length
500 mm
Width
160 mm
Height
250 mm
Einlegetiefe
20 mm
Weight
3.06 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
372.0 cm²/m
Nominal size
100
Internal channel cross-section
192 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
reinforced Polyamide
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Channel type 020 with integrated edge frames, with FIBRETEC Design slotted cover SW 110/9 mm, in the colour Slate, cl. C 250, locked, 0.5 m
Product description
RECYFIX PRO 100 type 020 - Channel body made of recycled polypropylene, with integrated edge frames, with FIBRETEC design slotted cover SW 110/9 mm, made of fibre-reinforced polyamide, in the colour Slate, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x160x250 mm, item no. 47467
Packaging unit
56

Declaration of Performance
Declaration of Performance
Declaration of Performance

Tender Texts

Installation example

Concrete class A 15 - C 250, Flat channel

Installation example

Asphalt class A 15 - B 125,

Installation example

Pavement class A 15 - B 125,

Installation example

water-bound road surfaces class A 15 - B 125,

Installation example

Pavement class A 15 - B 125,

Installation example

Cemented floor class A 15 - C 250,

Installation example

Pavement class C 250,

Installation example

Concrete class C 250,

Installation example

Asphalt class C 250,

Installation example

Pavement class C 250,

Installation example

Asphalt class A 15 - B 125, as double strand

Installation example

Pavement class A 15 - C 250, as double strand

Installation example

Asphalt class C 250, as double strand

Installation example

Concrete class C 250, as double strand

Installation example
