Article No. 48630

RECYFIX PRO 100, class D 400

Type 01 with longitudinal ductile iron cover SW 9 mm, KTL-coated, locked, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

Product image

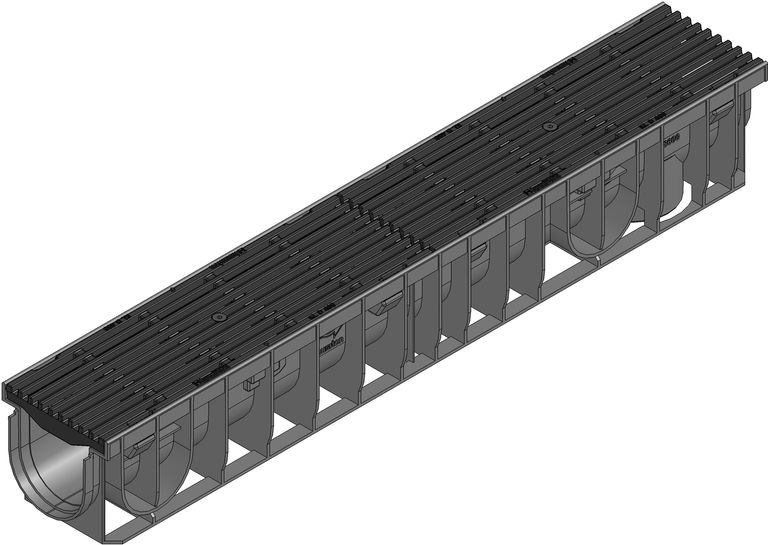

Technical drawing

Drawing (CAD)

Drawing (CAD)

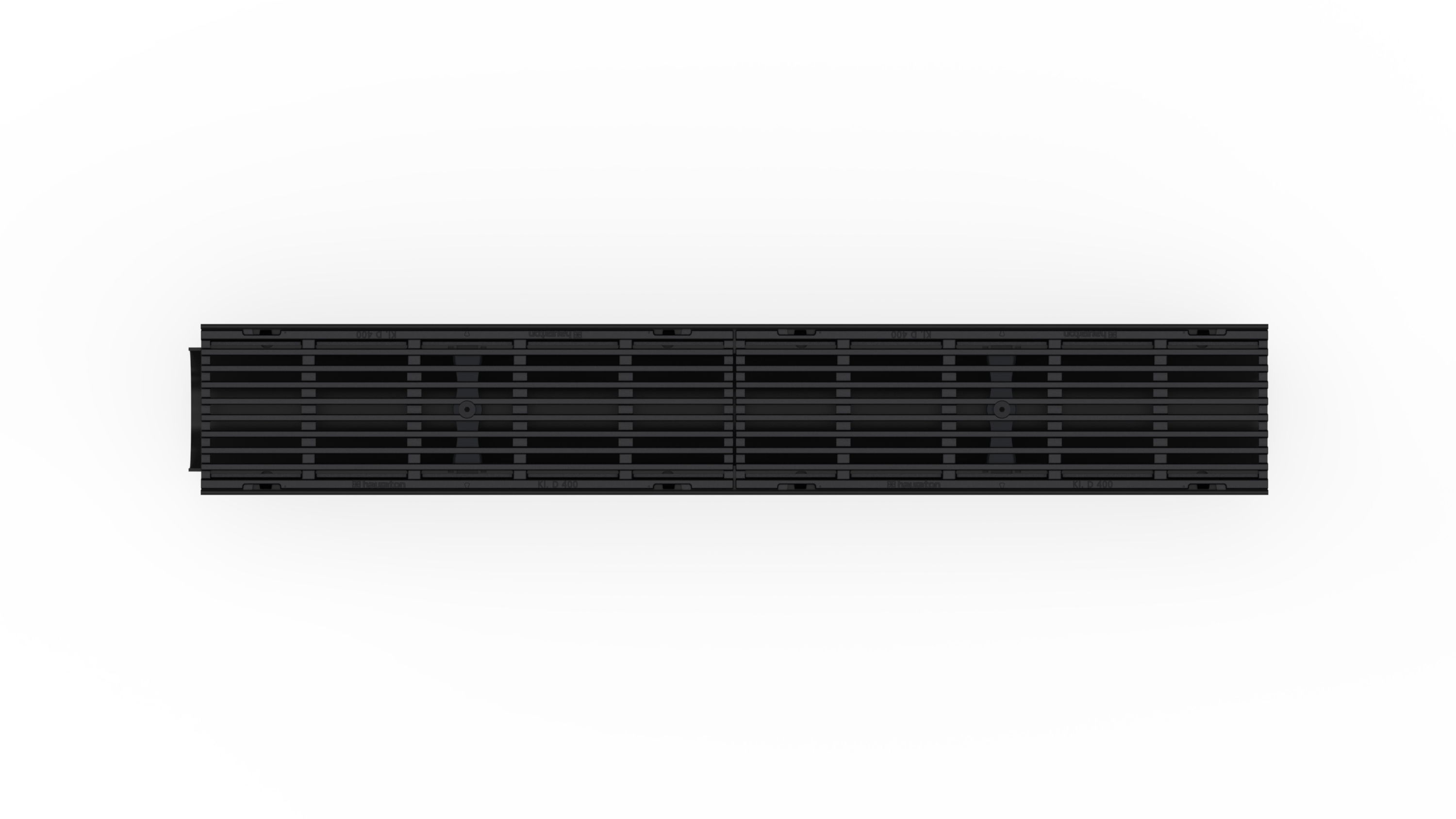

Top view

Data Sheet

Technical information and metrics
Article No.
48630
Length
1000 mm
Width
160 mm
Height
150 mm
Einlegetiefe
20 mm
Weight
10.43 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
528.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Channel type 01 with integrated edge frames, with longitudinal ductile iron cover bar distance 9 mm, KTL-coated, cl. D 400, locked, 1 m
Product description
RECYFIX PRO 100 type 01 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 110, with longitudinal ductile iron cover bar distance 9 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection and locking, load class A 15 - D 400 according to EN 1433, LxWxH 1000x160x150 mm, item no . 48630
