Article No. 48643

RECYFIX PRO 100, class D 400

Type 010 with longitudinal ductile iron cover SW 9 mm, galvanised, locked, 1.0 m

Delivery time on request
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

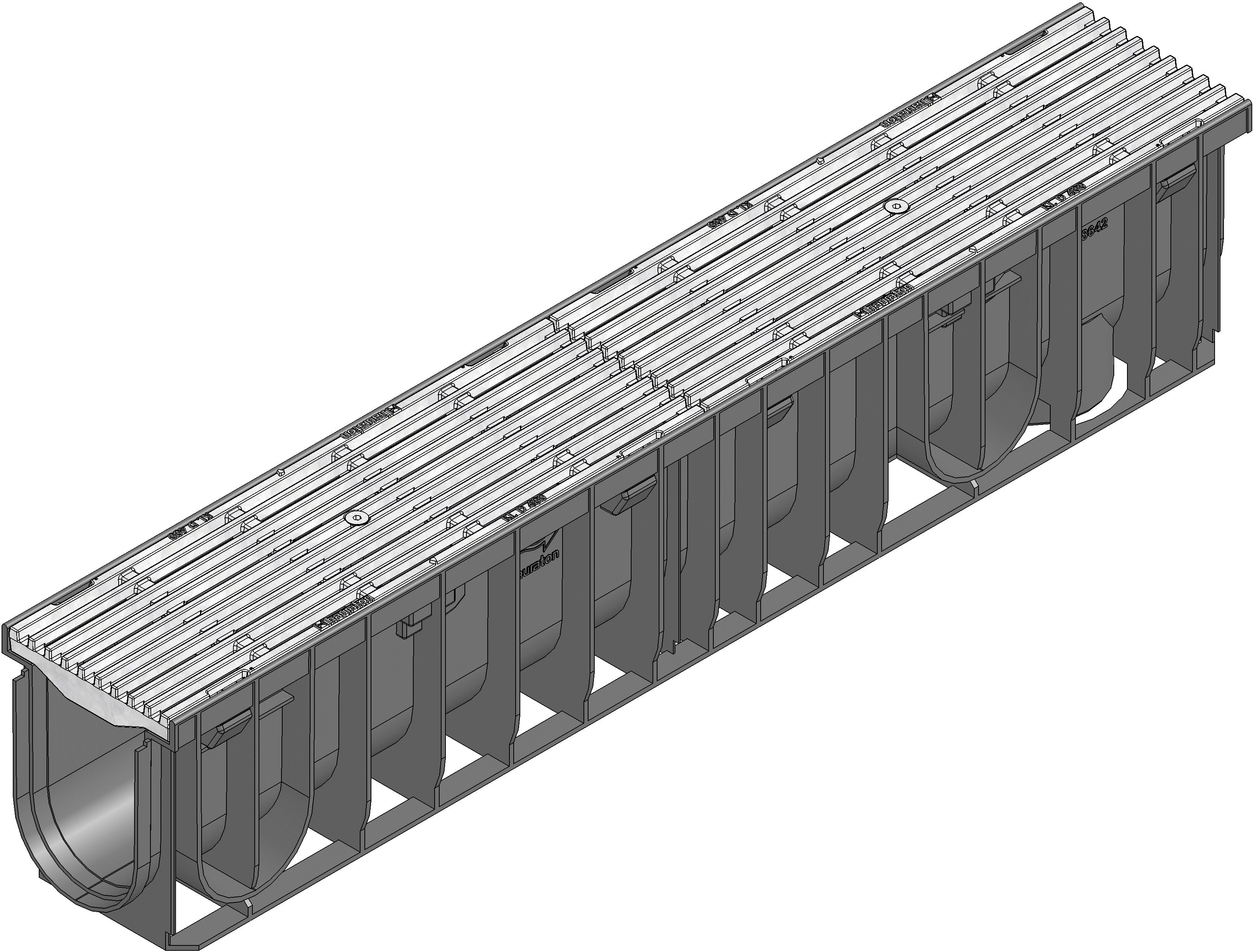

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

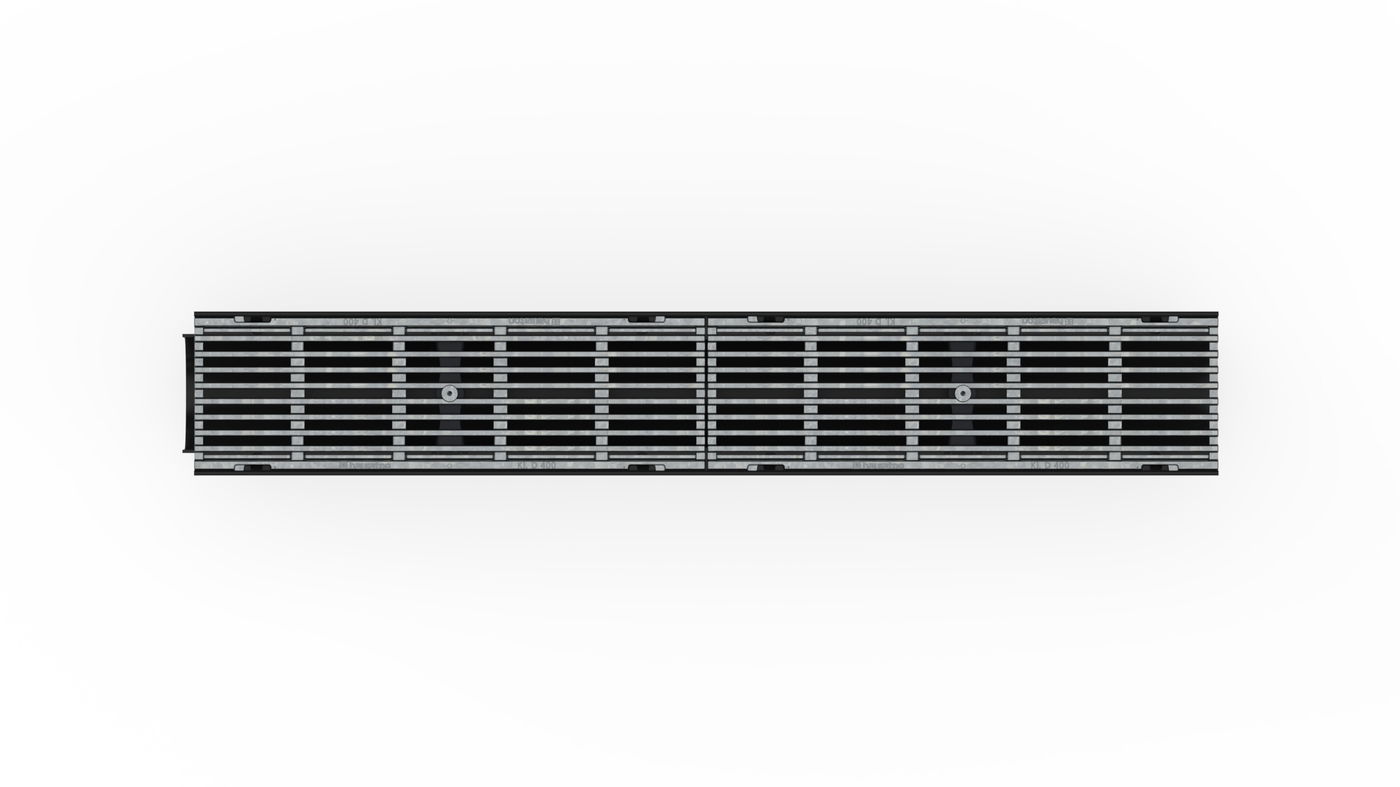

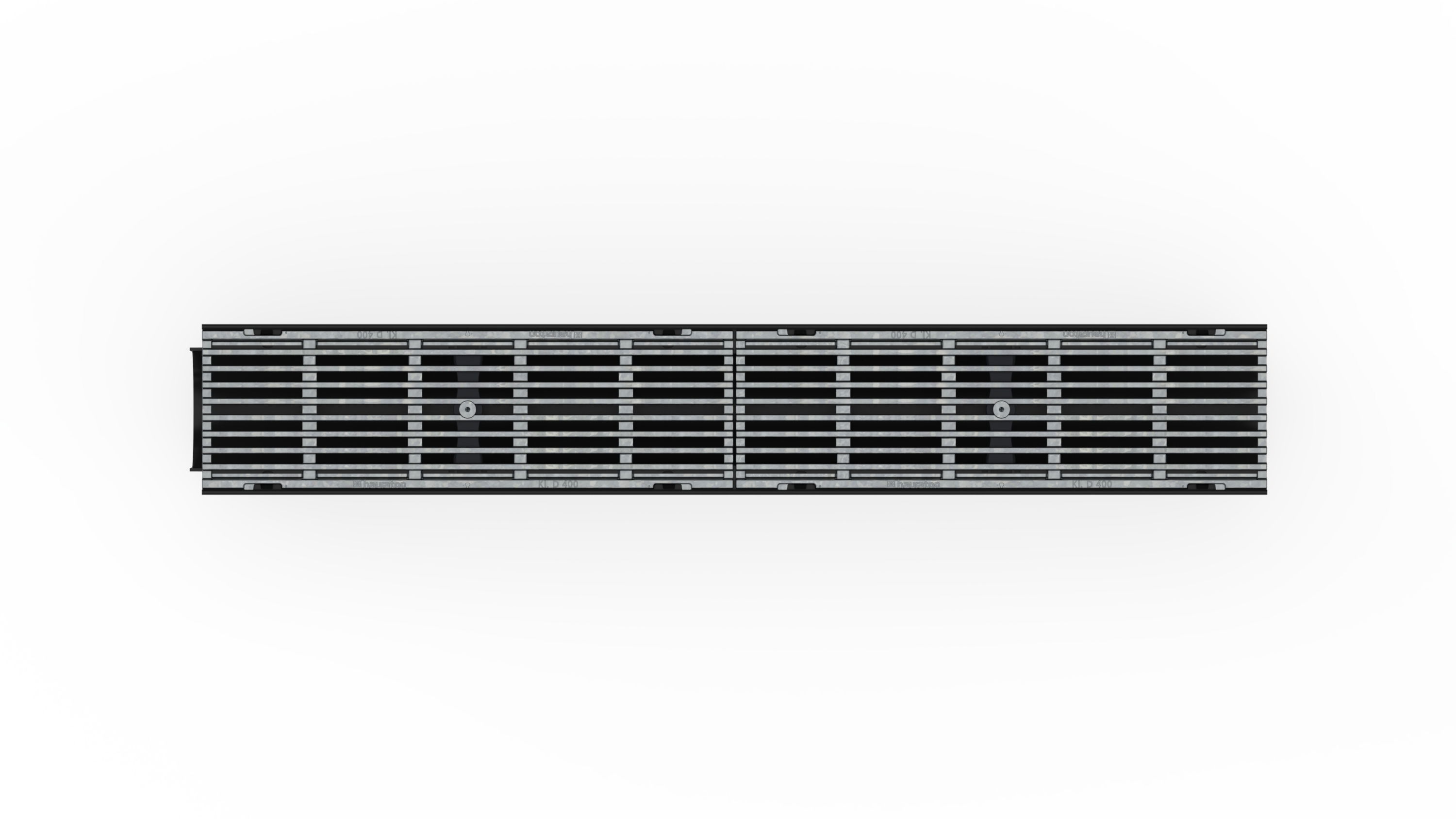

Top view

Data Sheet

Technical information and metrics
Article No.
48643
Length
1000 mm
Width
160 mm
Height
200 mm
Einlegetiefe
20 mm
Weight
11.14 kg
Material
Ductile iron GJS 500-7 galvanised, Galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA)
Intake cross-section
528.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7 galvanised
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Channel type 010 with integrated edge frames, with longitudinal ductile iron cover bar distance 9 mm, galvanised, cl. D 400, locked, 1 m
Product description
RECYFIX PRO 100 type 010 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 110, with longitudinal ductile iron cover bar distance 9 mm, made of spheroidal ductile iron EN-GJS-500-7, galvanised, with longitudinal slide protection and locking, load class A 15 - D 400 according to EN 1433, LxWxH 1000x160x200 mm, item no. 48643
Packaging unit
35

Declaration of Performance
Declaration of Performance
Declaration of Performance

Tender Texts

Installation example

Concrete class D 400,

Installation example

Asphalt class A 15 - B 125,

Installation example

Pavement class A 15 - B 125,

Installation example

water-bound road surfaces class A 15 - B 125,

Installation example

Pavement class A 15 - B 125,

Installation example

Cemented floor class A 15 - C 250,

Installation example

Pavement class C 250,

Installation example

Concrete class C 250,

Installation example

Asphalt class C 250,

Installation example

Pavement class C 250,

Installation example

Asphalt class A 15 - B 125, as double strand

Installation example

Pavement class A 15 - C 250, as double strand

Installation example

Asphalt class C 250, as double strand

Installation example

Concrete class C 250, as double strand

Installation example
