Article No. 48642
RECYFIX PRO 100
Type 010, 1.0 m
Smaller quantities can be delivered immediately from stock, items will soon be available again in larger quantities
Questions?
Our experienced planning team will be happy to help you.
Get in touch

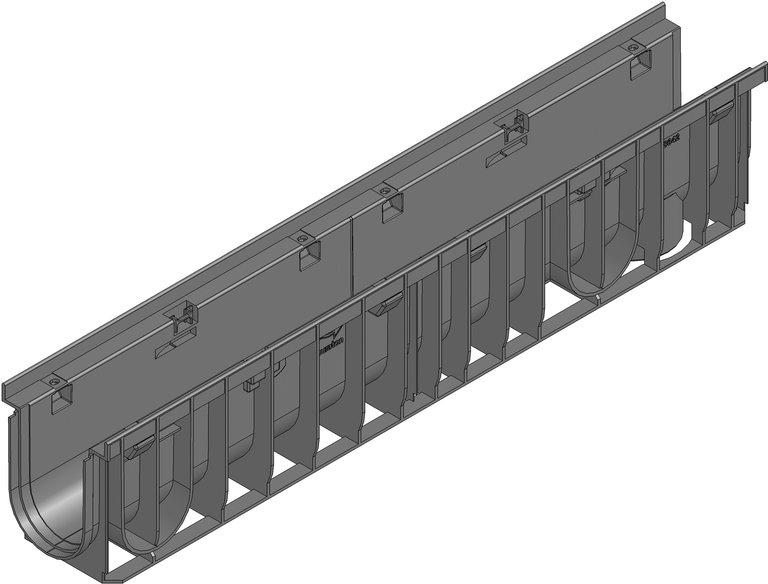

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
48642
Length
1000 mm
Width
160 mm
Height
200 mm
Weight
3.02 kg
Material
recycled polypropylene
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
142 cm²
Fall
-
Fixing type
Loose blatant, Locking handle
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Channel body type 010 with integrated edge frames, 1 m
Product description
RECYFIX PRO 100 type 010 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 110, load class A 15 - D 400 according to EN 1433, LxWxH 1000x160x200 mm, item no. 48642
Packaging unit
42
Tender Texts
Installation example
Pavement class A 15,
Pavement class B 125,
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
Installation instructions
