Article No. 47137
RECYFIX PRO 150, class C 250
Type 01 with longitudinal ductile iron cover SW 9 mm, KTL-coated, locked, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

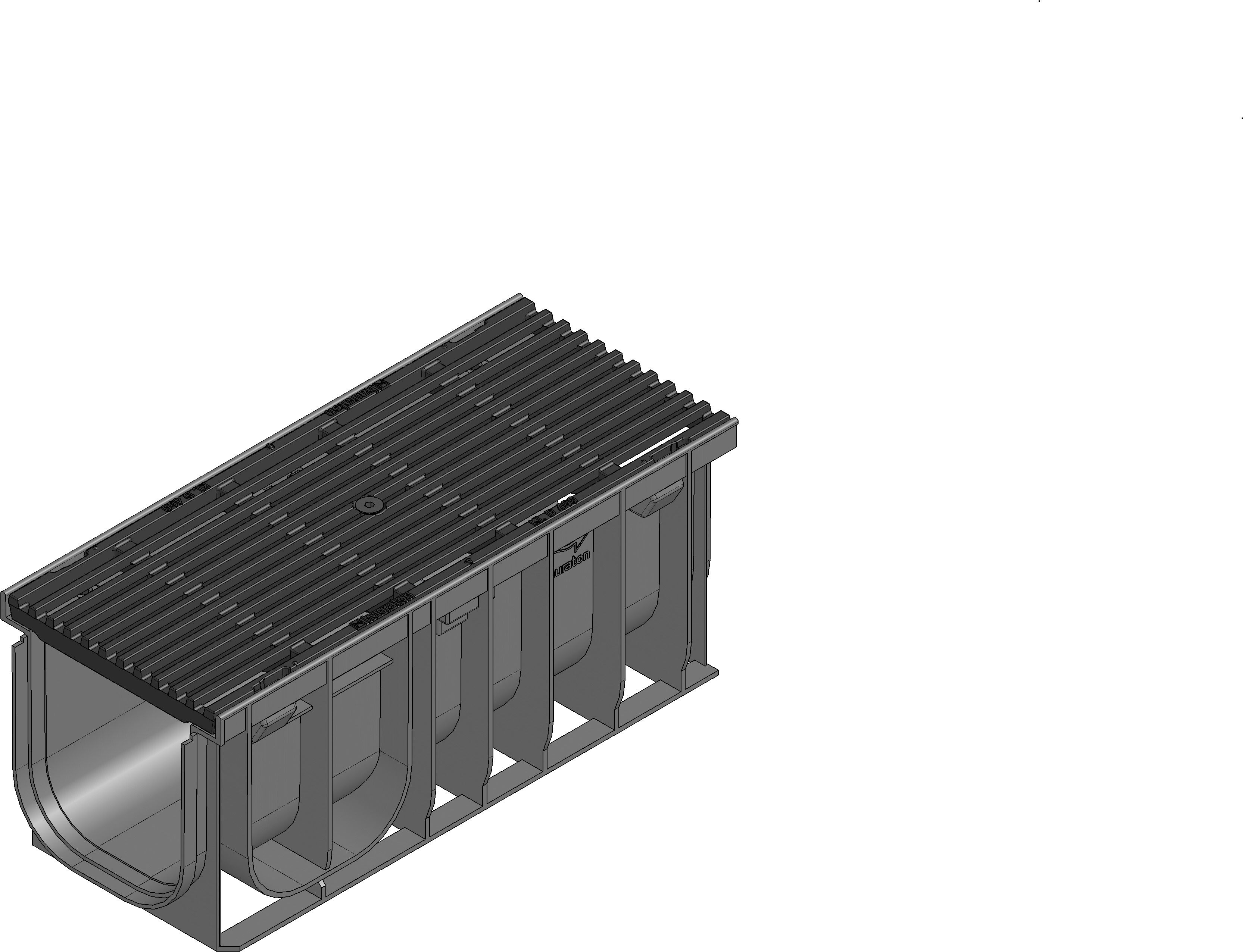

Product image

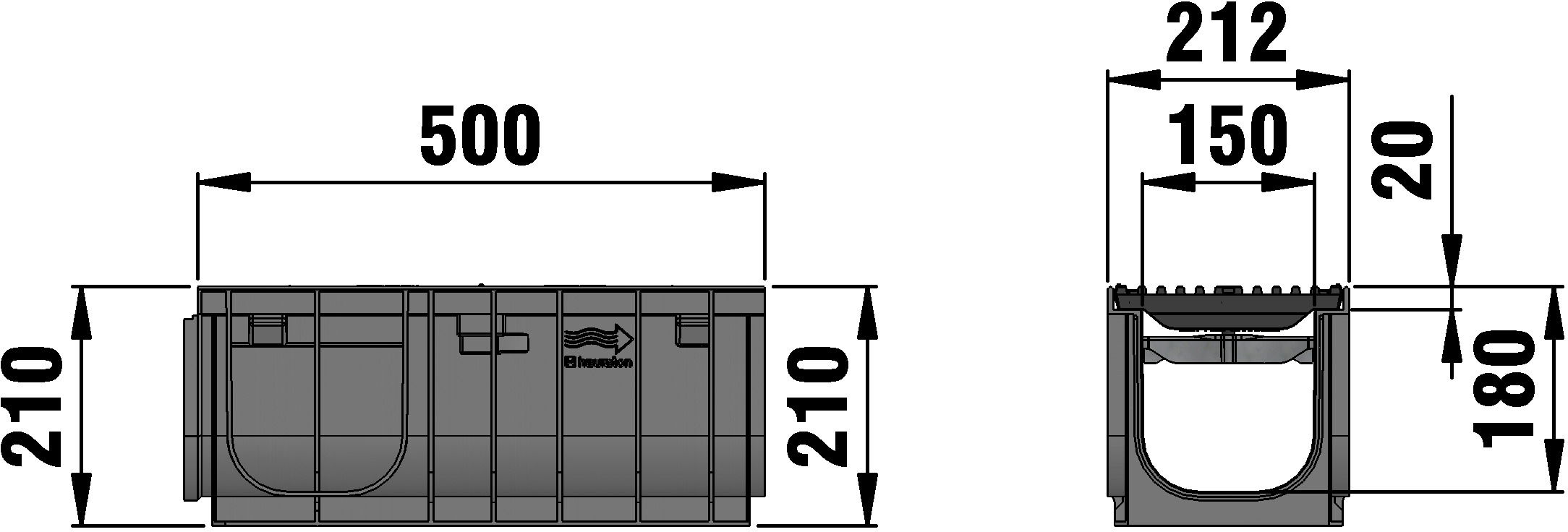

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
47137
Length
500 mm
Width
212 mm
Height
210 mm
Einlegetiefe
20 mm
Weight
8.63 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled, modified Polypropylene, reinforced Polyamide, Steel black galvanised
Intake cross-section
740.0 cm²/m
Nominal size
150
Internal channel cross-section
230 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 150 Channel type 01 with integrated edge frames, with longitudinal ductile iron cover bar distance 9 mm, KTL-coated, cl. C 250, locked, 0.5 m
Product description
RECYFIX PRO 150 type 01 - Channel body made of recycled polypropylene, with integrated edge frames, with longitudinal ductile iron cover made of spheroidal ductile iron EN-GJS-500-7, bar distance 9 mm, KTL-coated, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, CE compliant, LxWxH 500x212x210 mm, item no. 47137
Packaging unit
50
Declaration of Performance
Tender Texts
Installation example
Concrete class A 15 - C 250, Flat channel
Asphalt class A 15 - B 125,
Pavement class A 15 - B 125,
Pavement class A 15 - B 125,
Pavement class A 15 - C 250,
Pavement class C 250,
Concrete class C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
Installation instructions
