Article No. 47233

RECYFIX PRO 200, class B 125

Type 115 with FIBRETEC design slotted cover, SW 200/10 mm, in the colour black, locked, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

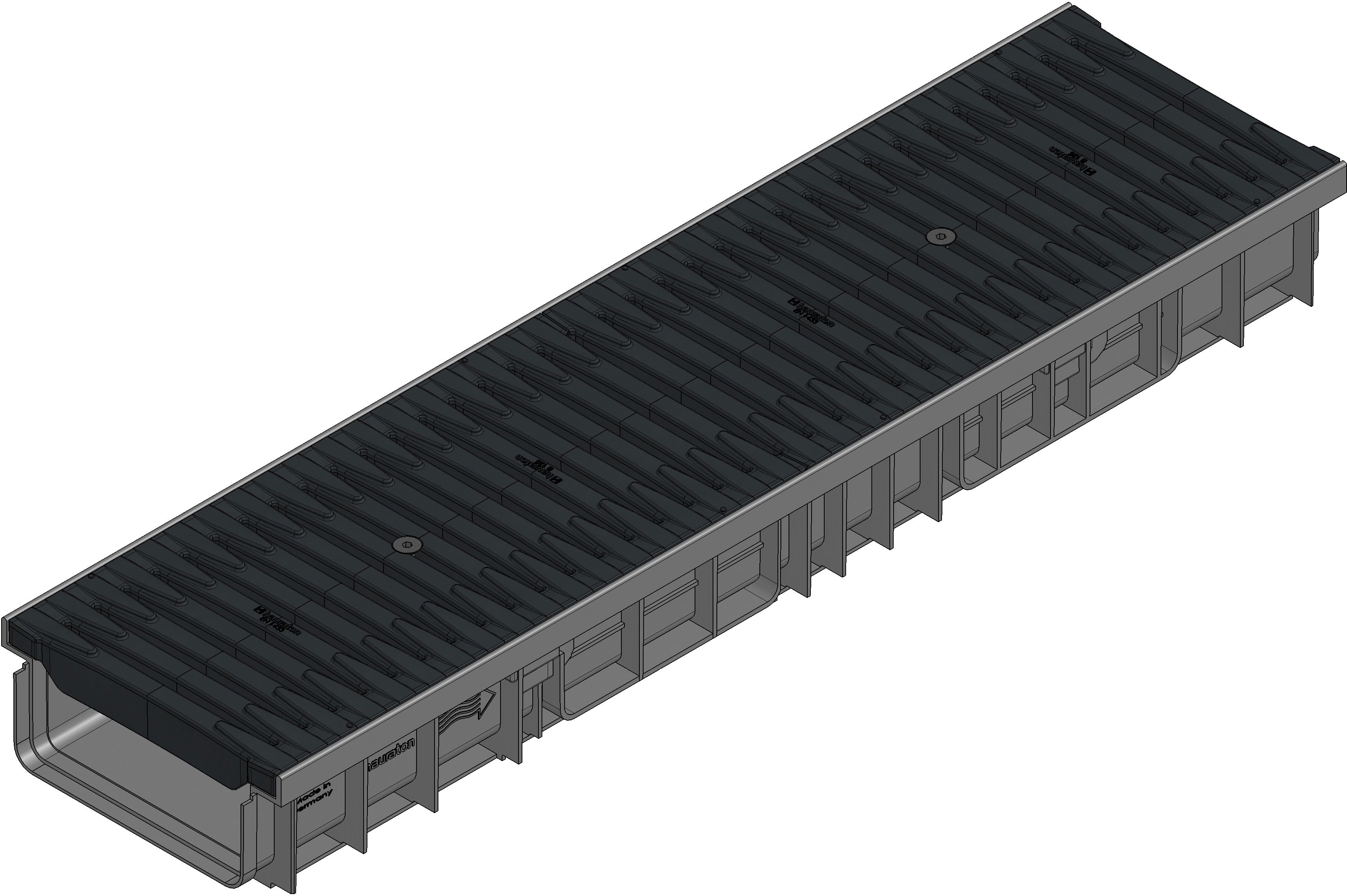

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Top view

Data Sheet

Technical information and metrics
Article No.
47233
Length
1000 mm
Width
262 mm
Height
115 mm
Einlegetiefe
20 mm
Weight
7.03 kg
Material
Galvanised steel, recycled, modified Polypropylene, reinforced Polyamide, Steel black galvanised
Intake cross-section
656.0 cm²/m
Nominal size
200
Internal channel cross-section
150 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
reinforced Polyamide
Regulations
EN 1433, DIN 51130, AS 4586, DIN 19580, EN 16165
Sales text
RECYFIX PRO 200 Channel type 115 with integrated edge frames, with FIBRETEC Design slotted cover SW 200/10 mm, black, cl. B 125, locked, 1 m
Product description
RECYFIX PRO 200 type 115 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 75/110, with FIBRETEC design slotted cover SW 200/10 mm, made of fibre-reinforced polyamide, black, with longitudinal slide protection and locking, load class A 15 - B 125 according to EN 1433, LxWxH 1000x262x115 mm, item no. 47233
Packaging unit
40

Declaration of Performance
Declaration of Performance
Declaration of Performance

Tender Texts

Installation example

water-bound road surfaces class A 15 - B 125,

Installation example

Asphalt class A 15 - B 125,

Installation example

Pavement class A 15 - B 125,

Installation example

Pavement class A 15 - B 125,

Installation example

Pavement class A 15 - C 250,

Installation example

Pavement class C 250,

Installation example

Concrete class C 250,

Installation example

Asphalt class C 250,

Installation example

Pavement class C 250,

Installation example

Asphalt class A 15 - B 125, as double strand

Installation example

Pavement class A 15 - C 250, as double strand

Installation example

Asphalt class C 250, as double strand

Installation example

Concrete class C 250, as double strand

Installation example

Installation instructions
Installation instructions
