Article No. 47235
RECYFIX PRO 200, class B 125
Type 115 with mesh cover MS 30/10 mm, galvanised, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

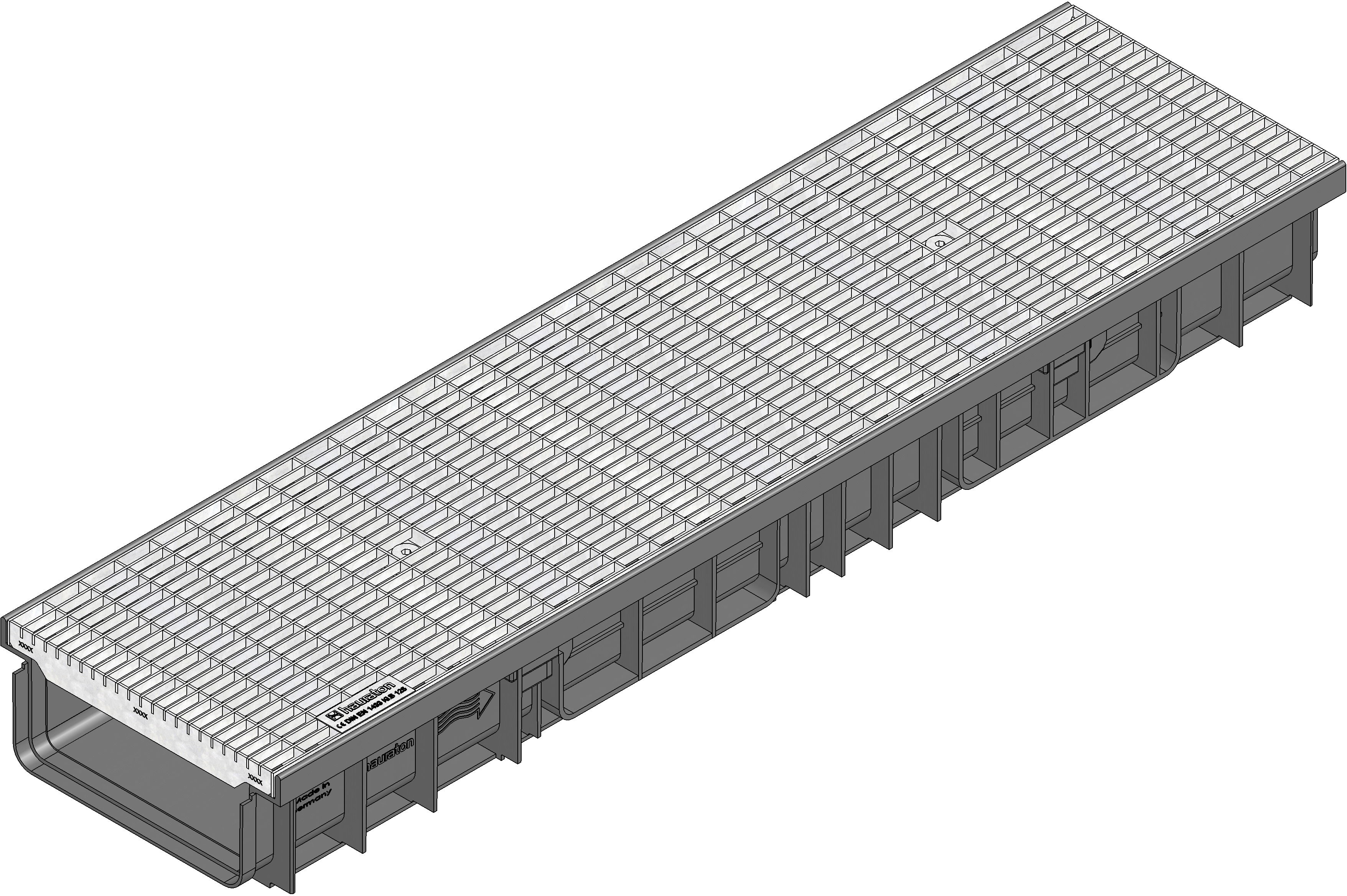

Product image
Technical drawing
Drawing (CAD)

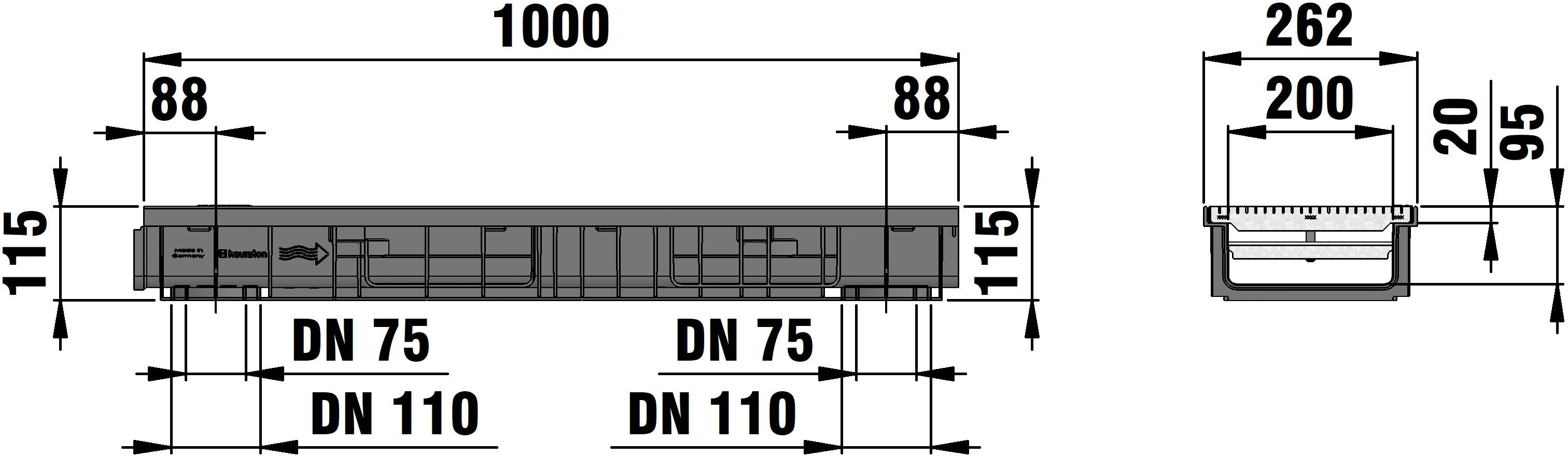

Drawing

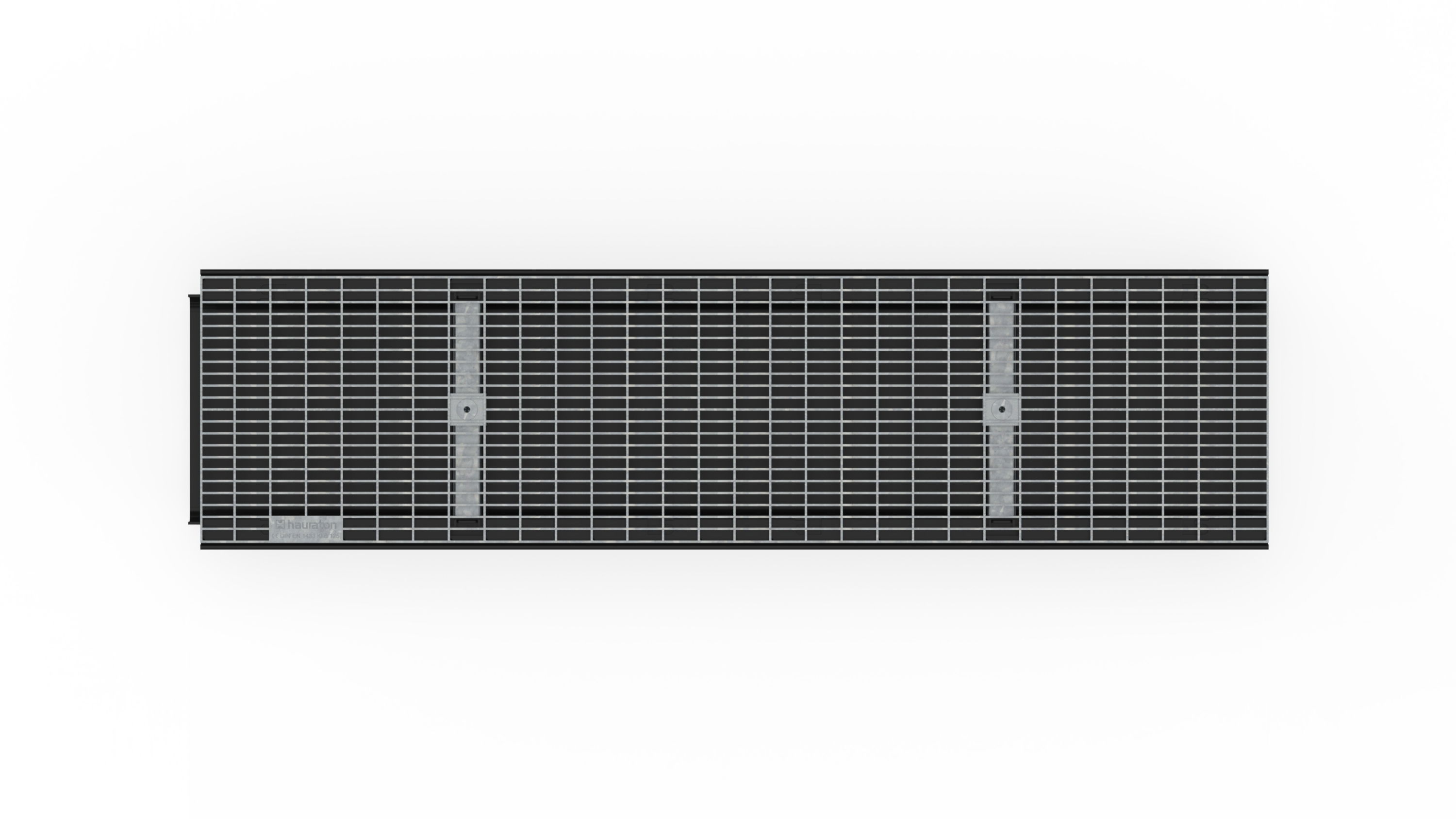

Top view
Data Sheet
Technical information and metrics
Article No.
47235
Length
1000 mm
Width
262 mm
Height
115 mm
Einlegetiefe
20 mm
Weight
10.08 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene
Intake cross-section
1873.0 cm²/m
Nominal size
200
Internal channel cross-section
150 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 200 Channel type 115 with integrated edge frames, with mesh cover MS 30/10 mm, galvanised, cl. B 125, locked, 1 m
Product description
RECYFIX PRO 200 type 115 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 75/110, with mesh cover MS 30/10 mm, galvanised, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 1000x262x115 mm, item no. 47235
Packaging unit
36
Declaration of Performance
Tender Texts
Installation example
water-bound road surfaces class A 15 - B 125,
Asphalt class A 15 - B 125,
Pavement class A 15 - B 125,
Pavement class A 15 - B 125,
Pavement class A 15 - C 250,
Pavement class C 250,
Concrete class C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
Installation instructions
