Article No. 10165
RECYFIX PRO 200, class C 250
Type 010 with FIBRETEC design slotted cover, SW 200/10 mm, in the colour black, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

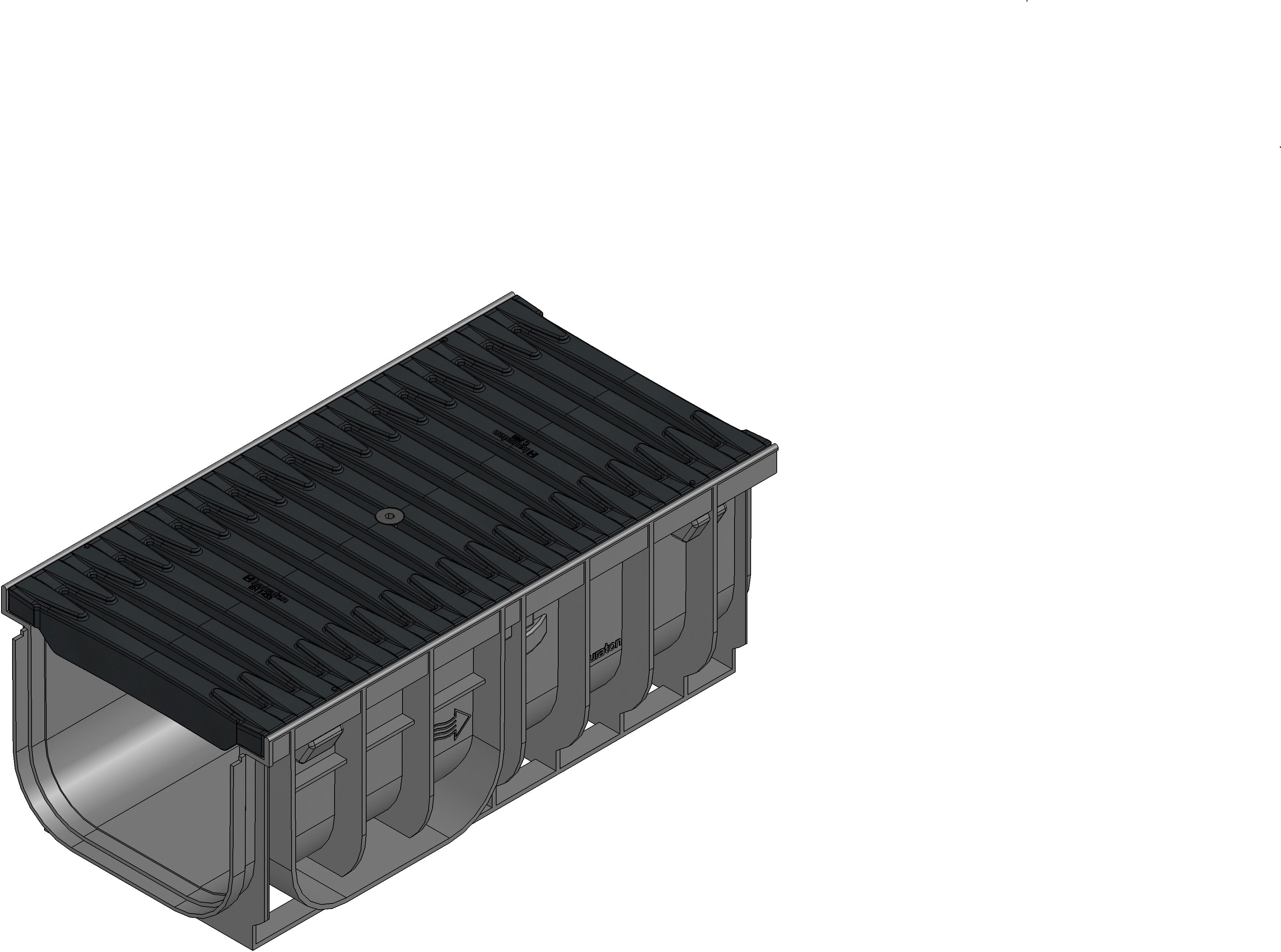

Product image

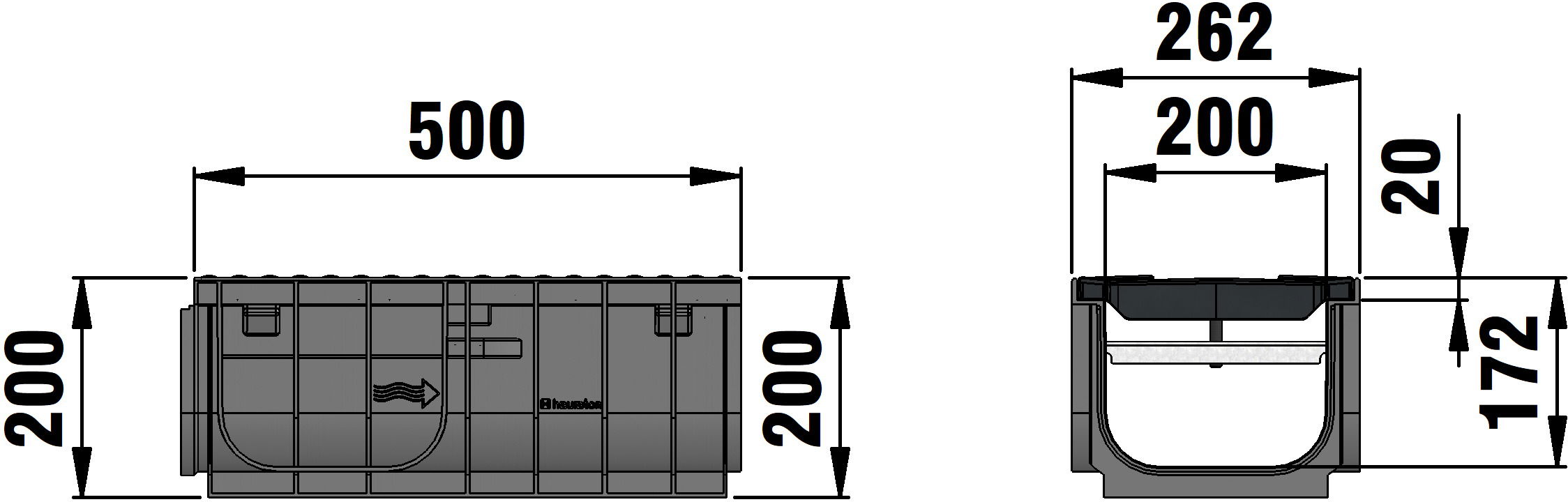

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10165
Length
500 mm
Width
262 mm
Height
200 mm
Einlegetiefe
20 mm
Weight
4.30 kg
Material
Galvanised steel, recycled, modified Polypropylene, reinforced Polyamide, Steel black galvanised
Intake cross-section
656.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
reinforced Polyamide
Regulations
EN 1433, DIN 51130, AS 4586, DIN 19580, EN 16165
Sales text
RECYFIX PRO 200 Channel type 010 with integrated edge frames, with FIBRETEC Design slotted cover SW 200/10 mm, black, cl. C 250, locked, 0.5 m
Product description
RECYFIX PRO 200 type 010 - Channel body made of recycled polypropylene, with integrated edge frames, with FIBRETEC design slotted cover SW 200/10 mm, made of fibre-reinforced polyamide, black, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x262x200 mm, item no. 10165
Packaging unit
40
Declaration of Performance
Tender Texts
Installation example
Concrete class A 15 - C 250, Flat channel
Asphalt class A 15 - B 125,
Pavement class A 15 - B 125,
Pavement class A 15 - B 125,
Pavement class A 15 - C 250,
Pavement class C 250,
Concrete class C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
Installation instructions
