Article No. 47273

RECYFIX PRO 200, class D 400

Type 010 with ductile iron design cover METROPOLIS, black, KTL-coated, locked, 0.5 m

Delivery time on request
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

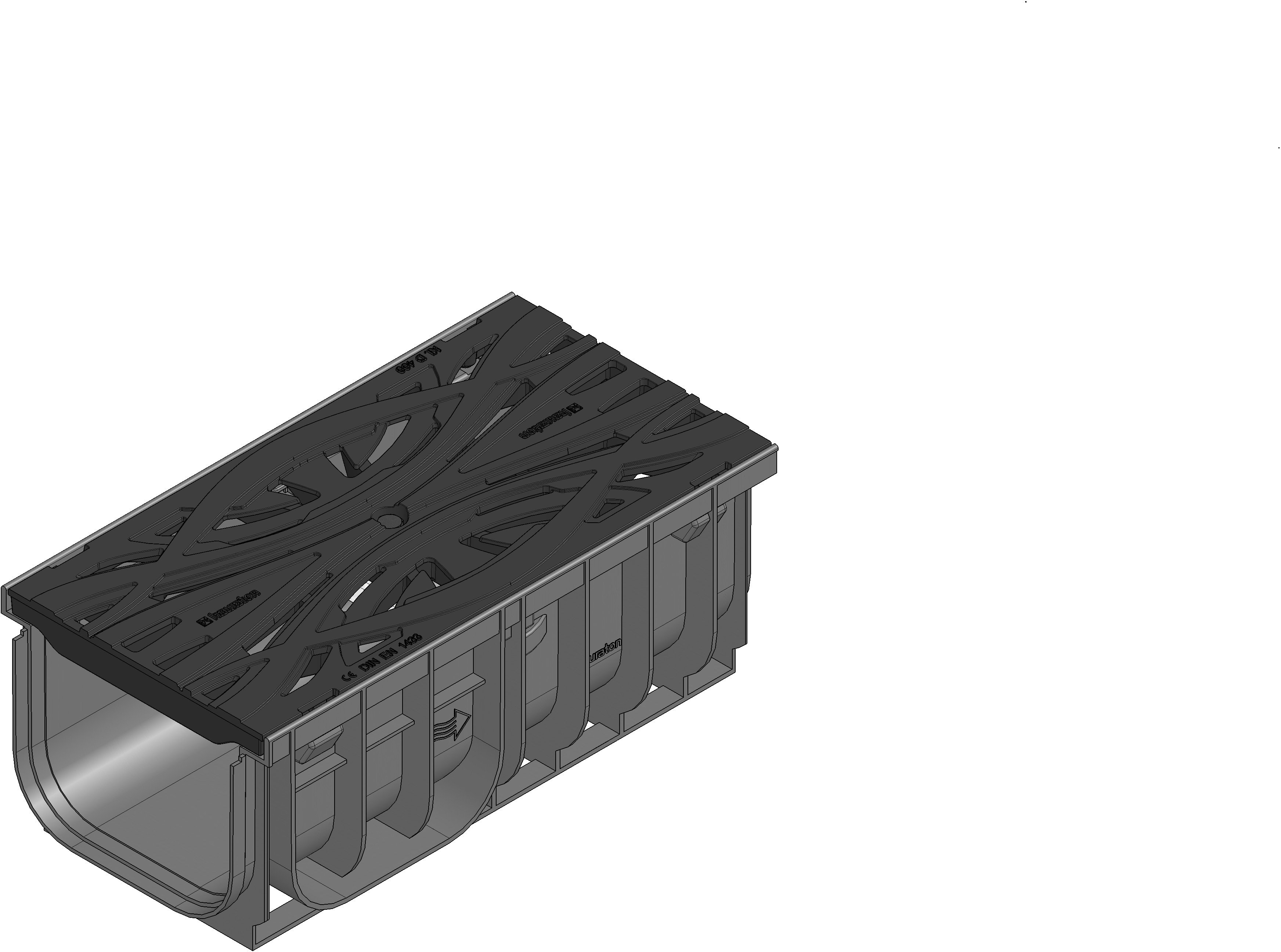

Product image

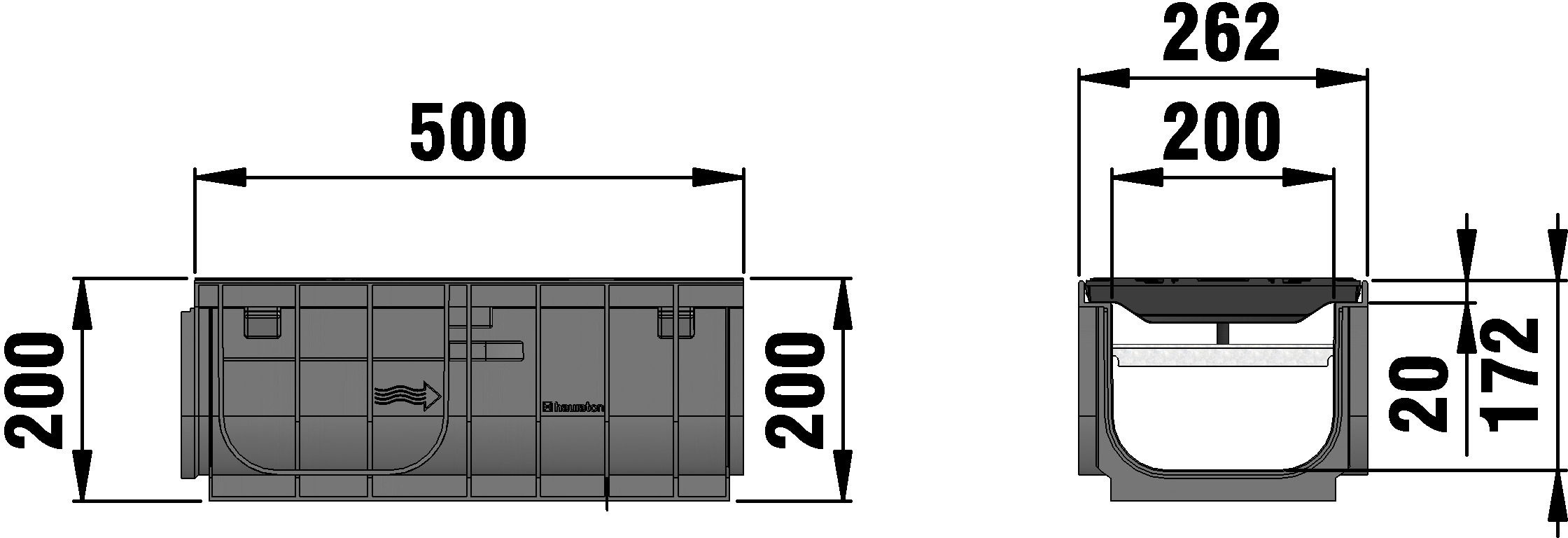

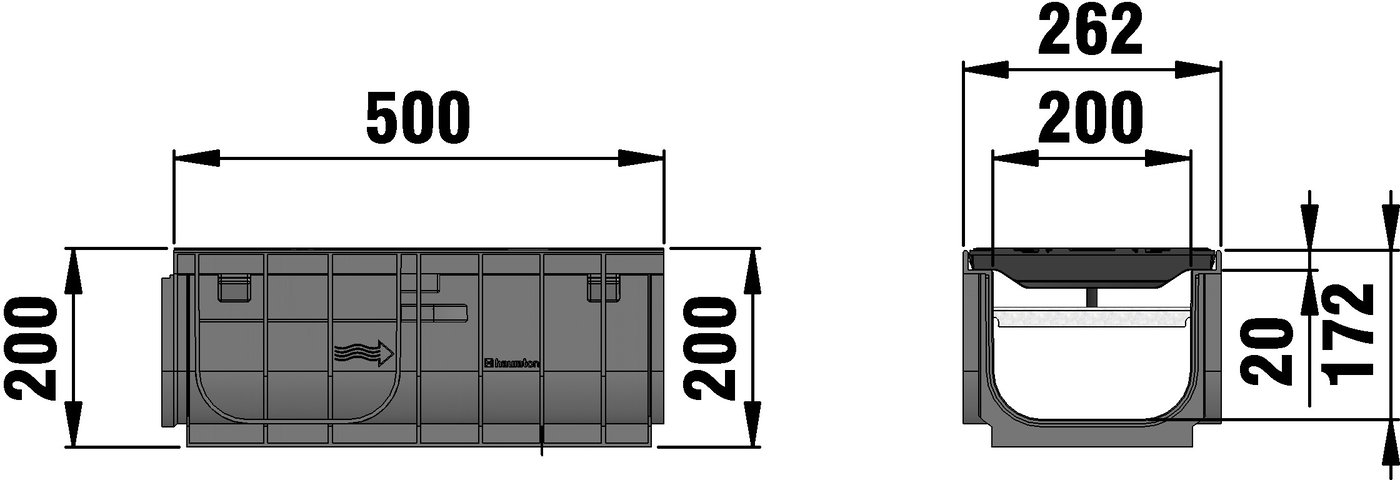

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
47273
Length
500 mm
Width
262 mm
Height
200 mm
Einlegetiefe
20 mm
Weight
12.30 kg
Material
Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, recycled, modified Polypropylene
Intake cross-section
279.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 200 Channel type 010 with integrated edge frames, with ductile iron cover Metropolis, KTL-coated, cl. D 400, locked, 0.5 m
Product description
RECYFIX PRO 200 type 010 - Channel body made of recycled polypropylene, with integrated edge frames, with ductile iron cover Metropolis, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection and locking, load class A 15 - D 400 according to EN 1433, LxWxH 500x262x200 mm, item no. 47273
Packaging unit
40

Declaration of Performance
Declaration of Performance
Declaration of Performance

Tender Texts

Installation example

Concrete class D 400,

Installation example

Asphalt class A 15 - B 125, channel height ≥ 150 mm

Installation example

Pavement class A 15 - B 125, channel height ≥ 150 mm

Installation example

Pavement class A 15 - B 125, Type 115

Installation example

Pavement class A 15 - C 250,

Installation example

Pavement class C 250, Type 115

Installation example

Concrete class C 250, channel height ≥ 150 mm

Installation example

Asphalt class C 250, channel height ≥ 150 mm

Installation example

Pavement class C 250, channel height ≥ 150 mm

Installation example

Asphalt class A 15 - B 125, as double strand

Installation example

Pavement class A 15 - C 250, as double strand

Installation example

Asphalt class C 250, as double strand

Installation example

Concrete class C 250, as double strand

Installation example

Installation instructions
Installation instructions
