Article No. 47245
RECYFIX PRO 200, class D 400
Type 010 with G-TEC Ductile iron cover, SW 9 mm, KTL-coated, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

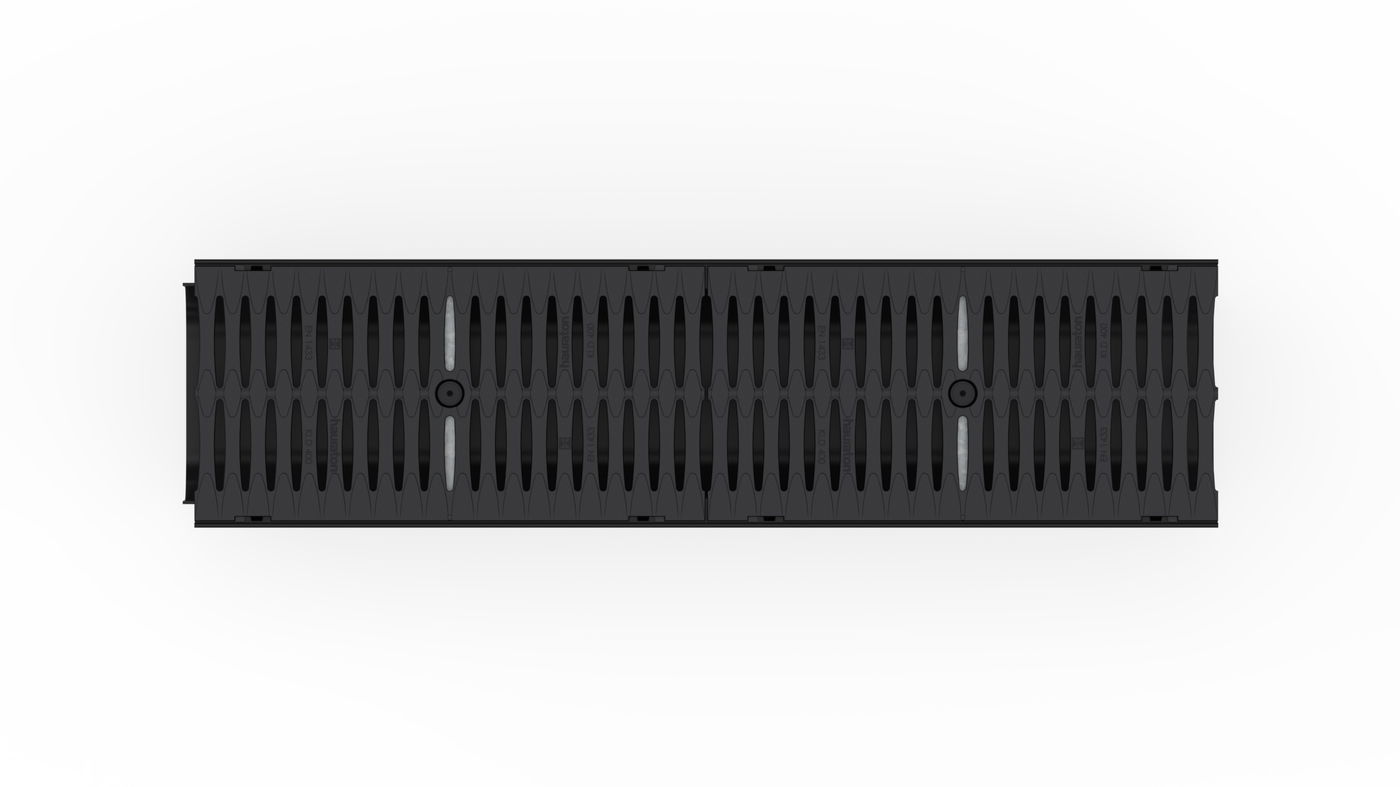

Product image

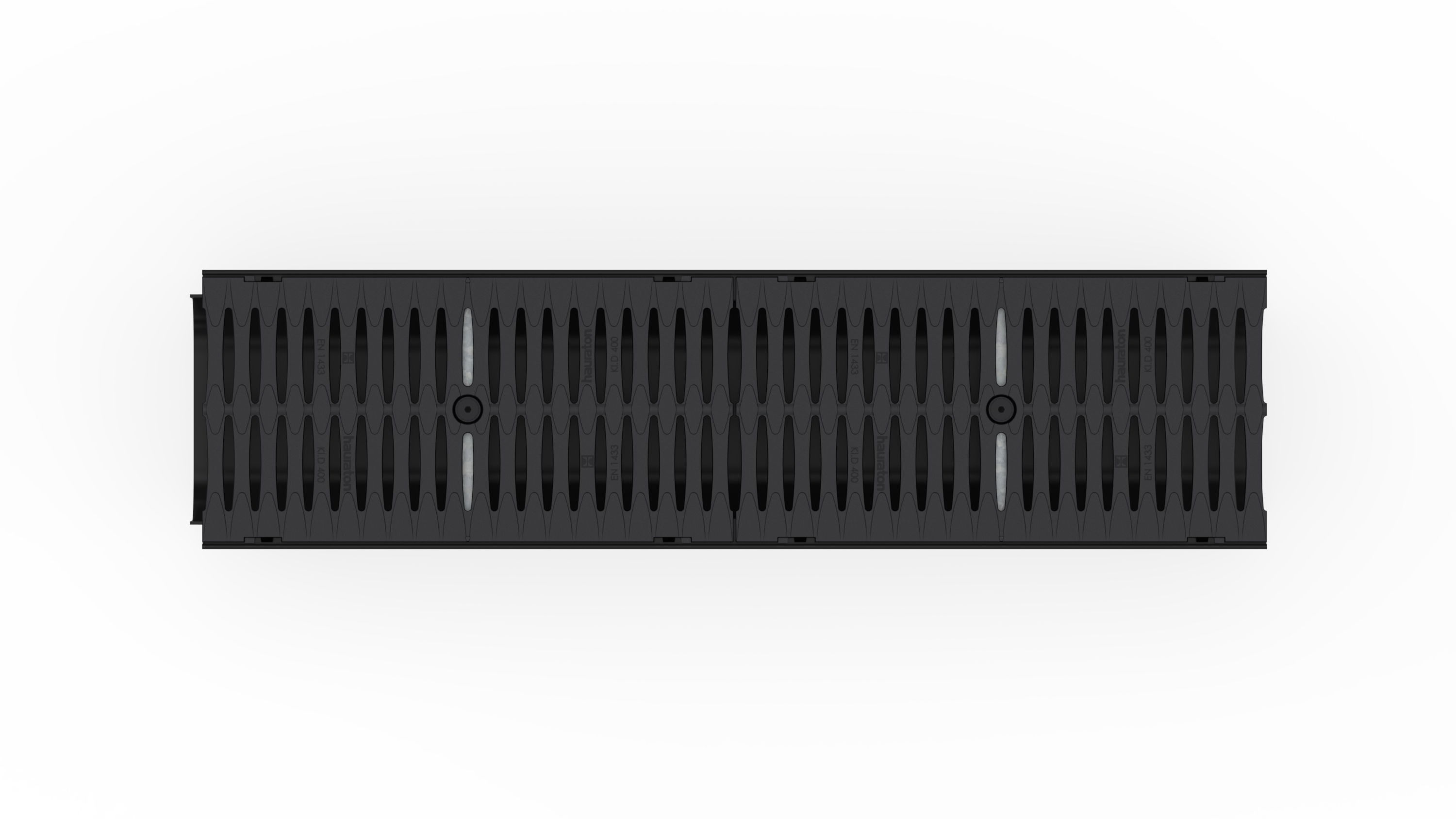

Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
47245
Length
1000 mm
Width
262 mm
Height
200 mm
Einlegetiefe
20 mm
Weight
20.23 kg
Material
Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
596.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, AS 4586, DIN 19580
Sales text
RECYFIX PRO 200 Channel type 010 with integrated edge frames, with G-Tec-ductile iron cover 2x SW 85/9 mm, KTL-coated, cl. D 400, locked, 1 m
Product description
RECYFIX PRO 200 type 010 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 110/160, with G-TEC ductile iron cover 2x SW 85/9 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection and locking, load class A 15 - D 400 according to EN 1433, LxWxH 1000x262x200 mm, item no. 47245
Packaging unit
20
Declaration of Performance
Tender Texts
Installation example
Concrete class D 400,
Asphalt class A 15 - B 125,
Pavement class A 15 - B 125,
Pavement class A 15 - B 125,
Pavement class A 15 - C 250,
Pavement class C 250,
Concrete class C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
Installation instructions
