Article No. 41277
RECYFIX STANDARD 100, class A 15
Type 0105 with perforated cover "Elegance", galvanised, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

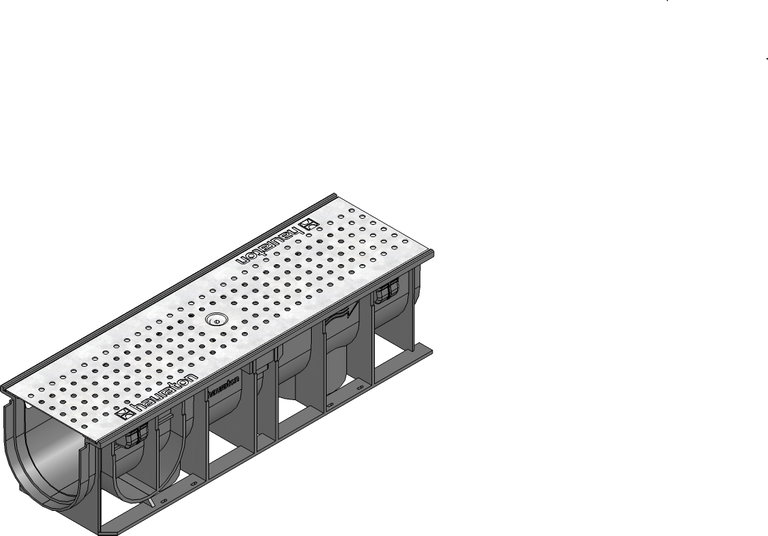

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
41277
Length
500 mm
Width
150 mm
Height
134 mm
Einlegetiefe
3 mm
Weight
1.96 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled polypropylene, RECYFIX Material (recycled PA)
Intake cross-section
100.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material cover
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 Channel type 01 with perforated cover Ø 6 mm, galvanised, cl. A 15, locked, 0.5 m
Product description
RECYFIX STANDARD 100 type 01 - Channel body made of recycled polypropylene, with perforated cover Ø 6 mm, galvanised, overlying, with locking, load class A 15 according to EN 1433, LxWxH 500x150x134 mm, item no. 41277
Packaging unit
98
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125, Type 60, Type 80
Cemented floor class A 15 - C 250,
Pavement class C 250, Type 60, Type 80
Asphalt class A 15 - B 125, channel height ≥ 134 mm
Asphalt class C 250, channel height ≥ 134 mm
Pavement class A 15 - B 125, channel height ≥ 134 mm
Concrete class C 250, channel height ≥ 134 mm
Pavement class C 250, channel height ≥ 134 mm
Installation instructions
