Article No. 40177
RECYFIX STANDARD 150, class B 125
Type 01 with mesh cover MS 30/10 mm, galvanised, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

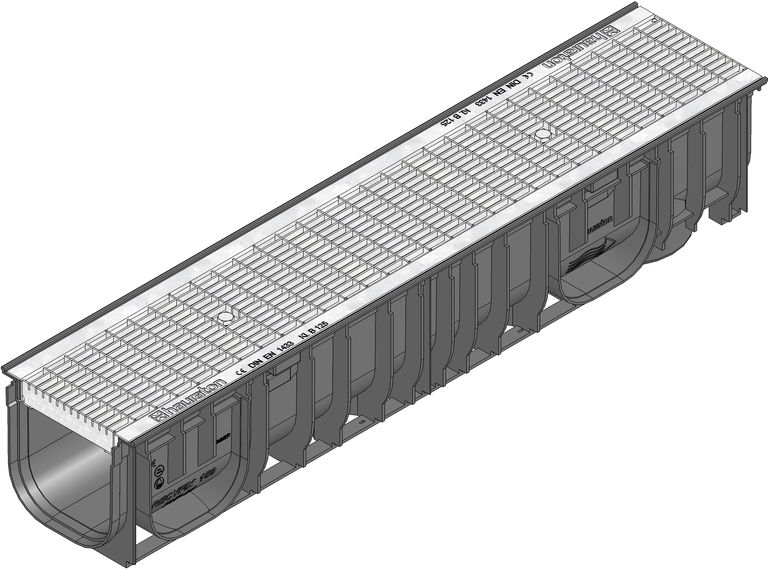

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40177
Length
1000 mm
Width
210 mm
Height
192 mm
Einlegetiefe
2 mm
Weight
8.95 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene, reinforced Polyamide
Intake cross-section
1075.0 cm²/m
Nominal size
150
Internal channel cross-section
225 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
hot-dip galvanised steel
Regulations
EN 1433, AS 4586, DIN 19580
Sales text
RECYFIX STANDARD 150 Channel type 01 with mesh cover MS 30/10 mm, galvanised, cl. B 125 and locking
Product description
RECYFIX STANDARD 150 type 01 - Channel body made of recycled polypropylene, with vertical connection possibility DN/OD 110/160, with mesh cover MS 30/10 mm, made of galvanised steel, overlying, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 1000x210x192 mm, item no. 40177
Packaging unit
25
Declaration of Performance
Tender Texts
Installation example
Pavement class B 125,
Cemented floor class B 125 - C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Concrete class C 250,
Pavement class C 250,
Installation instructions
