Article No. 40137
RECYFIX STANDARD 150, class C 250
Type 100 with ductile iron cover black, SW 6 mm, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

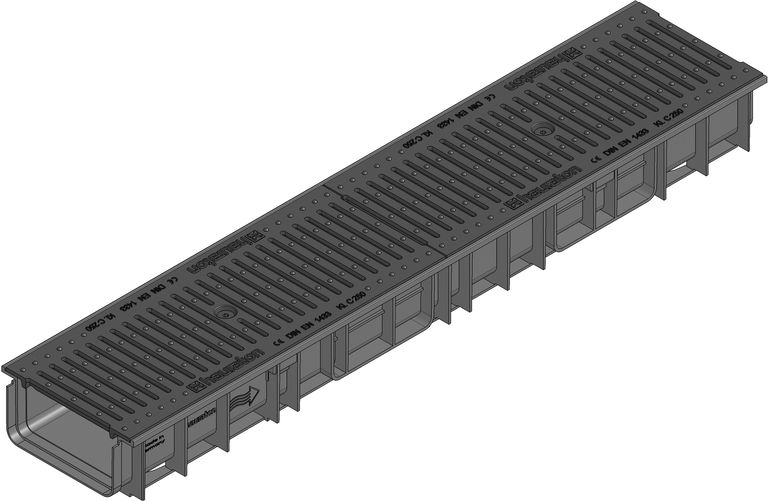

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40137
Length
1000 mm
Width
210 mm
Height
100 mm
Einlegetiefe
6 mm
Weight
12.98 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, reinforced Polyamide, Steel black galvanised
Intake cross-section
400.0 cm²/m
Nominal size
150
Internal channel cross-section
116 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 150 Channel type 100 with ductile iron cover SW 130/6 mm, black, cl. C 250, locked, 1 m
Product description
RECYFIX STANDARD 150 type 100 - Channel body made of recycled polypropylene, with vertical connection possibility DN/OD 75/110, with ductile iron cover SW 130/6 mm, made of spheroidal ductile iron EN-GJS-500-7, black, overlying, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 1000x210x100 mm, item no. 40137
Packaging unit
50
Declaration of Performance
Tender Texts
Installation example
Pavement class B 125,
Cemented floor class B 125 - C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Concrete class C 250,
Pavement class C 250,
Installation instructions
