Article No. 40636
RECYFIX STANDARD 200, class B 125
Type 100 with mesh cover MS 30/10 mm, galvanised, locked, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

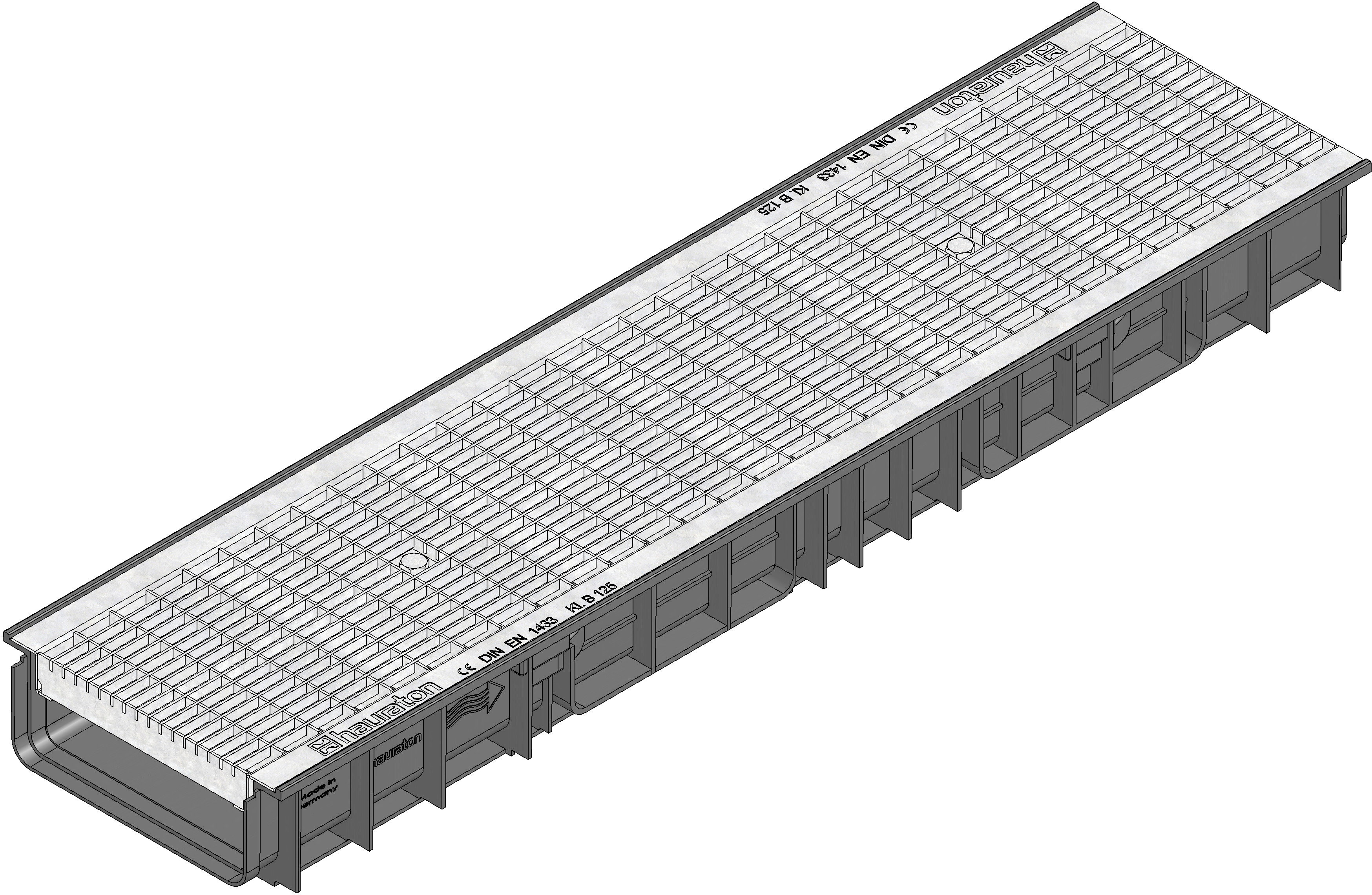

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40636
Length
1000 mm
Width
256 mm
Height
100 mm
Einlegetiefe
2 mm
Weight
10.12 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled polypropylene
Intake cross-section
1447.0 cm²/m
Nominal size
200
Internal channel cross-section
150 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material cover
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 200 Channel type 100 with mesh cover MS 30/10 mm, galvanised, cl. B 125, locked, 1 m
Product description
RECYFIX STANDARD 200 type 100 - Channel body made of recycled polypropylene, with vertical connection possibility DN/OD 75/110, with mesh cover MS 30/10 mm, made of galvanised steel, overlying, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 1000x256x100 mm, item no. 40636
Packaging unit
36
Declaration of Performance
Tender Texts
Installation example
Pavement class B 125, Type 100
Cemented floor class B 125 - C 250,
Pavement class C 250, Type 100
Asphalt class A 15 - B 125, channel height ≥ 134 mm
Asphalt class C 250, channel height ≥ 134 mm
Pavement class A 15 - B 125, channel height ≥ 134 mm
Concrete class C 250, channel height ≥ 134 mm
Pavement class C 250, channel height ≥ 134 mm
Installation instructions
