Article No. 40661
RECYFIX STANDARD 200, class C 250
Type 020 with ductile iron cover 2x SW 85/18 mm, black, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

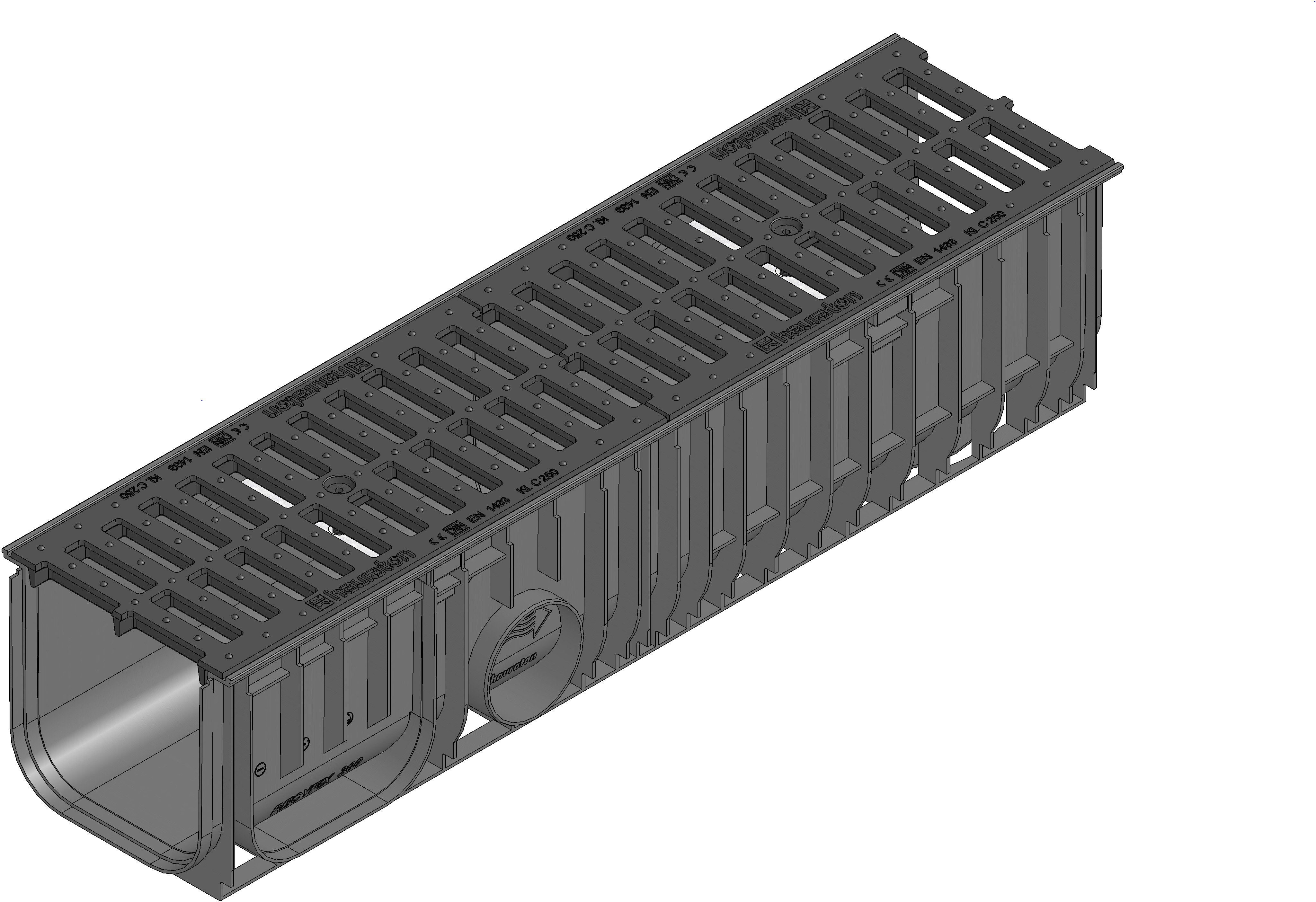

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40661
Length
1000 mm
Width
256 mm
Height
235 mm
Einlegetiefe
6 mm
Weight
15.26 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled polypropylene, Steel black galvanised
Intake cross-section
714.0 cm²/m
Nominal size
200
Internal channel cross-section
394 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 200 Channel type 020 with ductile iron cover 2x SW 85/18 mm, black, cl. C 250, locked, 1 m
Product description
RECYFIX STANDARD 200 type 020 - Channel body made of recycled polypropylene, with lateral (DN/OD 110) and vertical connection possibility (DN/OD 110/160), with ductile iron cover made of spheroidal ductile iron EN-GJS-500-7, 2x SW 85/18 mm, black, overlying, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 1000x256x235 mm, item no. 40661
Packaging unit
16
Declaration of Performance
Tender Texts
Installation example
Pavement class B 125, Type 100
Cemented floor class B 125 - C 250,
Pavement class C 250, Type 100
Asphalt class A 15 - B 125, channel height ≥ 134 mm
Asphalt class C 250, channel height ≥ 134 mm
Pavement class A 15 - B 125, channel height ≥ 134 mm
Concrete class C 250, channel height ≥ 134 mm
Pavement class C 250, channel height ≥ 134 mm
Installation instructions
