Article No. 32809

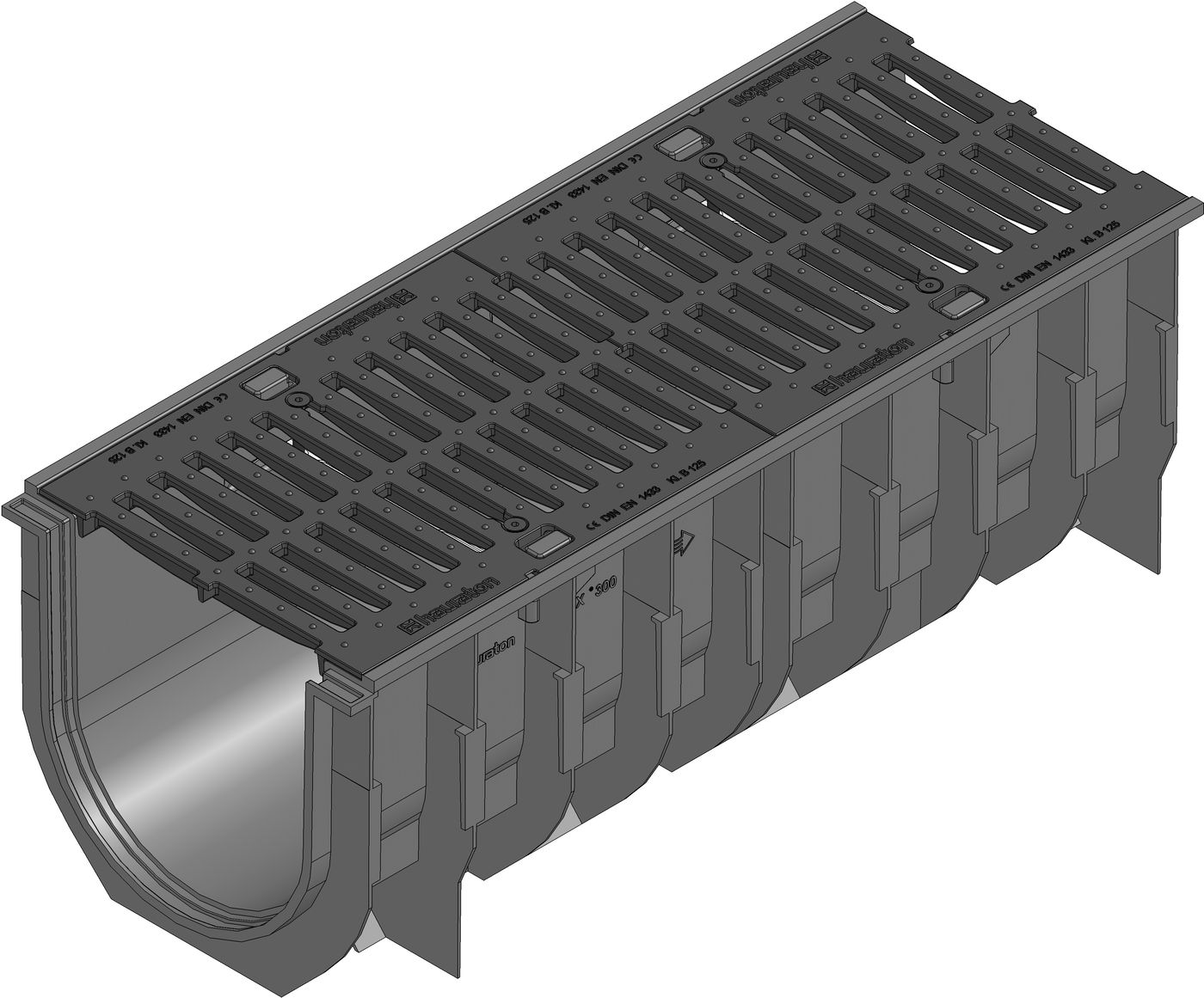

RECYFIX STANDARD 300, class B 125
Type 010 with ductile iron cover SW 2 x 127/18 mm, black, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

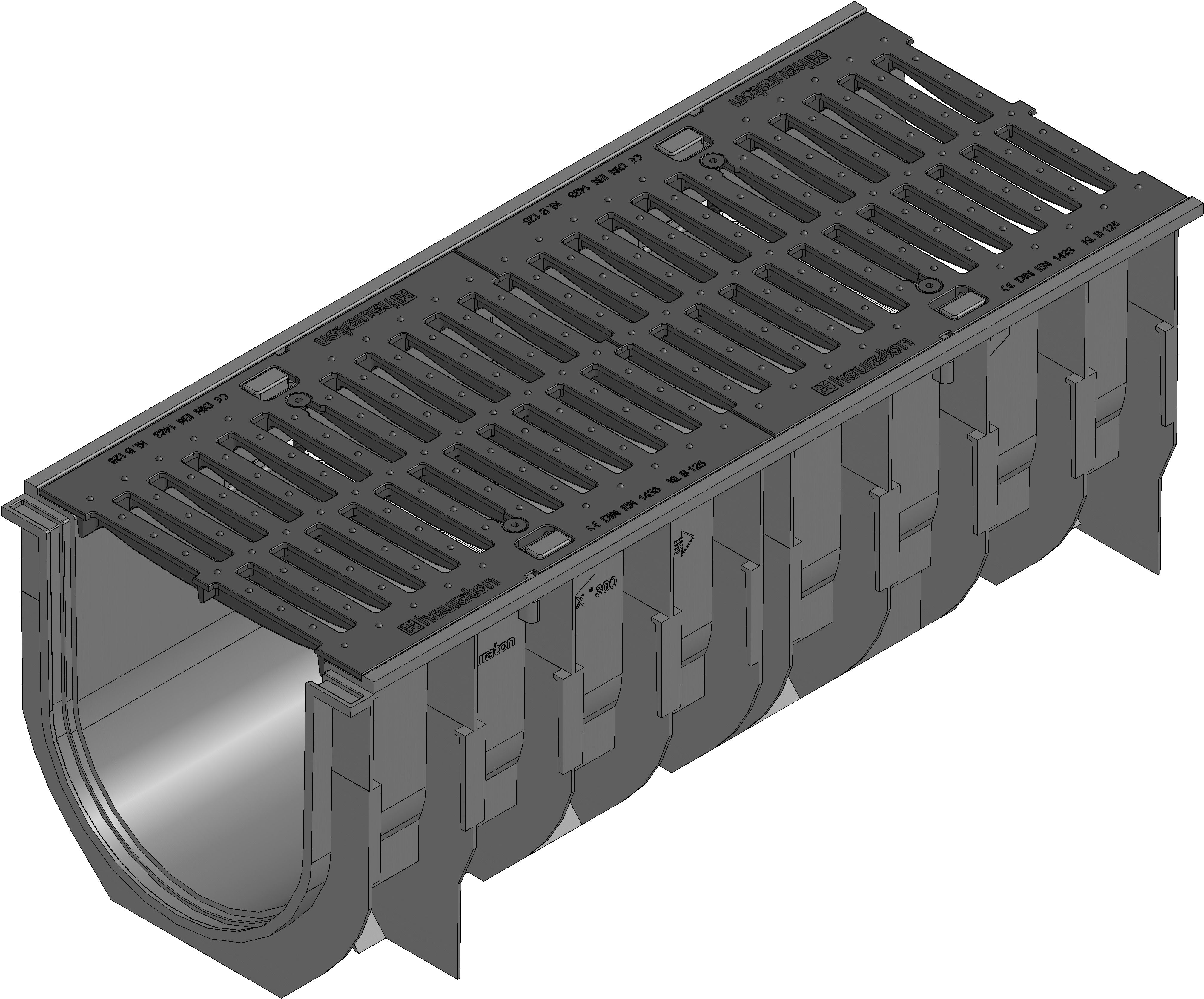

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
32809
Length
1000 mm
Width
420 mm
Height
381 mm
Einlegetiefe
6 mm
Weight
28.43 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
1088.0 cm²/m
Nominal size
300
Internal channel cross-section
857 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 300 Channel type 010 with ductile iron cover 2x SW 127/18 mm, black, cl. B 125, locked, 1 m
Product description
RECYFIX STANDARD 300 type 010 - Channel body made of recycled polypropylene, with vertical connection possibility DN/OD 160/200, with ductile iron cover 2x SW 127/18 mm, made of spheroidal ductile iron EN-GJS-500-7, black, overlying, with longitudinal slide protection and locking, load class A 15 - B 125 according to EN 1433, LxWxH 1000x420x381 mm, item no. 32809
Packaging unit
6
Declaration of Performance
Tender Texts
Installation instructions
Installation example
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Concrete class C 250,
Pavement class C 250,
