Article No. 40875
RECYFIX STANDARD 300, class C 250
Type 010 with GUGI-Ductile iron mesh cover, MS 15/25 mm, black, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

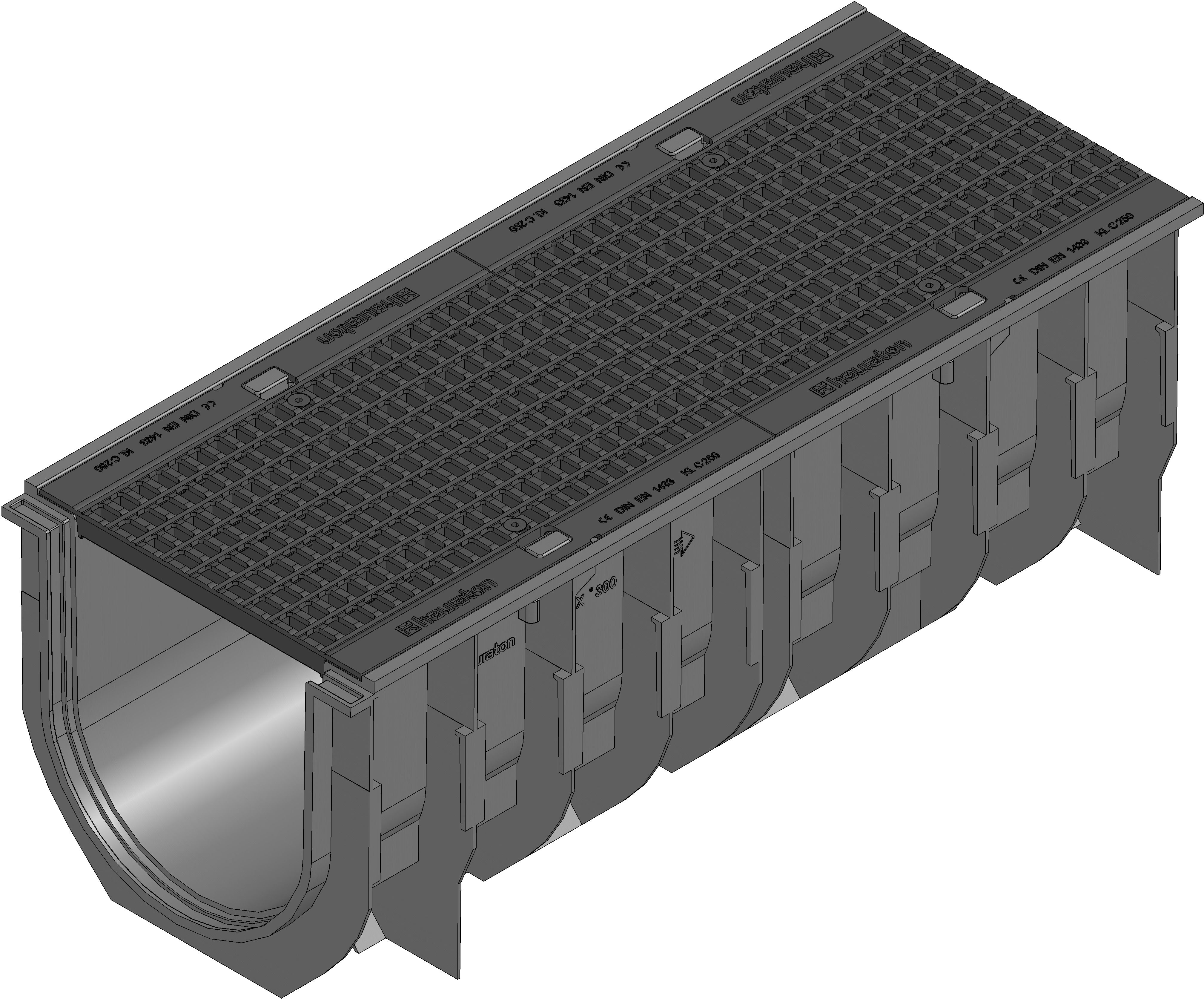

Product image
Top view

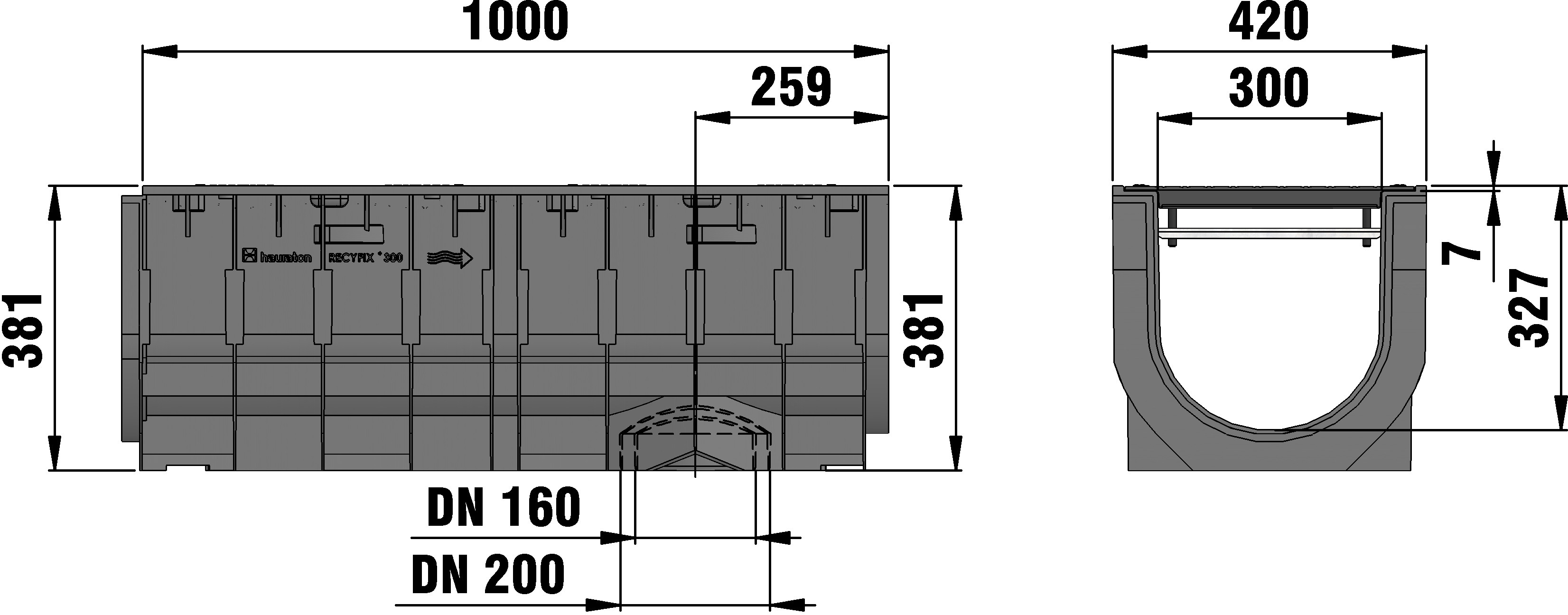

Technical drawing
Drawing
Data Sheet
Technical information and metrics
Article No.
40875
Length
1000 mm
Width
420 mm
Height
381 mm
Einlegetiefe
6 mm
Weight
35.74 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
1360.0 cm²/m
Nominal size
300
Internal channel cross-section
857 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 300 Channel type 010 with GUGI-ductile iron mesh cover MS 15/25 mm, black, cl. C 250, locked, 1 m
Product description
RECYFIX STANDARD 300 type 010 - Channel body made of recycled polypropylene, with vertical connection possibility DN/OD 160/200, with GUGI-ductile iron mesh cover MS 15/25 mm, made of spheroidal ductile iron EN-GJS-500-7, black, overlying, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 1000x420x381 mm, item no. 40875
Packaging unit
6
Declaration of Performance
Tender Texts
Installation instructions
Installation example
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Concrete class C 250,
Pavement class C 250,
