Article No. 33335
SERVICE CHANNELS RECYFIX STANDARD 200 made of polypropylene with 20 mm integrated polypropylene angle housing, class A 15
Bulb plate, closed, galvanised, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

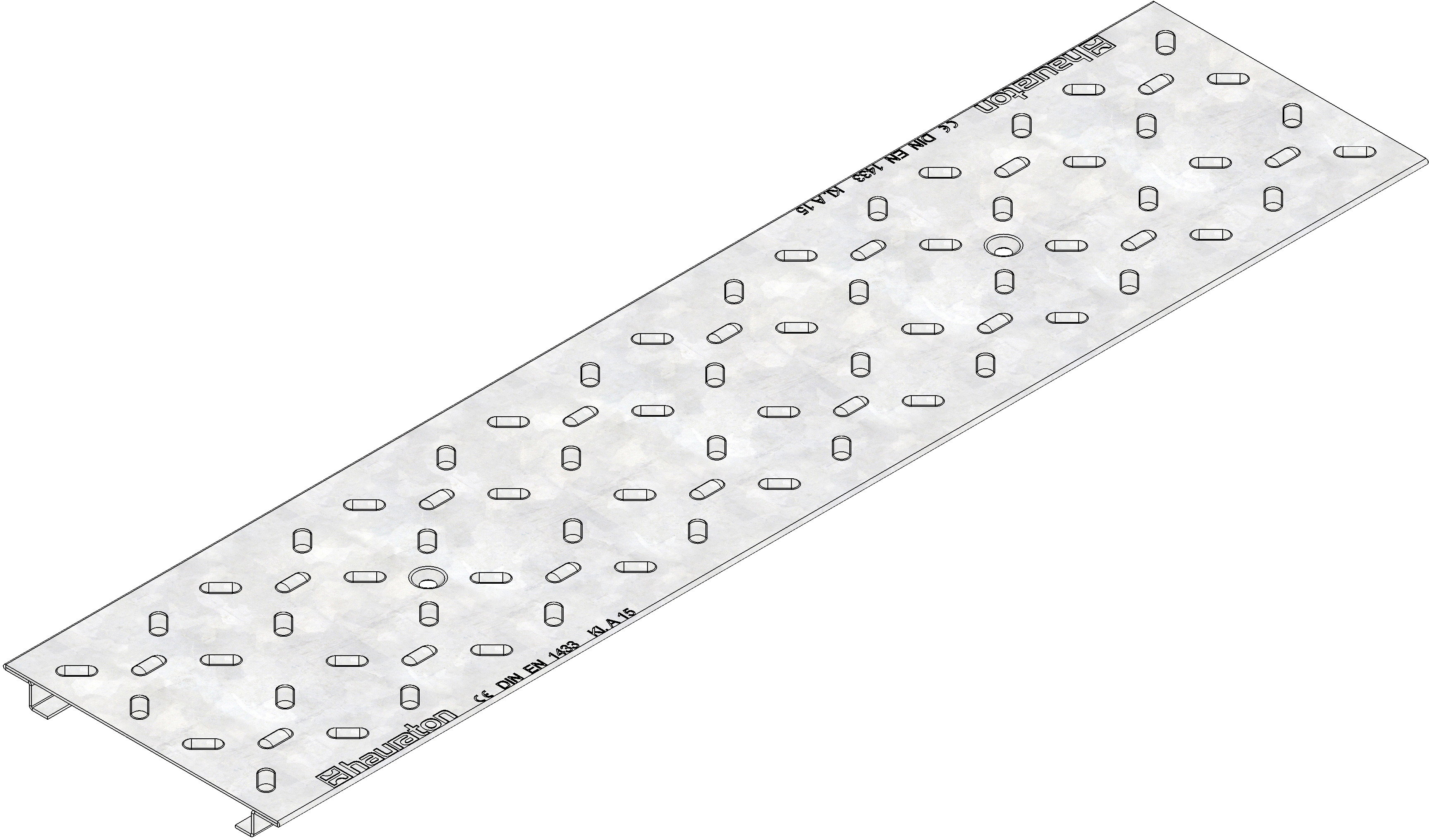

Product image
Technical drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
33335
Length
1000 mm
Width
240 mm
Height
29 mm
Einlegetiefe
4 mm
Weight
5.95 kg
Material
strip galvanized steel
Intake cross-section
0.0 cm²/m
Nominal size
200
Inlet opening
0
Fixing type
Loose blatant, Locking handle
Material cover
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
Bulb plate, closed, galvanised, cl. A 15, MEDIA CHANNEL RECYFIX STANDARD 200, 1 m
Product description
MEDIA CHANNEL RECYFIX STANDARD 200 - Bulb plate, closed, galvanised, load class A 15 according to EN 1433, length 1000 mm, item no. 33335
Packaging unit
-
Declaration of Performance
