Article No. 10304
STEELFIX SLOT D, Construction height 150 mm, neck height 100 mm, class A 15
Type 150, asymmetric, stainless steel, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

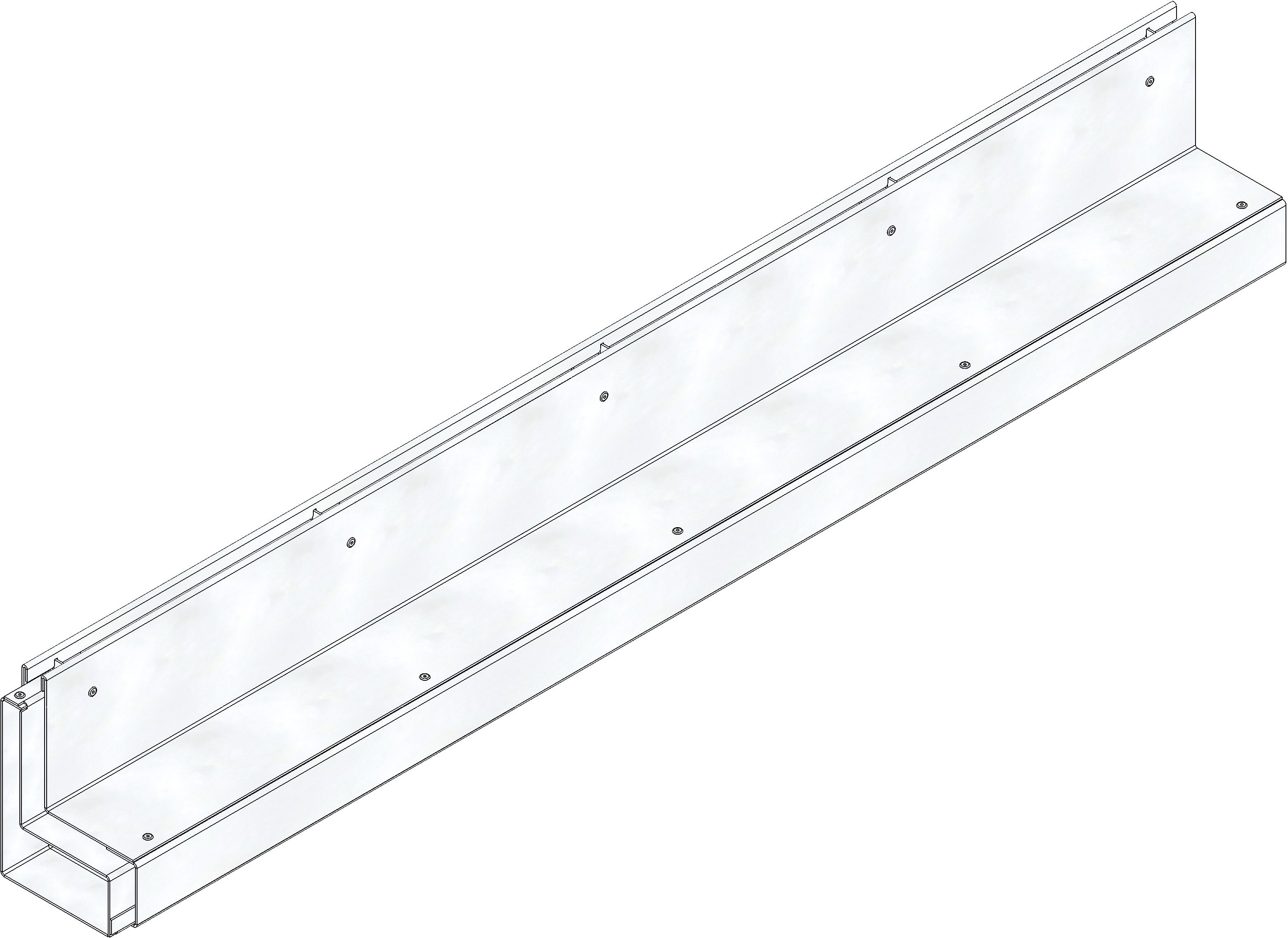

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10304
Length
1000 mm
Width
100 mm
Height
150 mm
Weight
6.49 kg
Material
Stainless steel 1.4301
Height of angle housing
-
Intake cross-section
0.0 cm²/m
Nominal size
100
Internal channel cross-section
-
Fall
-
Inlet opening
12
Type according to DIN EN 1433
M
Sales text
STEELFIX SLOT 100 type 150, SW 12 mm, neck height 100 mm, stainless steel, asymmetric, cl. A 15, with connector, 1 m
Product description
STEELFIX SLOT 100 type 150, slot width 12 mm, neck height 100 mm, asymmetric, made of stainless steel CNS 1.4301, with connector, load class A 15, LxWxH 1000x100x150 mm, item no. 10304
Packaging unit
-
Tender Texts
Installation example
Pavement / large-size slab class A 15, STEELFIX SLOT D
