Article No. 72110
SLOTTED COVER 100 with removable center bar, neck height 160 mm, class B 125
asymmetric, duo slot SW 2 x 12.5 mm, stainless steel, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

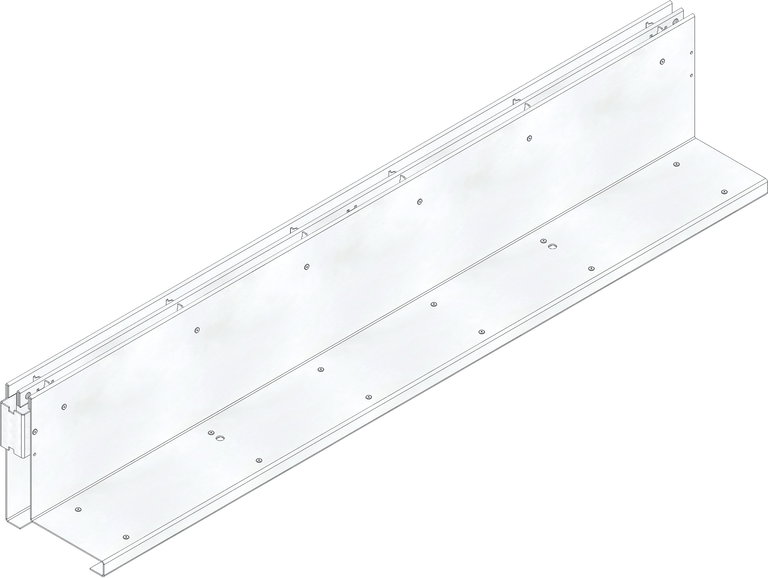

Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
72110
Length
1000 mm
Width
149 mm
Height
188 mm
Einlegetiefe
180 mm
Weight
8.56 kg
Material
Stainless steel 1.4301
Intake cross-section
250.0 cm²/m
Nominal size
100
Inlet opening
12
Fixing type
Locking handle
Material cover
Stainless steel 1.4301
Regulations
EN 1433
Sales text
Duo slotted cover SW 2x12.5 mm, neck height 160 mm, stainless steel, asymmetric, with removable centre bar, cl. B 125, RECYFIX PRO 100, 1 m
Product description
RECYFIX PRO 100 - Duo slotted cover SW 2x 12.5 mm, neck height 160 mm, asymmetric, stainless steel CNS 1.4301, with removable centre bar, load class A 15 - B 125 according to EN 1433, installation length 1000 mm, item no. 72110
