Article No. 32251
SLOTTED COVERS 100, neck height 200 mm, class D 400
Asymmetrical SW 14 mm, galvanised, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

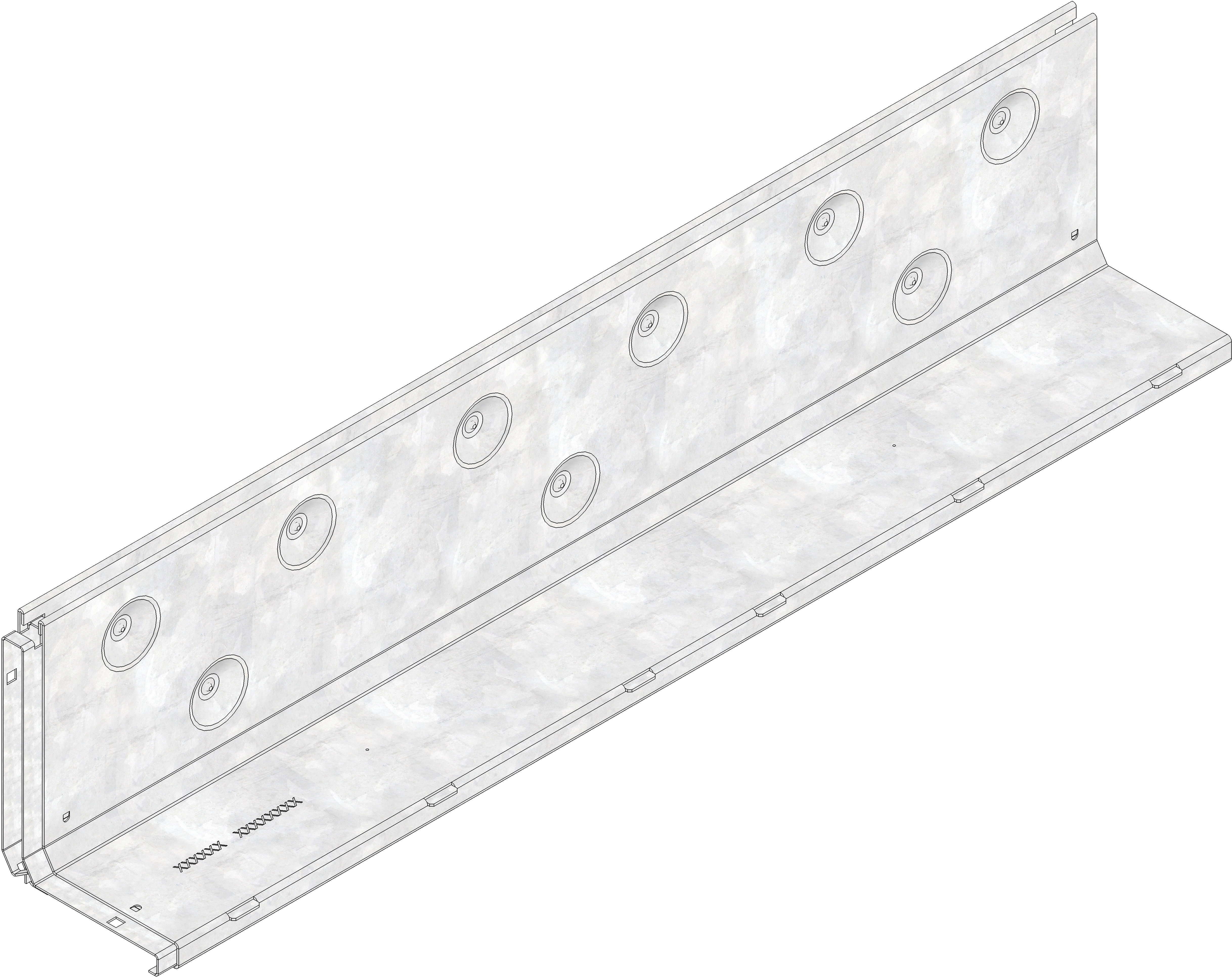

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32251
Length
1000 mm
Width
156 mm
Height
229 mm
Einlegetiefe
222 mm
Weight
10.68 kg
Material
strip galvanized steel
Intake cross-section
140.0 cm²/m
Nominal size
100
Inlet opening
14
Regulations
EN 1433
Sales text
Slotted cover SW 14 mm, neck height 200 mm, galvanised, asymmetric, with integrated, full-surface connector, cl. D 400, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 1 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Slotted cover SW 14 mm, neck height 200 mm, asymmetric, galvanised, with integrated full-surface connector, load class A 15 - D 400 according to EN 1433, length 1000 mm, item no. 32251
Packaging unit
40
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15,
Pavement class B 125,
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
Installation instructions
