Article No. 32824
SLOTTED COVERS 100, neck height 200 mm, class E 600
Access cover SW 18 mm, galvanised, asymmetric, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

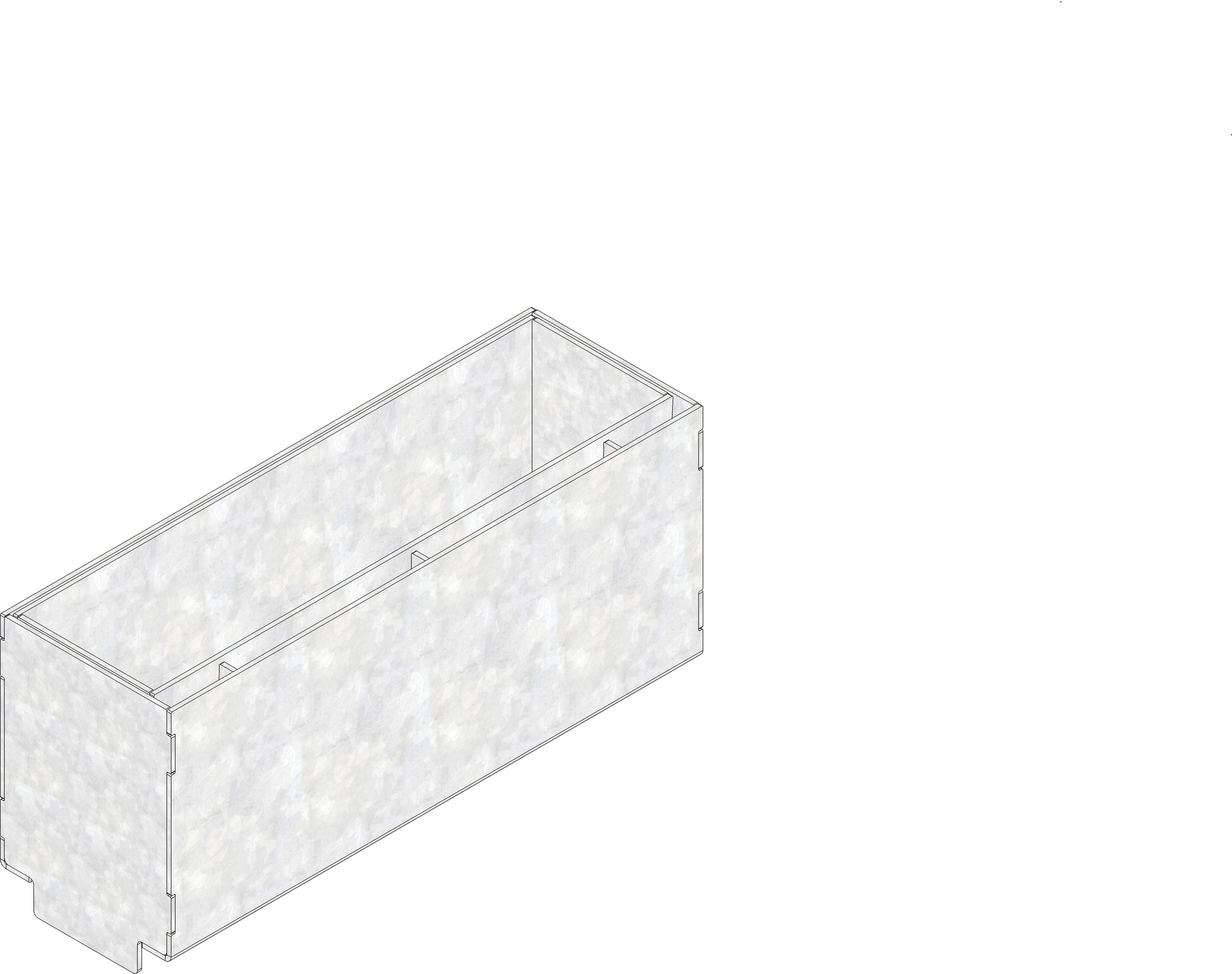

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32824
Length
500 mm
Width
160 mm
Height
229 mm
Einlegetiefe
204 mm
Weight
18.87 kg
Material
hot-dip galvanised steel
Intake cross-section
202.0 cm²/m
Nominal size
100
Inlet opening
18
Fixing type
Loose blatant, Locking handle
Material cover
hot-dip galvanised steel
Regulations
in accordance with EN 1433
Sales text
Access cover SW 18 mm, neck height 200 mm, galvanised, asymmetric, cl. E 600, FASERFIX STANDARD E 100, 0.5 m
Product description
FASERFIX STANDARD E 100 - Access cover for slotted cover SW 18 mm, neck height 200 mm, asymmetric, galvanised, load class A 15 - E 600 according to EN 1433, length 500 mm, item no. 32824
Packaging unit
42
Declaration of Performance
