Article No. 32818
SLOTTED COVERS 100, neck height 200 mm, class E 600
Asymmetrical SW 18 mm, galvanised, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

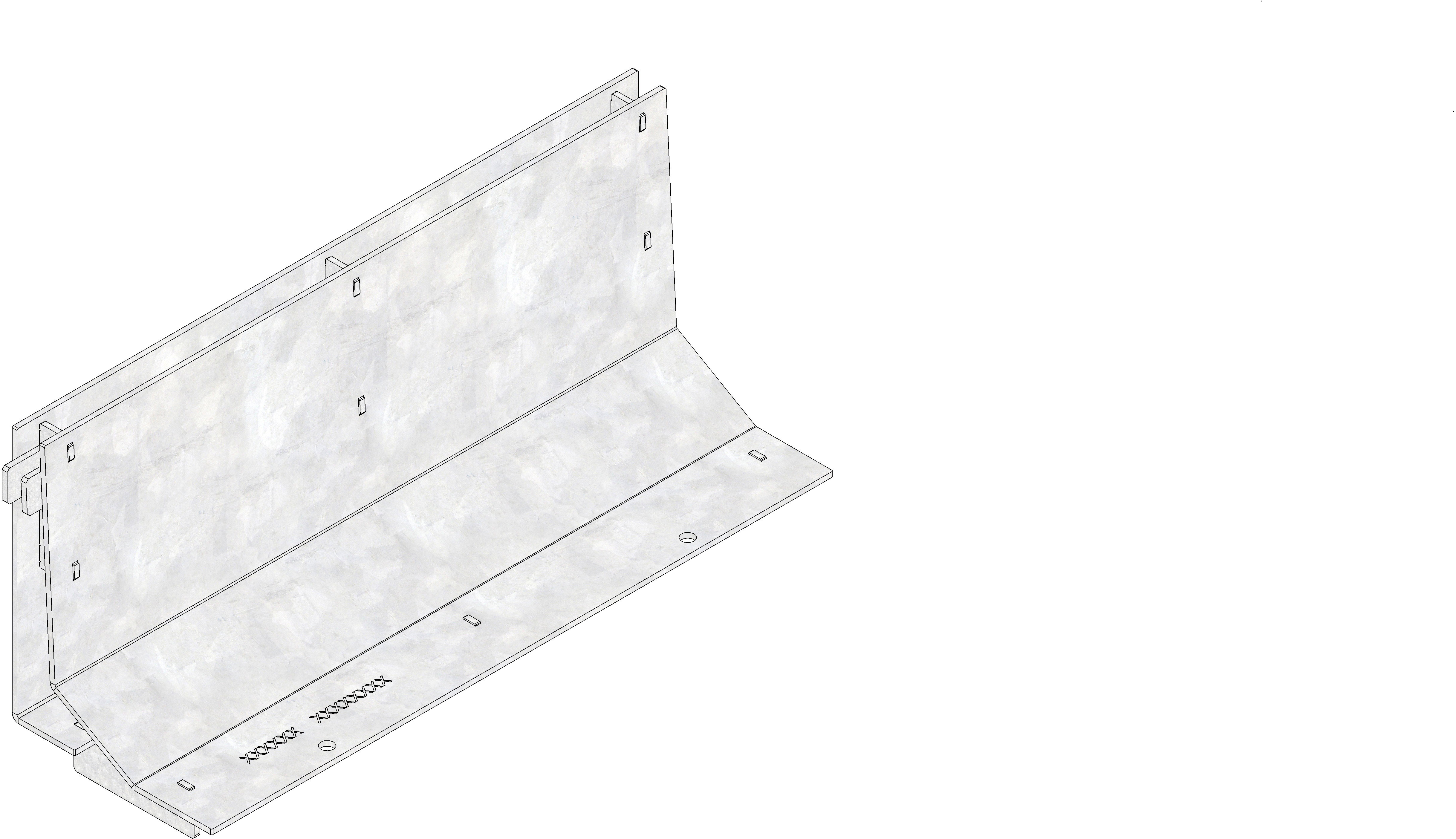

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32818
Length
500 mm
Width
160 mm
Height
232 mm
Einlegetiefe
204 mm
Weight
9.42 kg
Material
hot-dip galvanised steel
Intake cross-section
180.0 cm²/m
Nominal size
100
Inlet opening
18
Regulations
EN 1433
Sales text
Slotted cover SW 18 mm, neck height 200 mm, galvanised, asymmetric, cl. E 600, FASERFIX STANDARD E 100, 0.5 m
Product description
FASERFIX STANDARD E 100 - Slotted cover SW 18 mm, neck height 200 mm, asymmetric, galvanised, load class A 15 - E 600 according to EN 1433, length 500 mm, item no. 32818
Packaging unit
80
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15,
Pavement class B 125,
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
Installation instructions
