Article No. 32822
SLOTTED COVERS 150, neck height 200 mm, class E 600
Asymmetrical SW 18 mm, galvanised, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

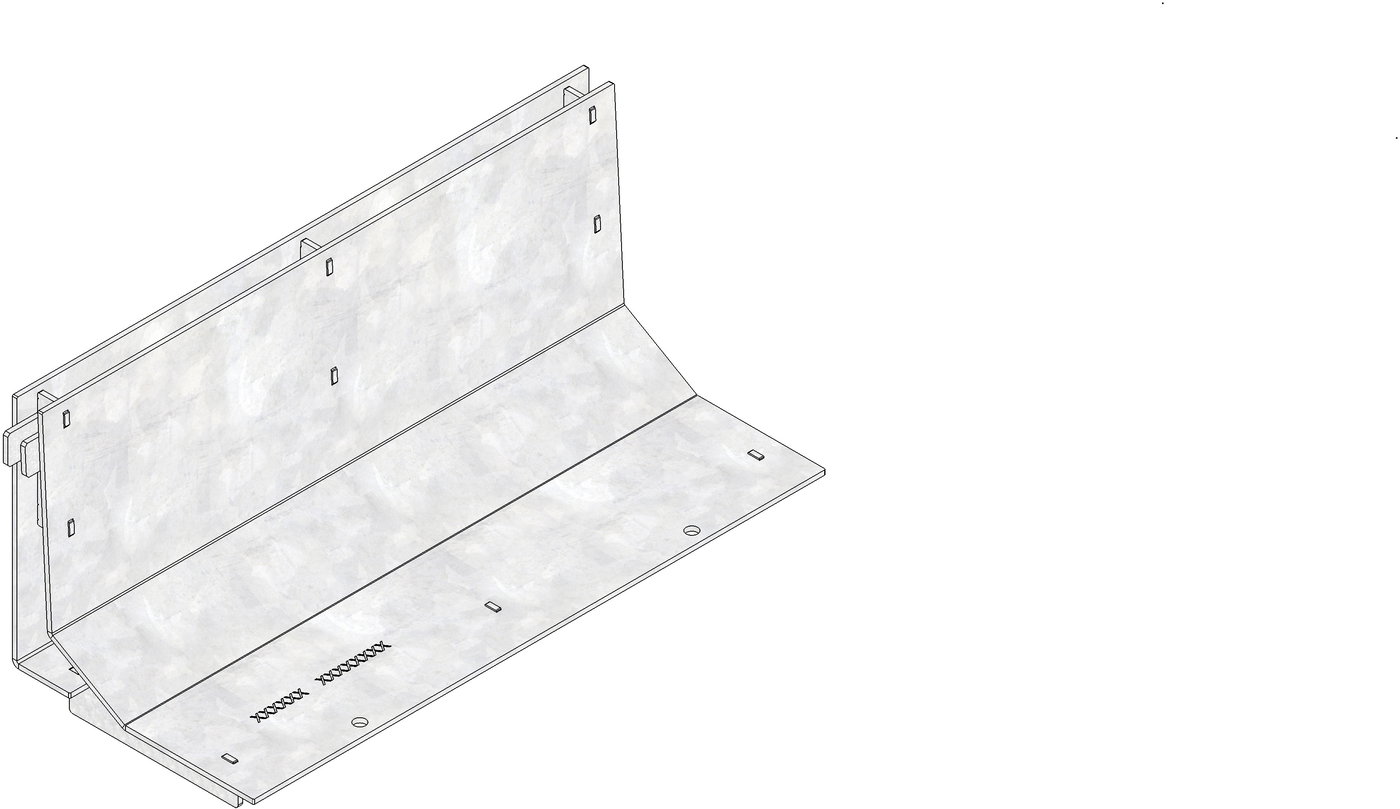

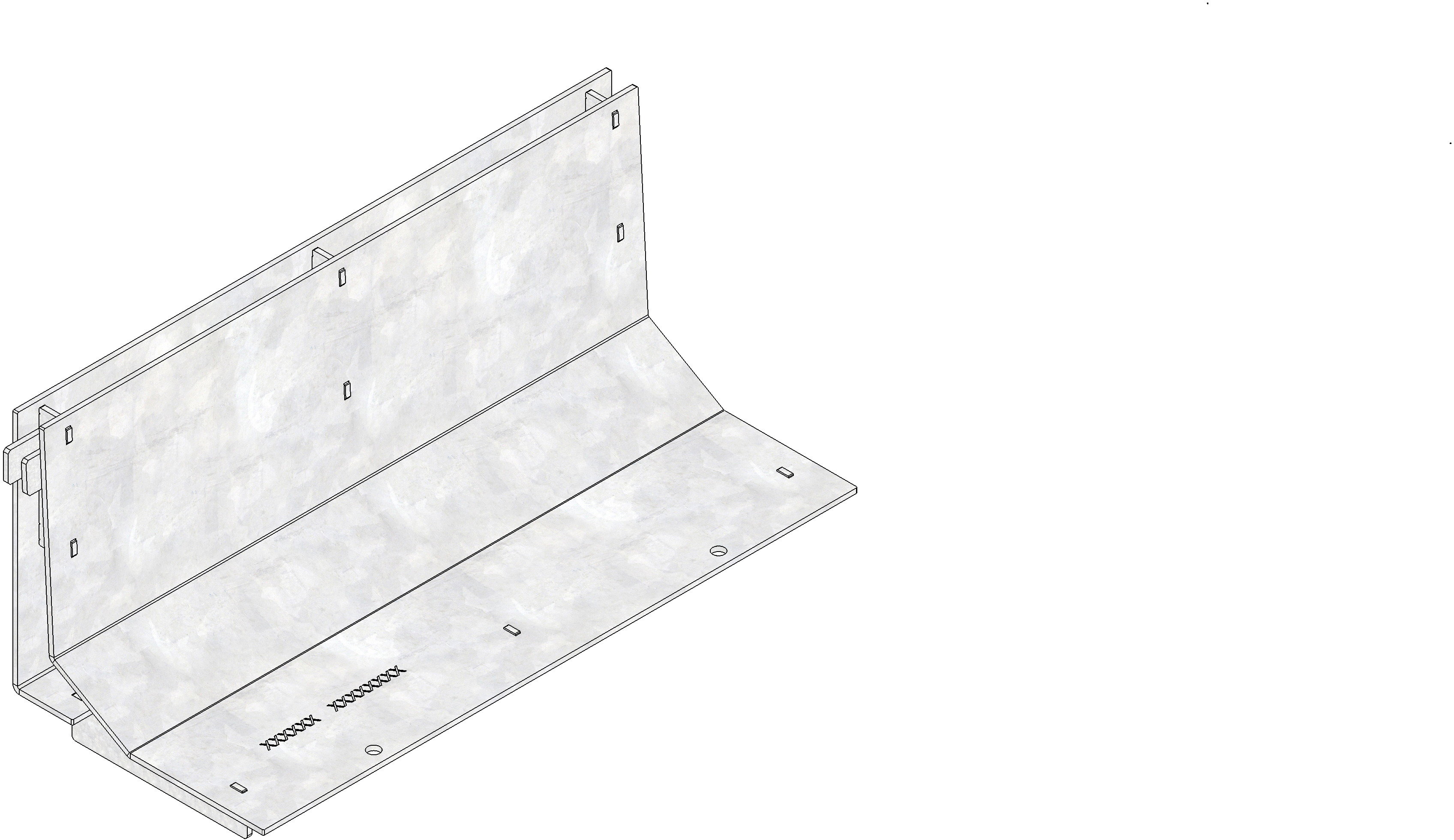

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32822
Length
500 mm
Width
210 mm
Height
232 mm
Einlegetiefe
204 mm
Weight
10.02 kg
Material
hot-dip galvanised steel
Intake cross-section
180.0 cm²/m
Nominal size
150
Inlet opening
18
Regulations
in accordance with EN 1433
Sales text
Slotted cover SW 18 mm, neck height 200 mm, galvanised, asymmetric, cl. E 600, FASERFIX STANDARD 150, 0.5 m
Product description
FASERFIX STANDARD 150 - Slotted cover SW 18 mm, neck height 200 mm, asymmetric, galvanised, load class A 15 - E 600 according to EN 1433, length 500 mm, item no. 32822
Packaging unit
80
Declaration of Performance
Tender Texts
Installation example
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
Installation instructions
