Article No. 7712
SPORTFIX CLEAN particle trap element
with drainage pipe DN/OD 110, incl. 30 l filter substrate CARBOTEC
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

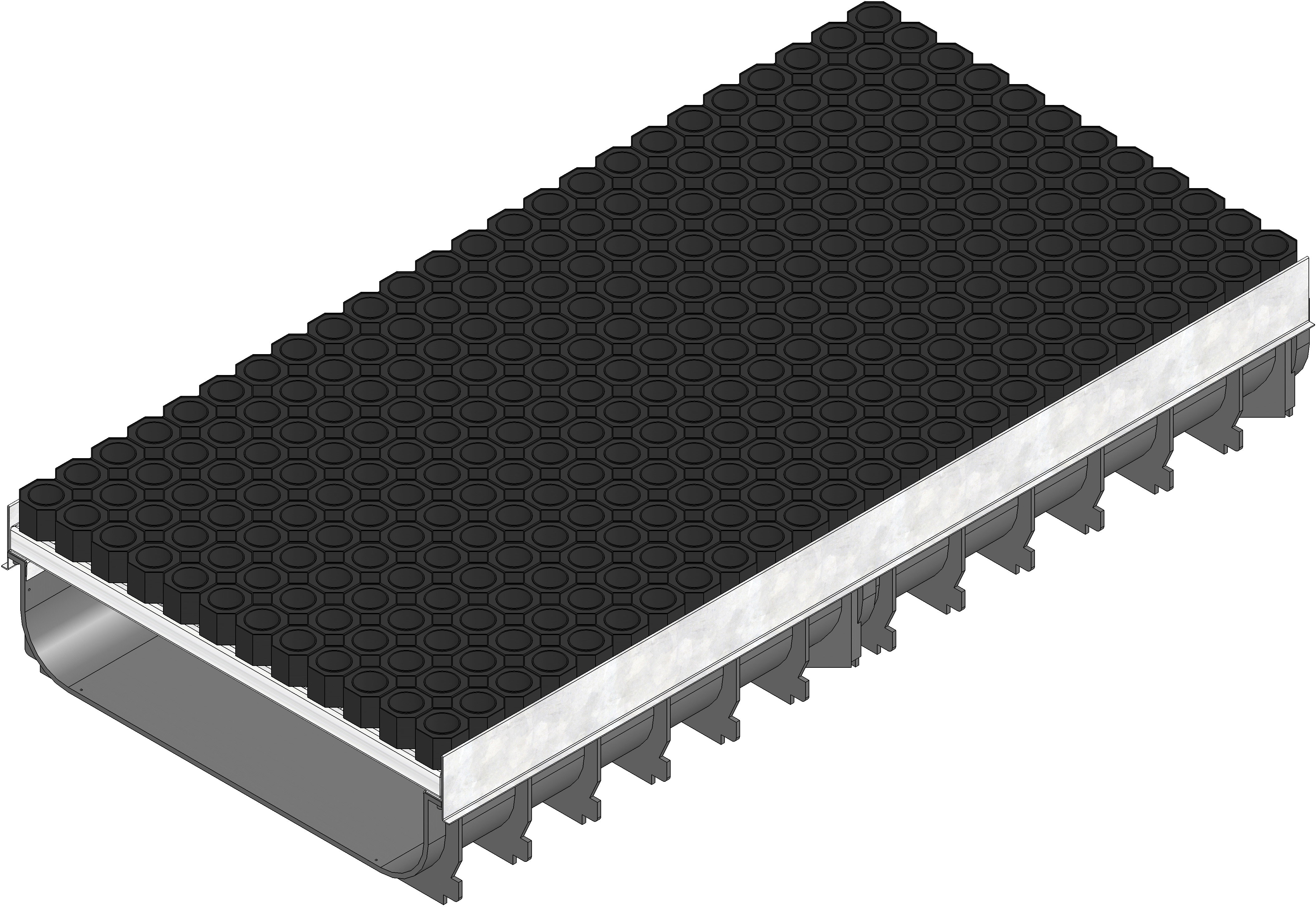

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
7712
Length
500 mm
Width
500 mm
Height
163 mm
Weight
21.77 kg
Material
EPDM, hot-dip galvanised steel, recycled polypropylene, strip galvanized steel
Intake cross-section
0.0 cm²/m
Nominal size
460
Type according to DIN EN 1433
not specified
Channel material
recycled polypropylene
Material cover
hot-dip galvanised steel
Sales text
SPORTFIX CLEAN 460 - Particle trap element with PVC-U pipe outlet DN/OD 110 as vertical drain and with fine filter, incl. 30 l filter substrate CARBOTEC, 1 m
Product description
SPORTFIX CLEAN 460 - Particle trap element, made of recycled polypropylene, black, PVC-U pipe outlet DN/OD 110 and fine filter as vertical drain, with mesh cover MS 30/30 mm galvanised, with rubber mat, pedestrian-accessible, incl. 30 L filter substrate CARBOTEC, LxWxH 1000 (2x500)x500x178 mm, item no. 7733
Packaging unit
-
Tender Texts
Installation example
running track / artificial turf class A 15,
Pavement class A 15, double-breasted
Pavement class A 15, double-breasted
