Article No. 7403
SPORTFIX Distribution shaft
Type E made of PE with galvanised cover
Questions?

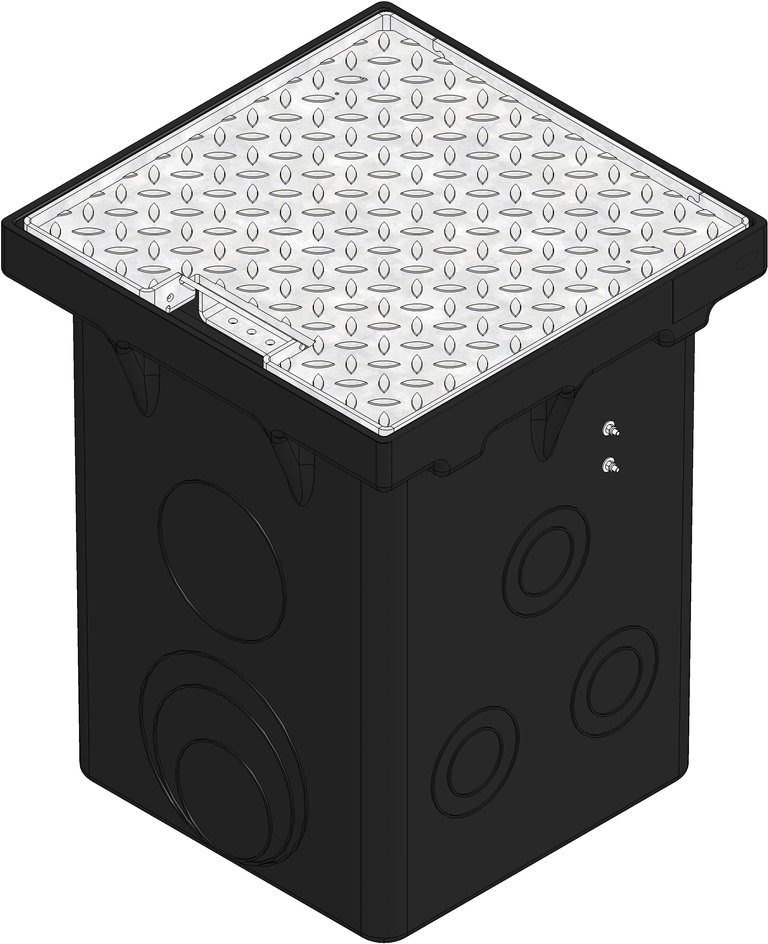

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
7403
Length
500 mm
Width
500 mm
Height
624 mm
Weight
37.94 kg
Material
hot-dip galvanised steel, RECYFIX Material (PP virgin material)
Nominal size
-
Regelwerke
EN 1433
Vertriebstext
SPORTFIX distribution chamber made of composite, with cover, closed, galvanised, with bulb plate, damped, cl. B 125, 0,5 m
Produktbeschreibung
SPORTFIX distribution chamber made of composite, with steel cover, galvanised, damped, with 14 mm recess in the lid for individual filling, loading capacity from A 15 up to B 125, L/W/H 500x500x624 mm, item no. 7403
Verpackungseinheit
4 Unit / Pallet
