Article No. 7525
SPORTFIX PRO 100, accessories
for NW 100, with integrated edge frames and silt bucket made of recycled PP, with FIBRETEC design slotted cover SW 110/9 mm, in the colour black, class C 250, locked, 0.5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

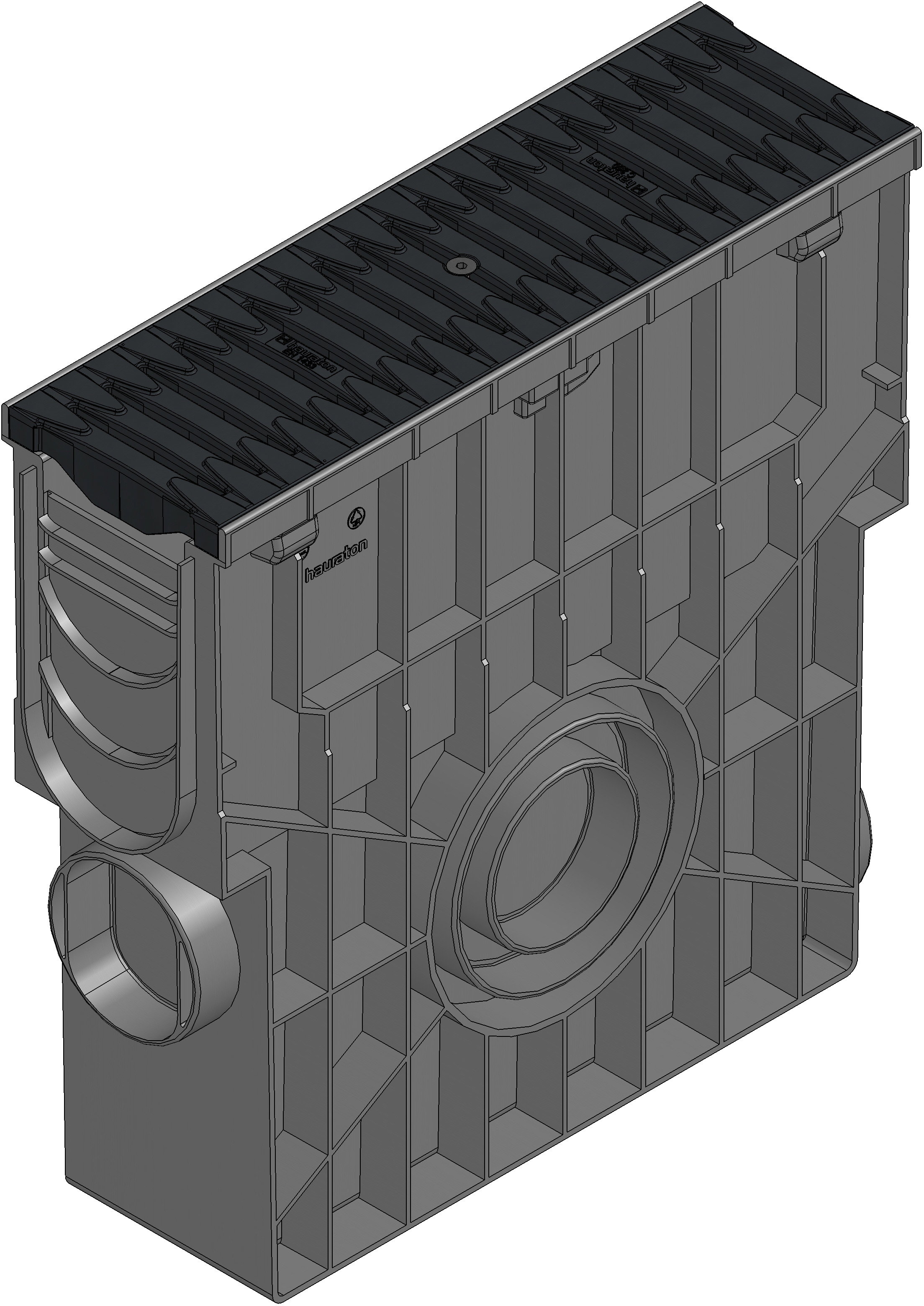

Product image
Technical drawing
Drawing (CAD)
Drawing

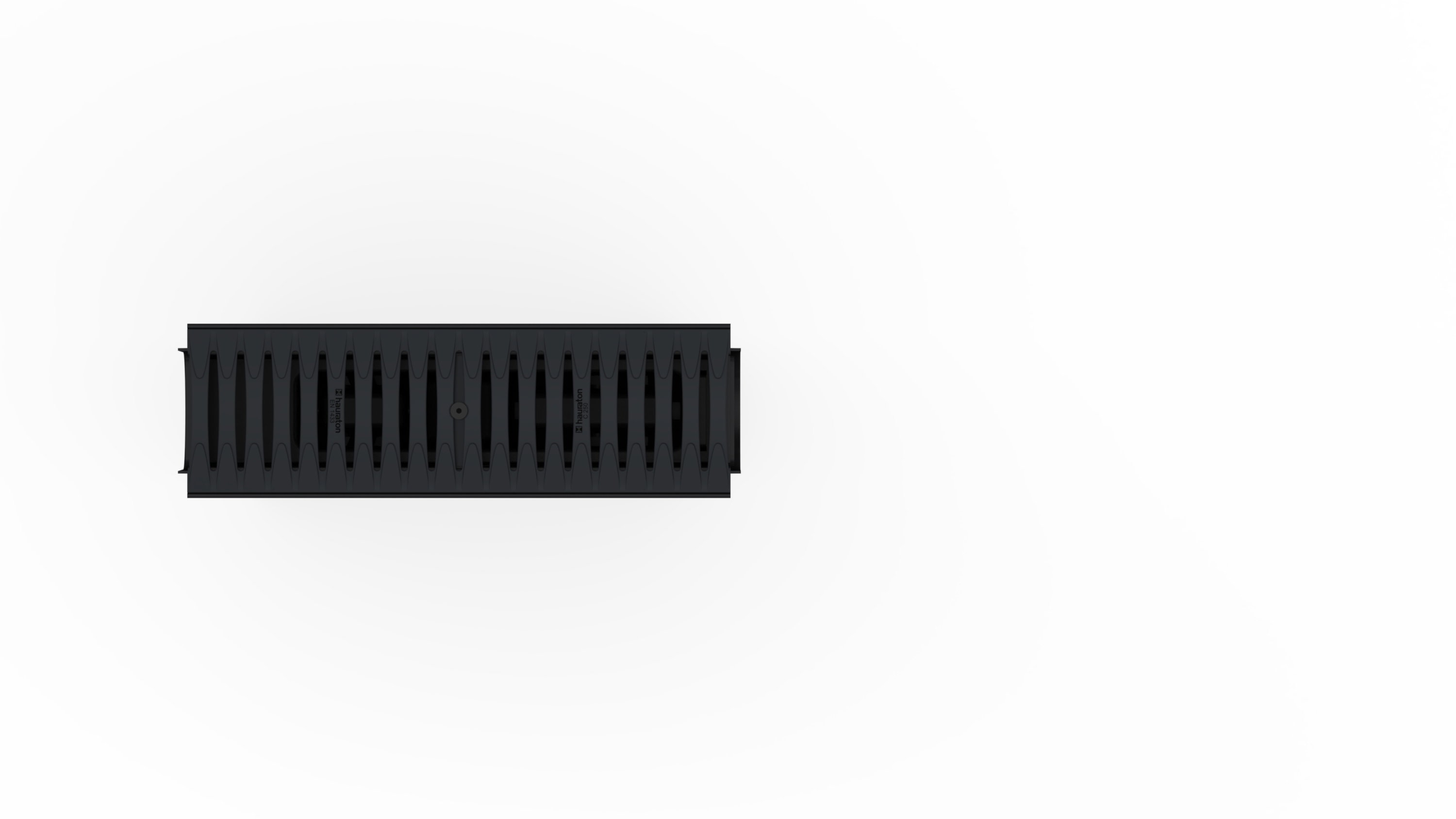

Top view
Technical information and metrics
Article No.
7525
Length
500 mm
Width
160 mm
Height
504 mm
Einlegetiefe
20 mm
Weight
5.89 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
372.0 cm²/m
Nominal size
100
Material cover
reinforced Polyamide
Regulations
EN 1433 + IAKS
Sales text
Sump unit with integrated edge frames, with FIBRETEC Design slotted cover SW 110/9 mm, black, cl. C 250, locked, with silt bucket made of recycled PP, SPORTFIX PRO 100, 0.5 m
Product description
SPORTFIX PRO 100 - Sump unit made of recycled polypropylene, with integrated edge frames, 4-sided preformed pipe connection element (on the front side DN/OD 110, on the sides DN/OD 110/160), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types SPORTFIX PRO 100, with FIBRETEC design slotted cover SW 110/9 mm, black, made of fibre-reinforced polyamide, with longitudinal slide protection and locking, load class A 15 - C 250 according to DIN 19580/EN 1433, LxWxH 500x160x504 mm, item no. 7525
Packaging unit
28
