Article No. 7511
SPORTFIX PRO 100
Type 01 with GUGI-Cover made of PA-GF, MW 15/25 mm, black, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

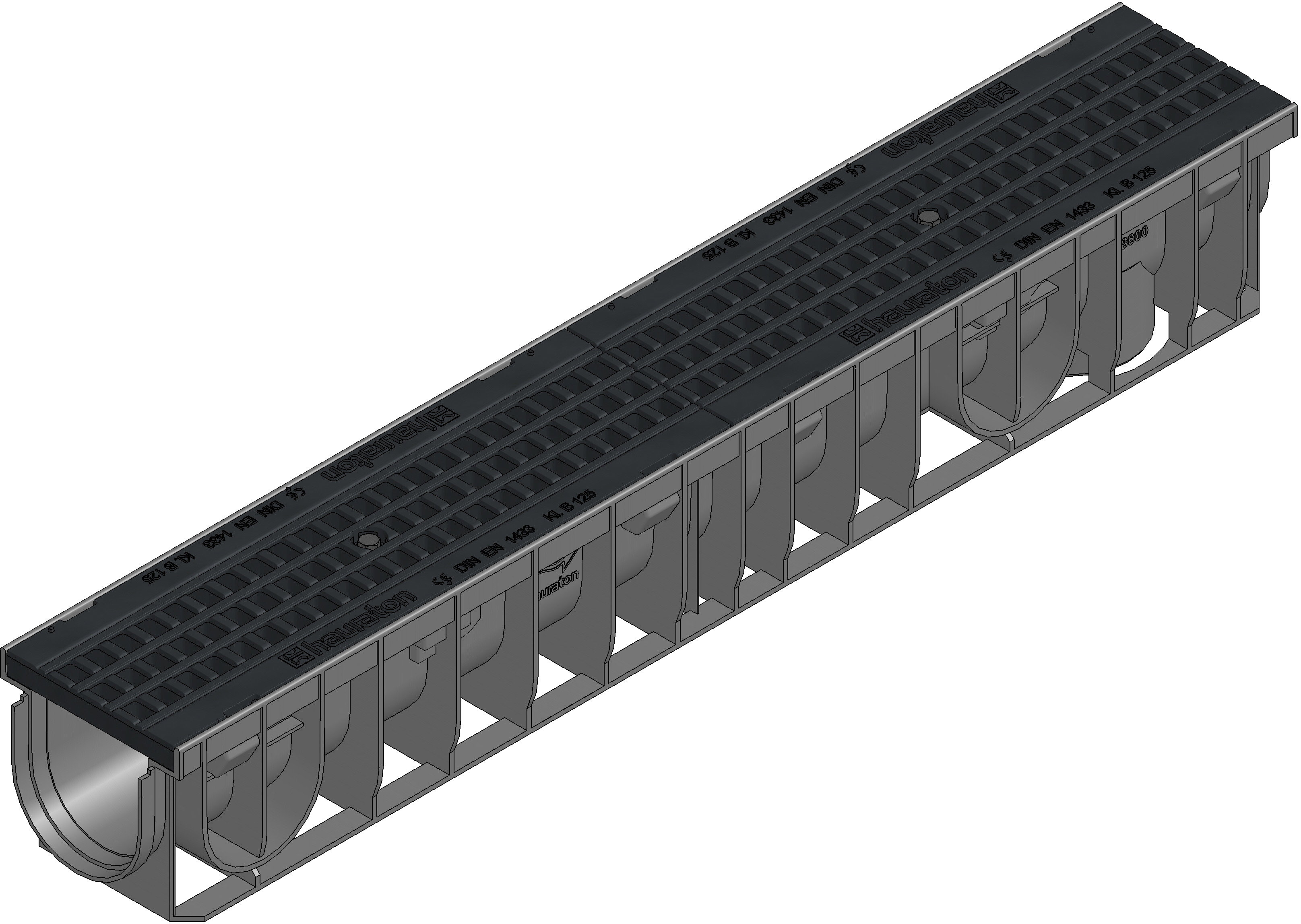

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
7511
Length
1000 mm
Width
160 mm
Height
150 mm
Weight
4.26 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
444.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
reinforced Polyamide
Regelwerke
EN 1433, EN 1433 + IAKS, DIN 19580
Vertriebstext
SPORTFIX PRO 100 Type 01 Channel with GUGI-Cover made of PA-GF, MW 15/25, black, length 1m, locked
Produktbeschreibung
SPORTFIX PRO 100 type 01 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 110, with GUGI cover MW 15/25, black, with horizontal thrust resistance and locking, loading capacity from A 15 - B 125 according to EN 1433, L/W/H 1000x160x150 mm, item no. 7511
Verpackungseinheit
49 Unit / Pallet
Tender Texts
Installation example
running track / playing field class A 15
