Article No. 7510
SPORTFIX PRO 100
Type 010 with GUGI-Cover made of PA-GF, MS 15/25 mm, black, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing (CAD)
Drawing

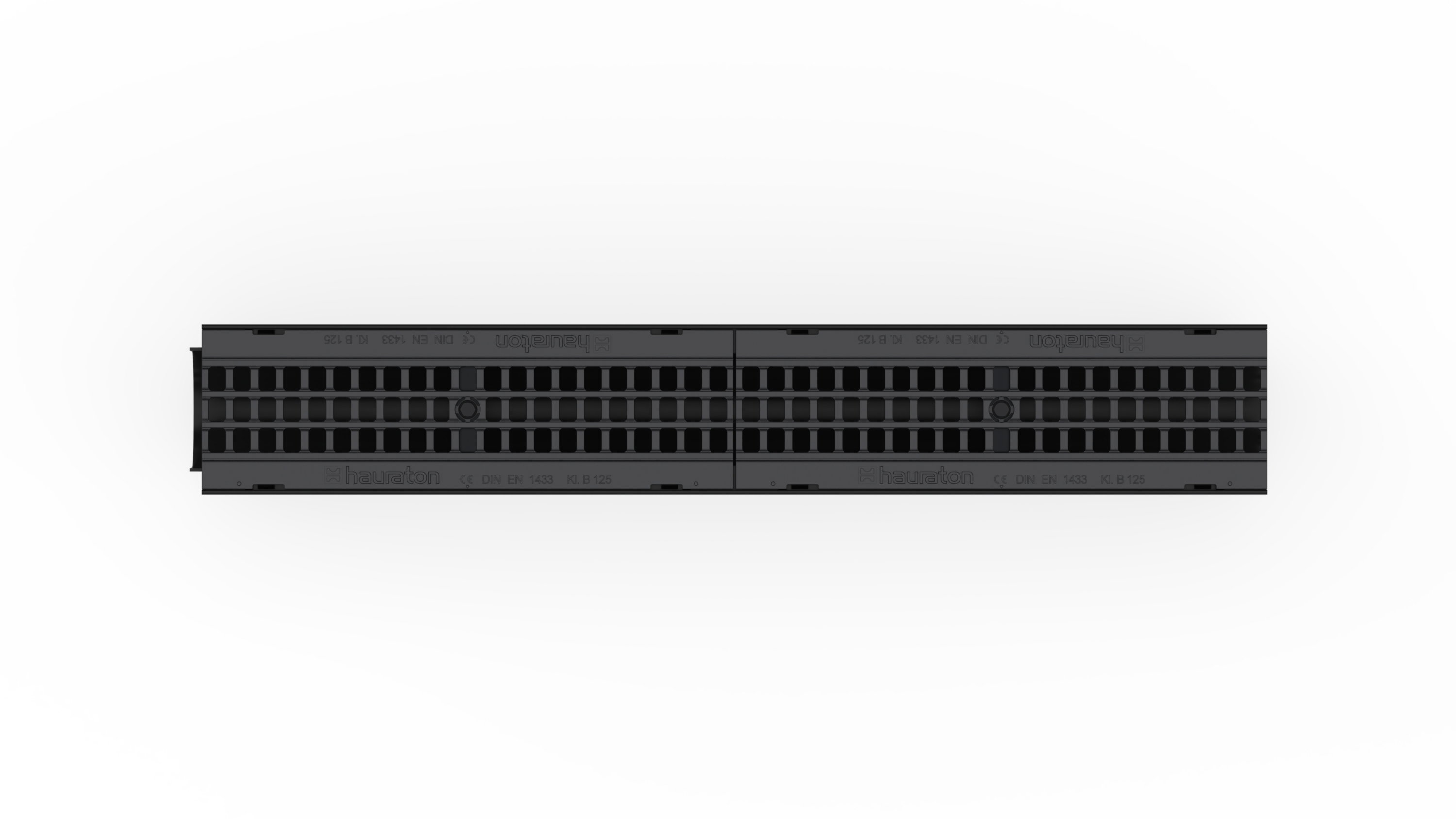

Top view
Data Sheet
Technical information and metrics
Article No.
7510
Length
1000 mm
Width
160 mm
Height
200 mm
Einlegetiefe
20 mm
Weight
4.66 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
444.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
reinforced Polyamide
Regulations
EN 1433, EN 1433 + IAKS, DIN 19580
Sales text
SPORTFIX PRO 100 Channel type 010 with integrated edge frame, with GUGI-mesh cover MS 15/25 mm made of fibre-reinforced polyamide, black, cl. B 125, locked, 1 m
Product description
SPORTFIX PRO 100 type 010 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 110, with GUGI-mesh cover MS 15/25 mm, black, made of fibre-reinforced polyamide, with longitudinal slide protection and locking, load class A 15 - B 125 according to EN 1433, LxWxH 1000x160x200 mm, item no. 7510
Packaging unit
35
Declaration of Performance
Tender Texts
Installation example
running track / playing field class A 15,
