Article No. 7862
SPORTFIX ROME (I) Channels
Type 010 with GUGI-Mesh cover made of PA-GF, MW 15/25 mm, black, for securing of artificial turf, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

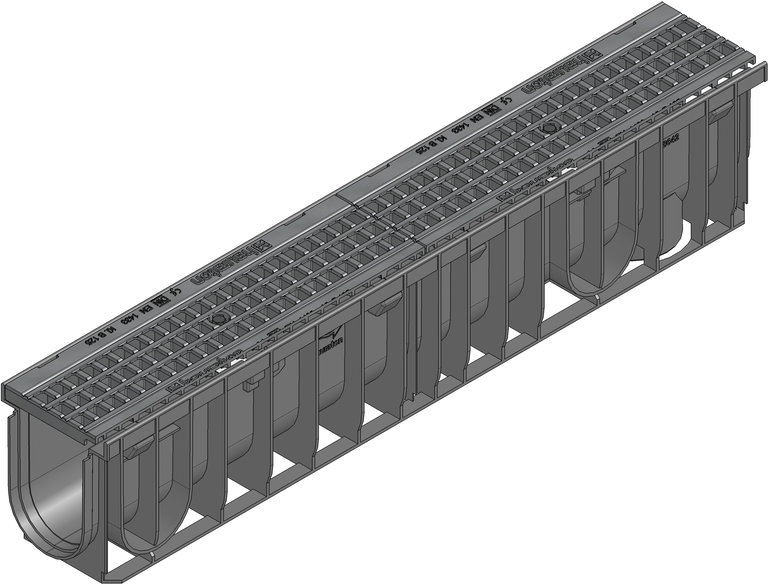

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
7862
Length
1000 mm
Width
160 mm
Height
200 mm
Weight
4.05 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
444.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
reinforced Polyamide
Vertriebstext
SPORTFIX channel ROME I type 010 with mesh cover, for securing of unfilled artificial turf, 1 m
Produktbeschreibung
SPORTFIX ROME I type 010, made of modified PP, with GUGI-mesh-cover for securing of artificial turf with unfilled pole layer L/W/H 1000x160x200 mm, item-no. 7862
Verpackungseinheit
35 Unit / Pallet
Tender Texts
Installation example
running track / artificial turf class A 15
