Article No. 7867
SPORTFIX ROME (I) Channels
Type 020 with GUGI-Mesh cover made of PA-GF, MS 15/25 mm, black, for securing of artificial turf, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

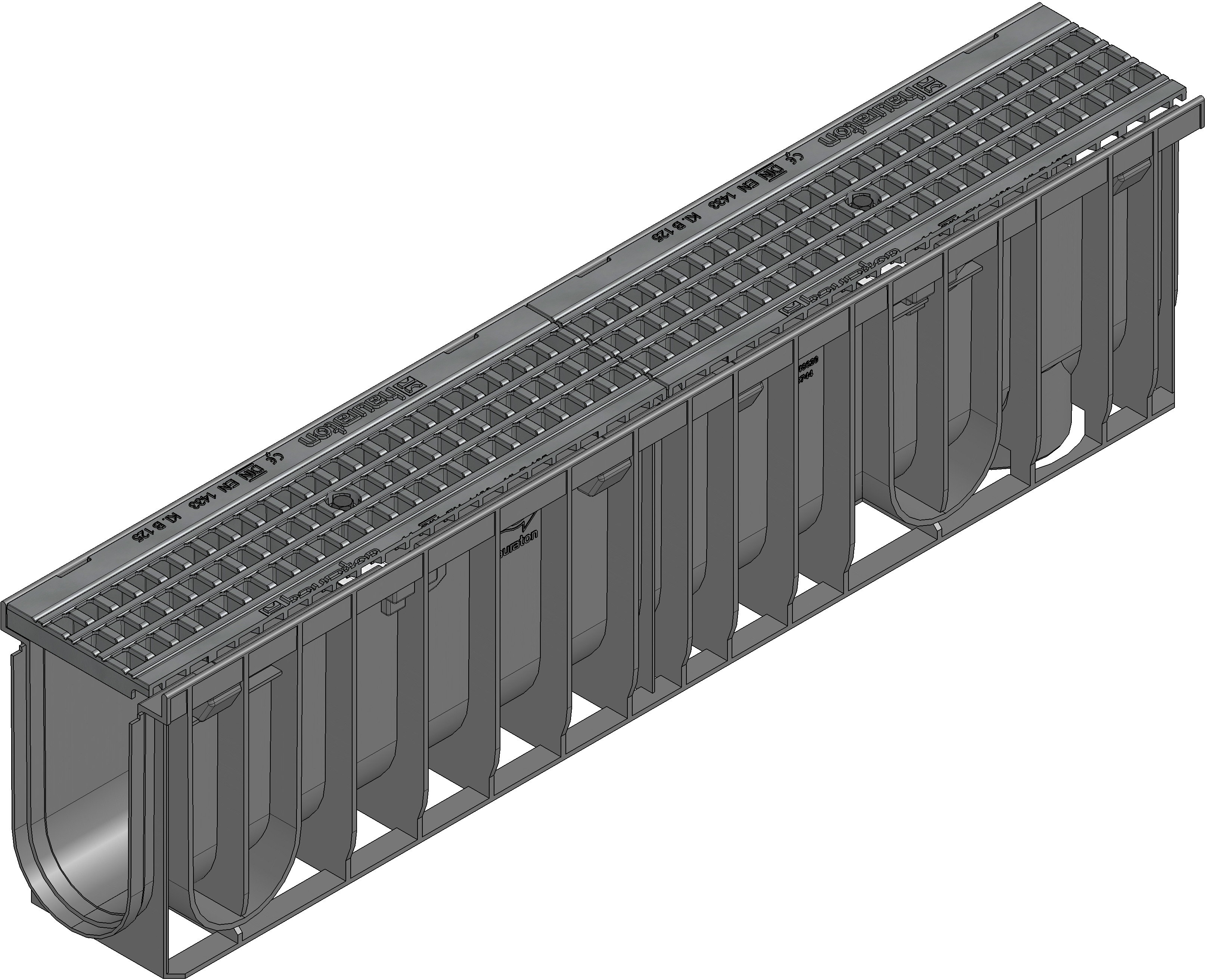

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
7867
Length
1000 mm
Width
160 mm
Height
250 mm
Einlegetiefe
20 mm
Weight
5.08 kg
Material
recycled polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
444.0 cm²/m
Nominal size
100
Internal channel cross-section
192 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material cover
reinforced Polyamide
Sales text
SPORTFIX Channel Rom I type 020 with mesh cover made of fibre-reinforced PA, for securing of unfilled artificial turf, 1 m
Product description
SPORTFIX ROM I type 020 - Channel body made of recycled polypropylene, with GUGI mesh cover MS 15/25 mm, made of fibre-reinforced polyamide, black, sawn, for securing of unfilled artificial turf, LxWxH 1000x160x250 mm, item no. 7867
Packaging unit
28
Tender Texts
Installation example
running track / artificial turf class A 15,
