Article No. 7740
SPORTFIX Sand traps
Sand trap 2 x 500 mm
Questions?

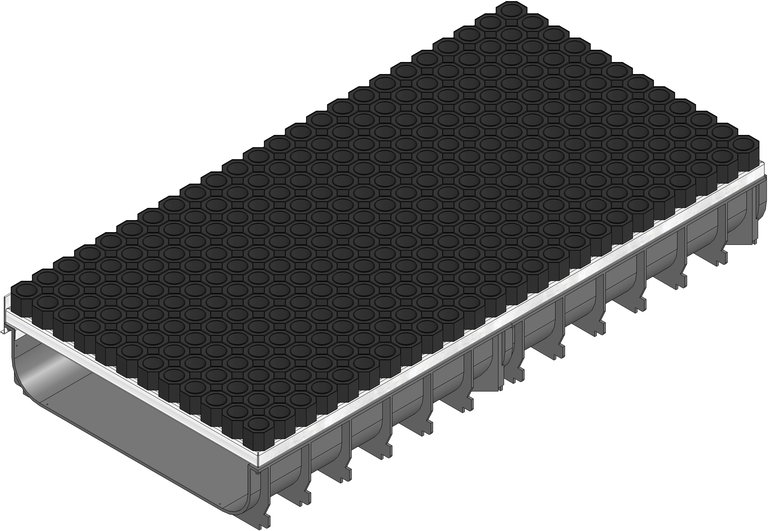

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
7740
Length
1000 mm
Width
500 mm
Height
178 mm
Weight
19.81 kg
Material
hot-dip galvanised steel, recycled, modified Polypropylene
Height of angle housing
-
Nominal size
460
Internal channel cross-section
445 cm²
Fall
-
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
hot-dip galvanised steel
Regelwerke
EN 1433
Vertriebstext
SPORTFIX sand trap channel with mesh cover MW 30/30, galvanised and securely fixed rubber mat, 1 m
Produktbeschreibung
SPORTFIX Sand trap channel made of modified PP, black, pre-shaped connection possibility DN/OD 110, with metal profile on one side for easy installation of running track, with mesh cover MW 30/30 galvanised, with safely fixed rubber mat, walkable, L/W/H 1000 (2x500)x500x163 mm, item no. 7740
Verpackungseinheit
-
