Article No. 10807
SPORTFIX Slotted Channels
Type 010, with turf edge, straight, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

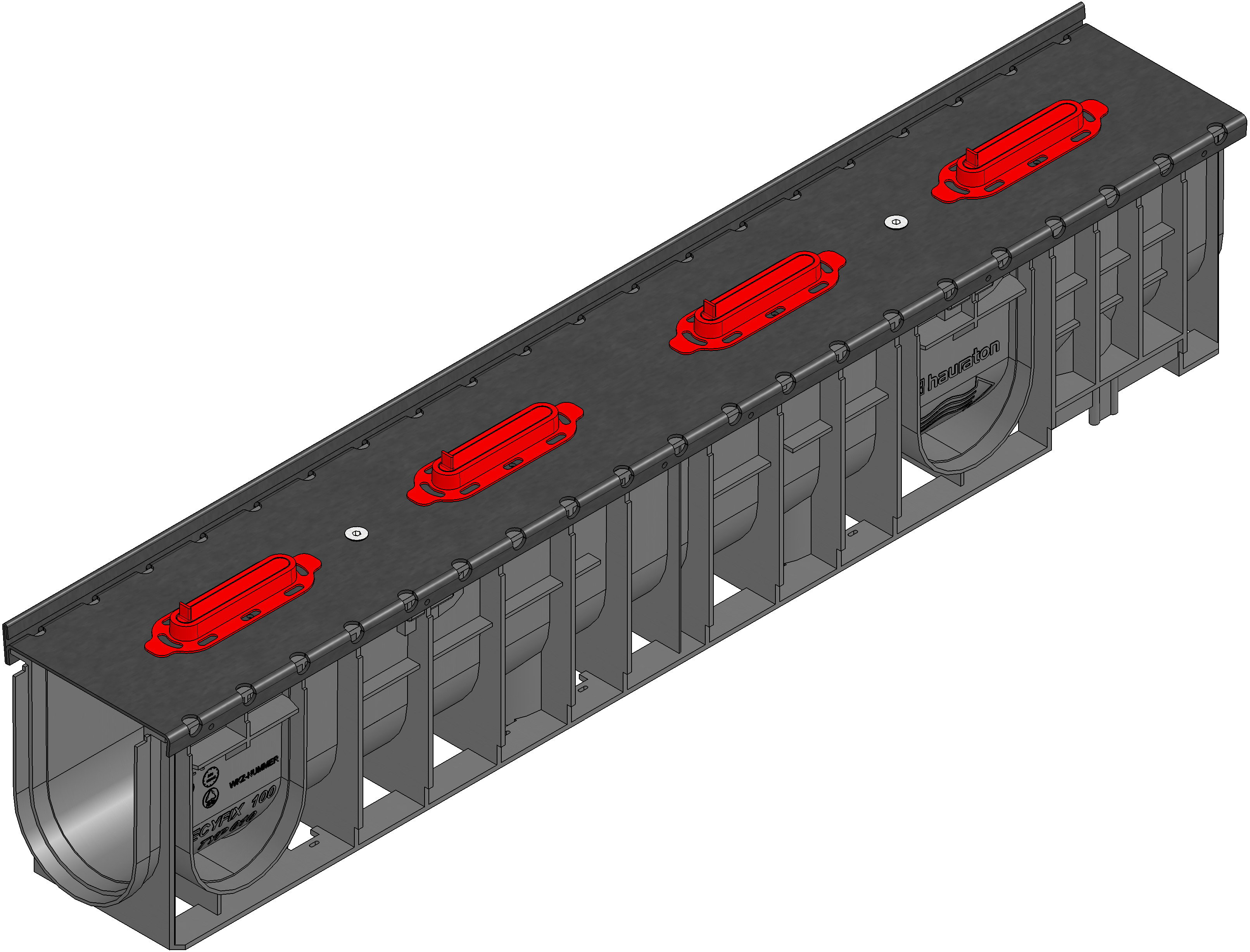

Product image

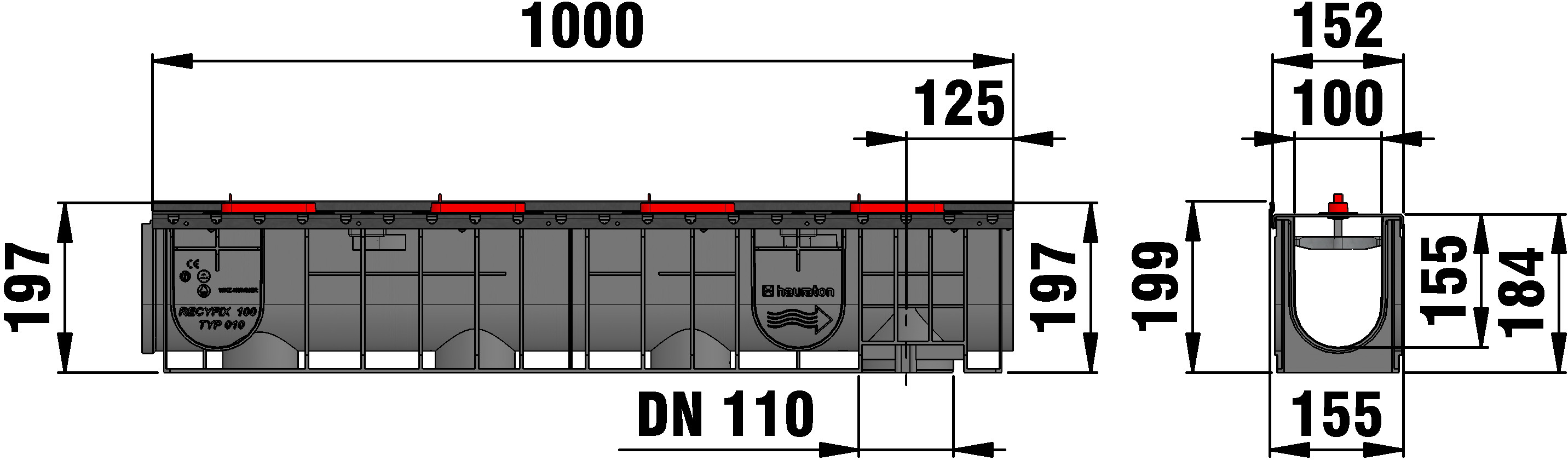

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10807
Length
1000 mm
Width
155 mm
Height
199 mm
Weight
5.79 kg
Height of angle housing
15 mm
Nominal size
100
Internal channel cross-section
-
Fall
-
Fixing type
Loose blatant
Type according to DIN EN 1433
M
Regulations
EN 1433 + IAKS, DIN 19580
Sales text
SPORTFIX Slotted channel 100 type 010 with one-sided turf edge, straight, 1 m
Product description
SPORTFIX Slotted channel 100 type 010 made of recycled polypropylene, black, with integrated slotted cover with one-sided turf edge as synthetic surface boundary, KTL-coated, with EPDM inserts, brick-red, for an easy installation of running track surfaces, LxWxH 1000x155x199 mm, item no. 10807
Packaging unit
35
Declaration of Performance
Tender Texts
Installation example
running track class A 15,
running track / playing field class A 15,
running track / playing field class A 15,
running track class A 15,
running track class B 125,
running track / playing field class B 125,
