Article No. 7530
SPORTFIX STANDARD 100
Type 010 with slotted cover SW 75/9 mm, galvanised, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

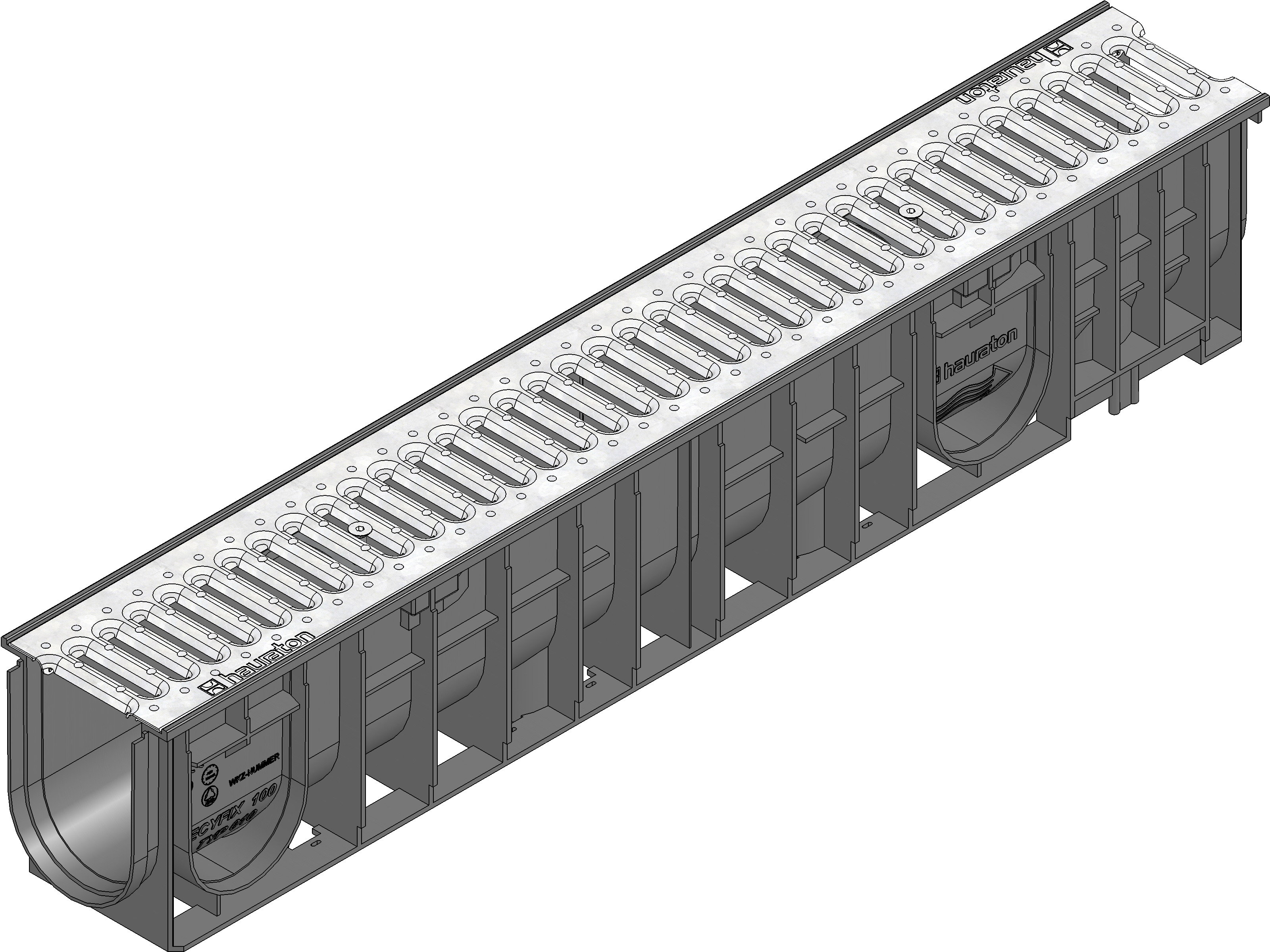

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
7530
Length
1000 mm
Width
150 mm
Height
185 mm
Einlegetiefe
3 mm
Weight
4.58 kg
Material
Galvanised steel, recycled polypropylene, RECYFIX Material (recycled PA), strip galvanized steel
Intake cross-section
266.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material cover
strip galvanized steel
Regulations
EN 1433, EN 1433 + IAKS, DIN 19580
Sales text
SPORTFIX STANDARD 100 Channel type 010 with slotted cover SW 75/9 mm, galvanised, trafficable, locked, 1 m
Product description
SPORTFIX STANDARD 100 type 010 - Channel body made of recycled polypropylene, according to DIN 19580/EN 1433, with vertical connection possibility DN/OD 110, with slotted cover SW 75/9 mm, galvanised, trafficable, overlying, locked, LxWxH 1000x150x185 mm , item no. 7530
Packaging unit
42
